PVC and PU conveyor belt guides

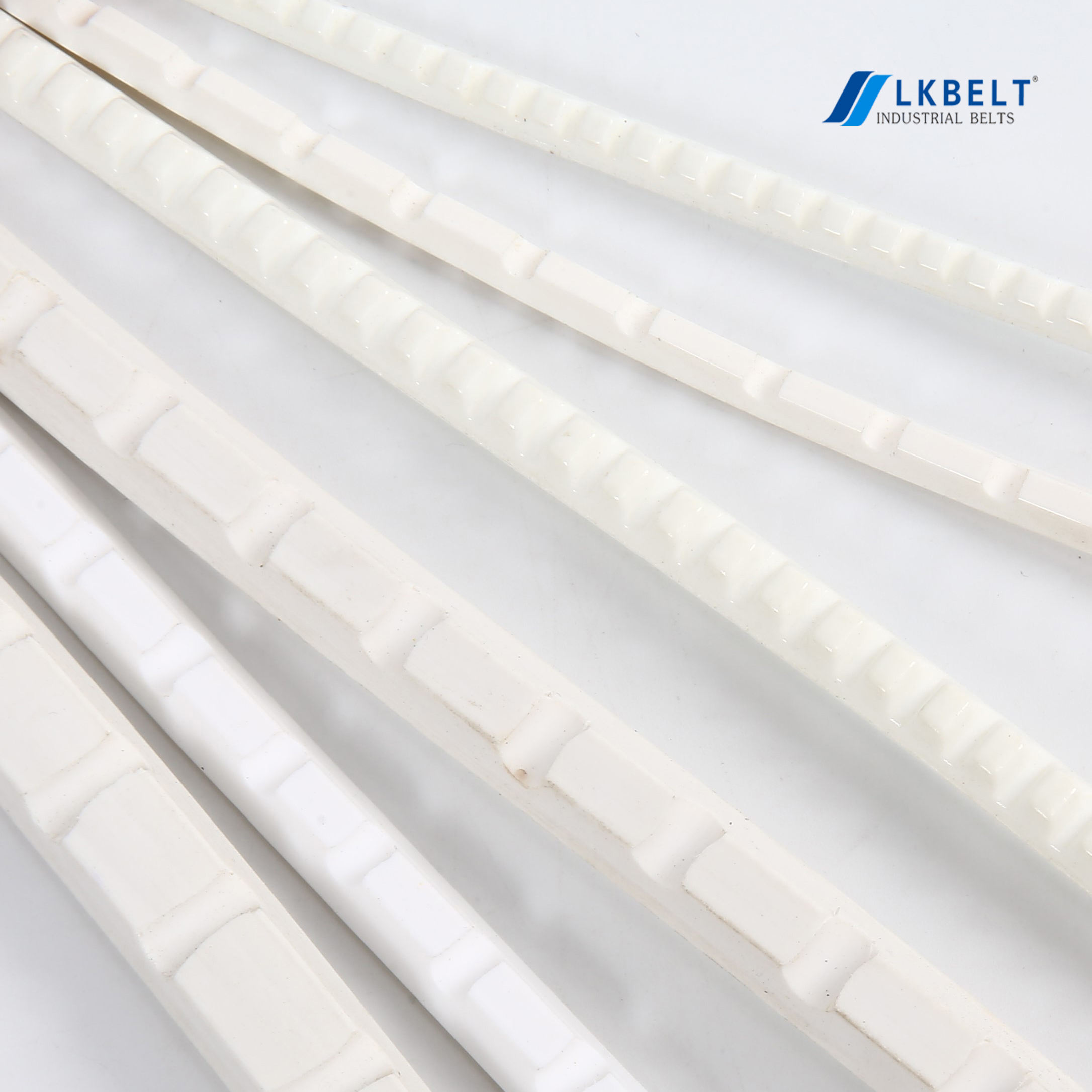

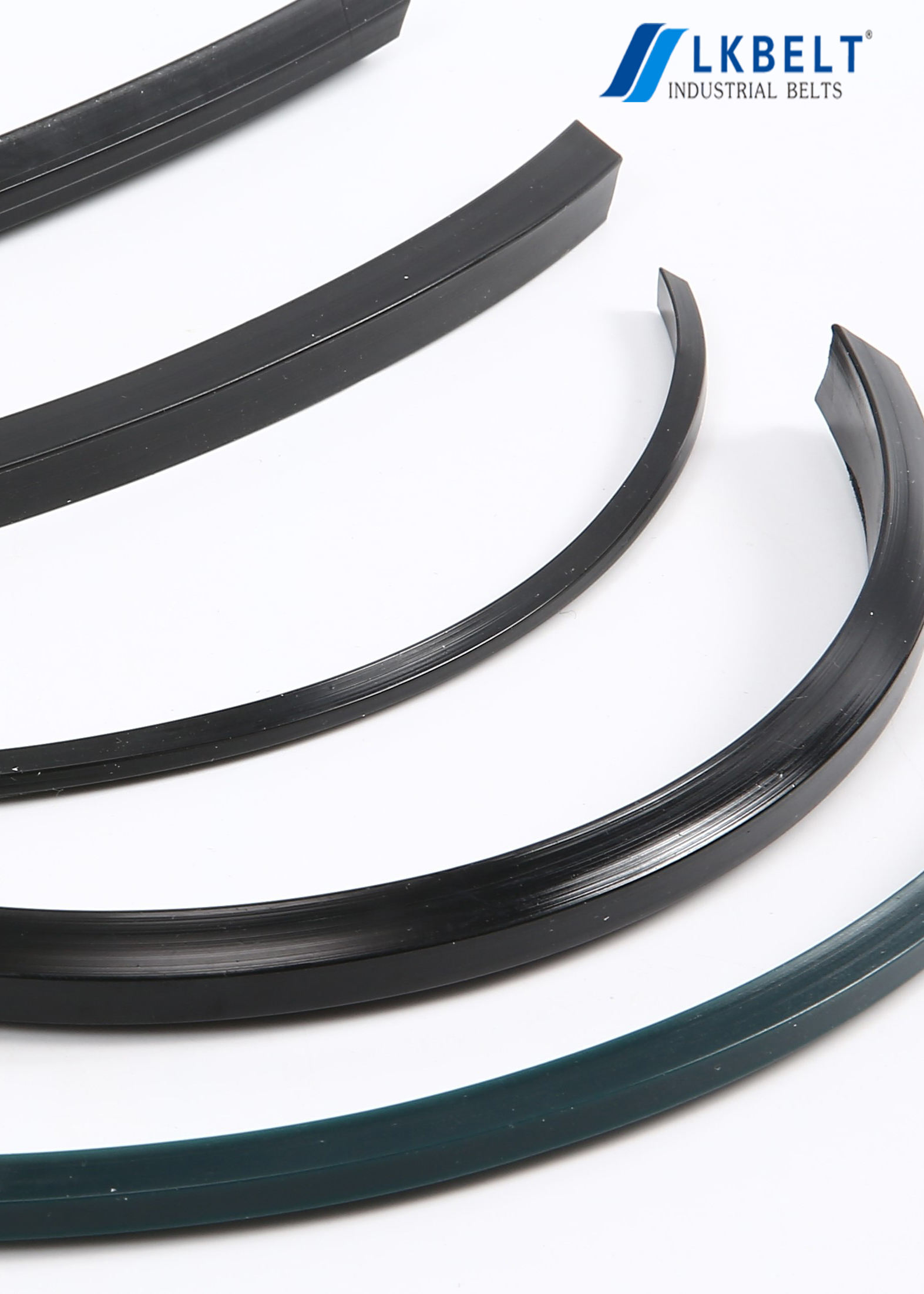

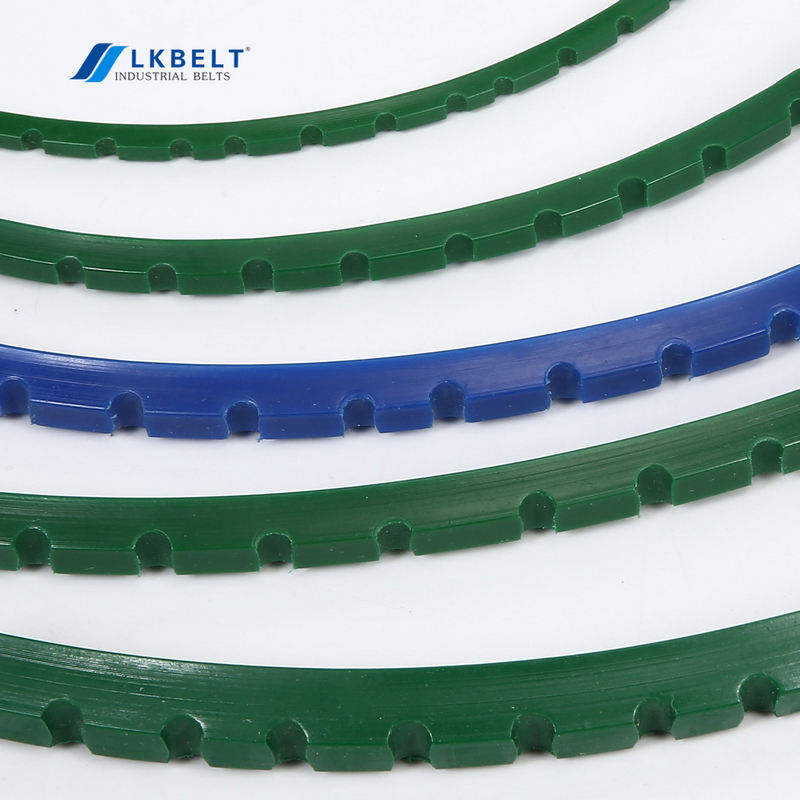

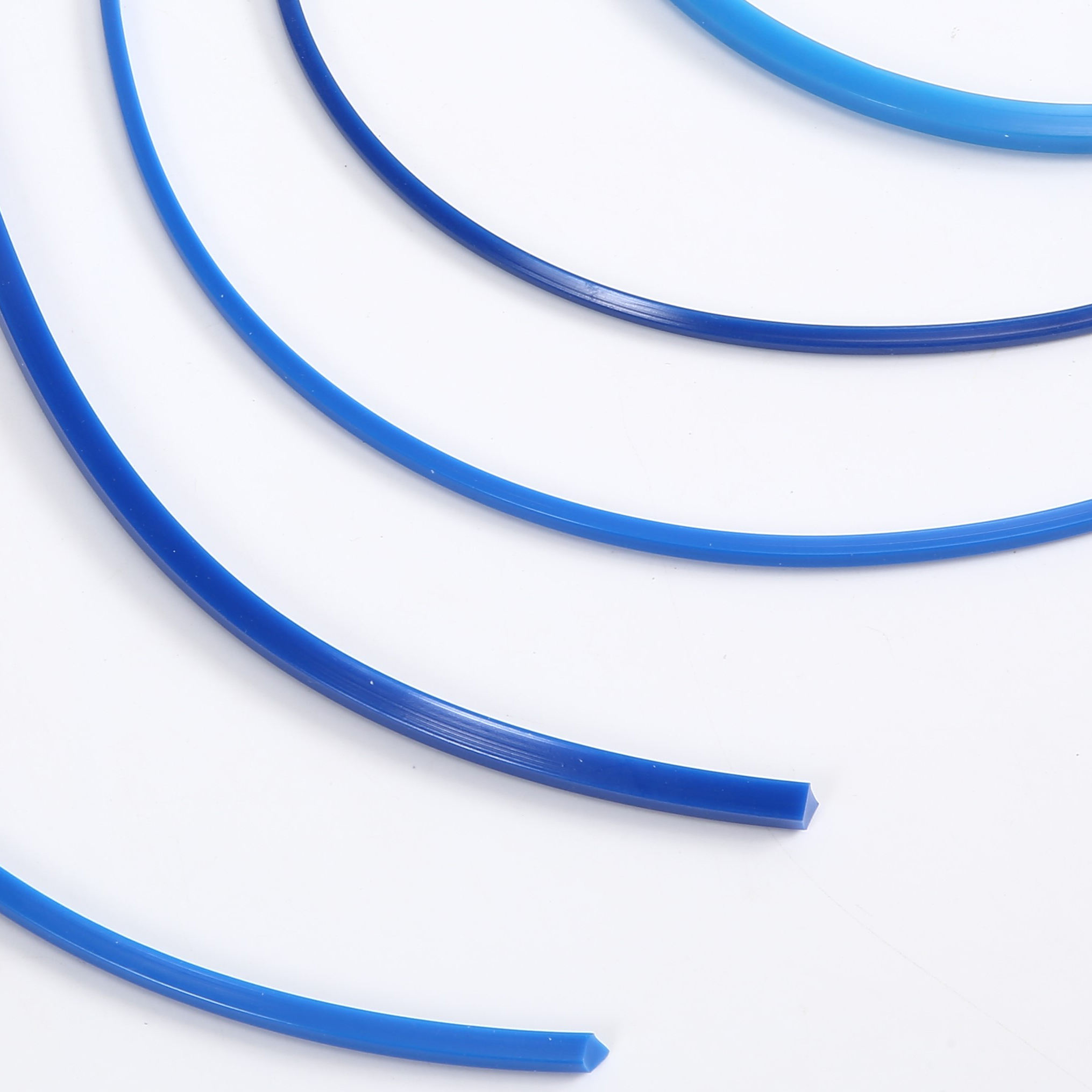

Choose a guide profile to suit the belt construction and conveyor groove arrangement. The photographs show plain and notched profiles in several colours. Provide a cross-section drawing or a sample when requesting a replacement.
| Item | Details |
|---|---|
| Product | Conveyor belt guide profiles |
| Material options | PVC or PU |
| Profile options shown | Plain and notched |
| Colours shown | Green, blue, white and black |
| Customisation | Colour to order |
Include the profile dimensions, material, colour and required length.
Guide profile options
Profile dimensions and installation
| Item | Details |
|---|---|
| Cross-section | Base width, top width, height and profile shape, with a dimensioned sketch |
| Plain or notched profile | Required form; for notched profiles, include notch spacing and depth |
| Material and colour | PVC or PU, required colour and any existing material reference |
| Belt construction | Belt material, thickness and the surface to which the guide will be attached |
| Guide position | Number of guides, distance from belt edges and spacing between guides |
| Pulley and groove arrangement | Pulley diameters, groove dimensions, support bed and belt route |
| Supply quantity | Required lengths and quantity, or finished belt dimensions for an assembly |
Matching the guide to the conveyor
The guide cross-section and position should be considered together with the pulley and support grooves. Include a drawing showing the guide location across the belt width, especially where more than one guide is used.
For a replacement, send photographs of the existing profile, its attachment to the belt and any worn areas. Include the smallest pulley diameter and any reverse bending in the belt route when discussing plain or notched profiles.
Material and colour selection
Specify the belt material and intended attachment method with the guide enquiry. Colour alone does not identify PVC or PU. For a custom colour, supply a colour reference or sample together with the required profile and quantity.
Request conveyor belt guides
Send the cross-section drawing, material, colour, required lengths and quantity. If guides are required as part of a finished belt, include the belt dimensions and a drawing of the guide positions.
