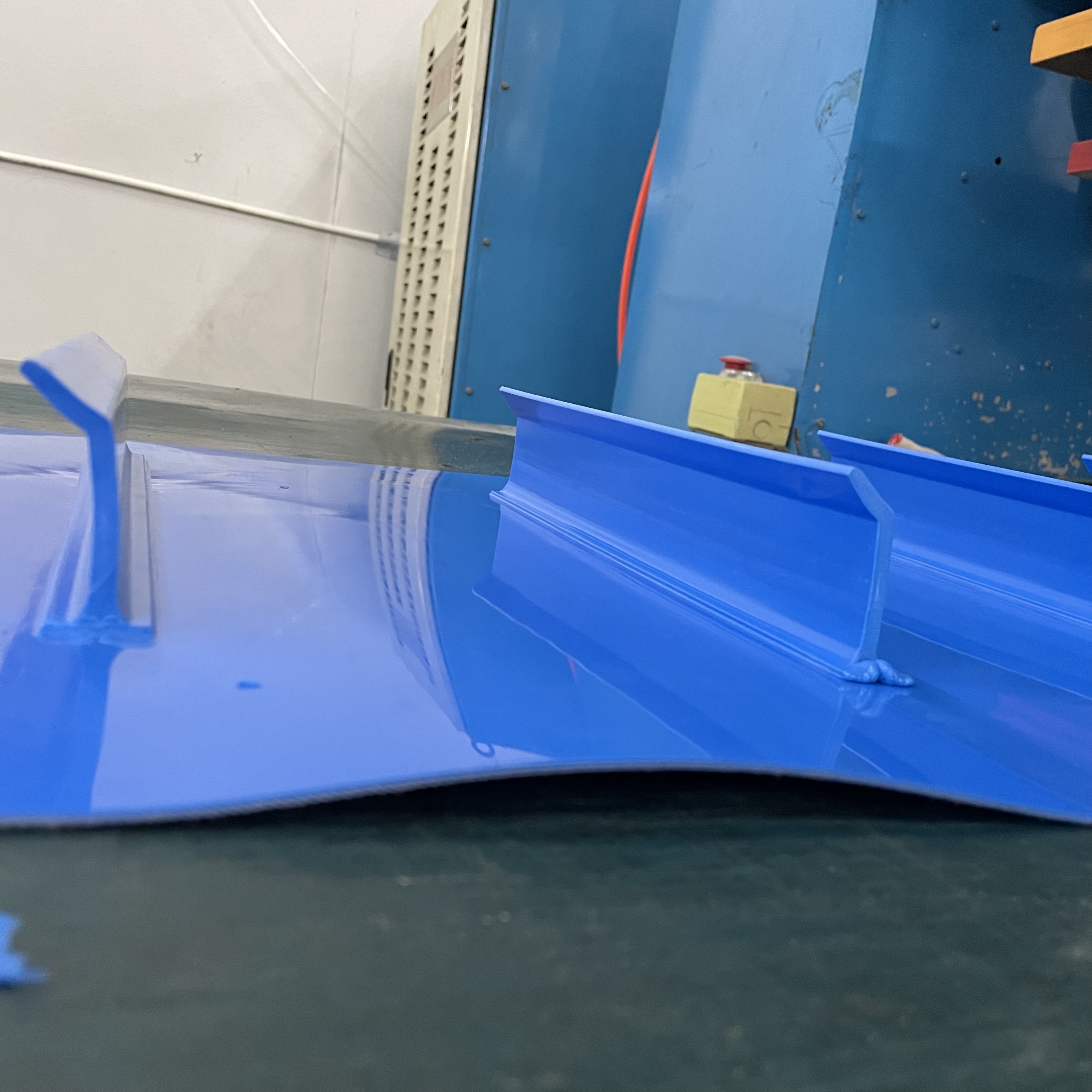

PVC and PU conveyor belt cleats
PVC and PU cleats are offered for conveyor belt assemblies, with custom height options. Select the cleat profile and spacing together with the conveyed product, belt construction and conveyor layout.
| Item | Details |
|---|---|
| Product | Conveyor belt cleats |
| Material options | PVC or PU |
| Specification references | T20, T30, T40, T50, T60, T70, T80, T90, T100 and T150 |
| Customisation | Cleat height to order |
Send the required profile, dimensions, material and quantity.
Cleat profiles and belt assemblies
Cleat dimensions and layout
| Item | Details |
|---|---|
| Profile dimensions | Height, base width, wall thickness and cleat length, with a cross-section drawing |
| Material and belt | PVC or PU cleat, base-belt material and belt thickness |
| Spacing and position | Cleat pitch, orientation, distance from belt edges and any gaps |
| Conveyed product | Product dimensions, weight, surface condition and loading method |
| Conveyor arrangement | Incline, belt speed, pulley diameters and return-side clearance |
| Sidewalls and guides | Required sidewalls or guides, with dimensions and clearance |
| Supply requirements | Loose cleats or a finished belt assembly, required length and quantity |
Selecting a cleat arrangement
Cleat height and spacing should suit the product and conveyor incline. Include the loading and discharge arrangement when specifying a new assembly. For a replacement, provide the existing cleat dimensions and photographs showing the belt in position.
The cleat base and attachment method need to suit the belt material and pulley arrangement. Show any sidewalls, guides and return rollers on the drawing so their clearances can be considered together.
Custom height and profile enquiries
State the specification reference and the dimensions you require, including tolerances. For a custom height, include a sketch or sample and explain the conveying duty. Specify whether the enquiry is for separate cleats or cleats fitted to a finished belt.
Request PVC or PU cleats
Send the profile drawing, material, height, cleat length and quantity. For a belt assembly, also include the belt width and length, cleat spacing, pulley diameters and any sidewall requirements.
