Belts for Textile Machinery
Start with the original belt’s job in the machine. For TC25-LK, compare the green working face, black fabric underside and finished loop geometry with the existing conveyor position.
Identify the textile material and exact belt position
Textile equipment may use separate components for conveying and for power transmission. Identify which belt is being replaced, what it contacts and how the machine moves it.

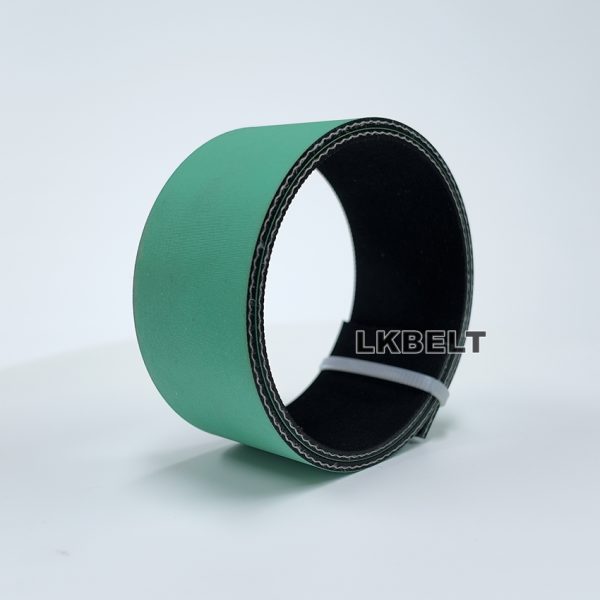

The TC25-LK product listing shows a polyester conveyor belt for textile machinery. Its green outer face and black fabric underside are visual references; final construction and fit should follow the original machine specification.
Locate the station
Give the machine model and process position where the belt runs.
Describe the contact
State the textile material, working face, lint or dust exposure and any handling concern.
Measure the belt
Provide finished loop length, width, thickness and pulley/support arrangement.
Set acceptance
List any electrical or surface requirement with its test method.
Distinguish conveying from transmission
| Machine position | Belt duty | Information to confirm |
|---|---|---|
| Product-contact conveying | Moves textile material through the defined machine position. | Material contact, working face, transfer path, surface marks and cleaning. |
| Belt underside and support | Runs over pulleys or a supporting bed. | Fabric underside, pulley size, support geometry and tensioning travel. |
| Separate power transmission | Drives machine components without necessarily touching material. | Original drive belt marking and pulley arrangement; specify independently from the conveyor belt. |
Connect the application to the exact belt
TC25-LK is a named polyester conveyor belt listed for textile machinery. Match its shown surfaces and the finished dimensions to the replacement position; do not transfer specifications from related flat-belt tables to this model.
Document the conditions affecting the belt
Material contact
State the fibre, fabric or item handled and the allowable surface condition.
Lint and cleaning
Describe deposits, cleaning method and how often the machine is serviced.
Electrical requirement
If static control matters, provide the target, test method and grounding arrangement for the machine.
Drive and support
Record pulley diameters, belt bed, centre distance and tensioning adjustment.
Record the finished reference and its environment
| Detail | Information to provide |
|---|---|
| Machine | Make, model and station name |
| Belt reference | Existing marking, working-face and underside photographs |
| Finished loop | Width, circumference/loop length and thickness, with units |
| Installation | Pulley and support geometry, joint, access and tension travel |
| Request | Quantity, destination and any surface/electrical acceptance criterion |
Compare the proposed belt with the original
Confirm surfaces
Check the working face, underside and edge against the approved sample.
Confirm geometry
Verify the finished loop size, joint and fit on the machine.
Review operation
Use the line’s normal trial to check tracking, material handling and any stated acceptance criterion.
Textile machinery belt questions
Does the TC25-LK title prove an electrical resistance value?
No value is stated for this finished belt. Send the target and test method if static control is required.
Can a power drive belt replace the conveyor belt?
They have different jobs. Identify the exact installed position and original construction first.
Which photographs help with a replacement?
Show the machine position, working face, underside, edge, joint and belt marking.
Send the machine position and belt reference
Include the textile-machine model, product being handled, TC25-LK or other original marking, photographs of both belt faces, finished dimensions and quantity. Add any electrical or cleaning requirement used at the station.
Send your drawing or original belt reference
Include the quantity, delivery destination and any sample approval requirements. Photographs of the belt and installed position help our team review the construction.
