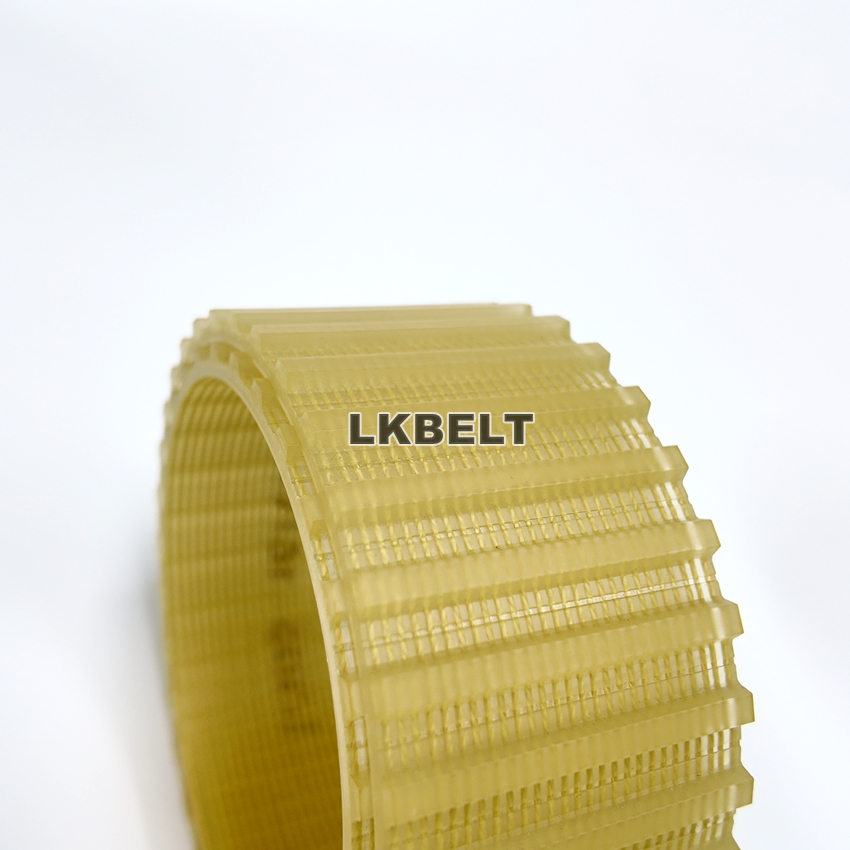

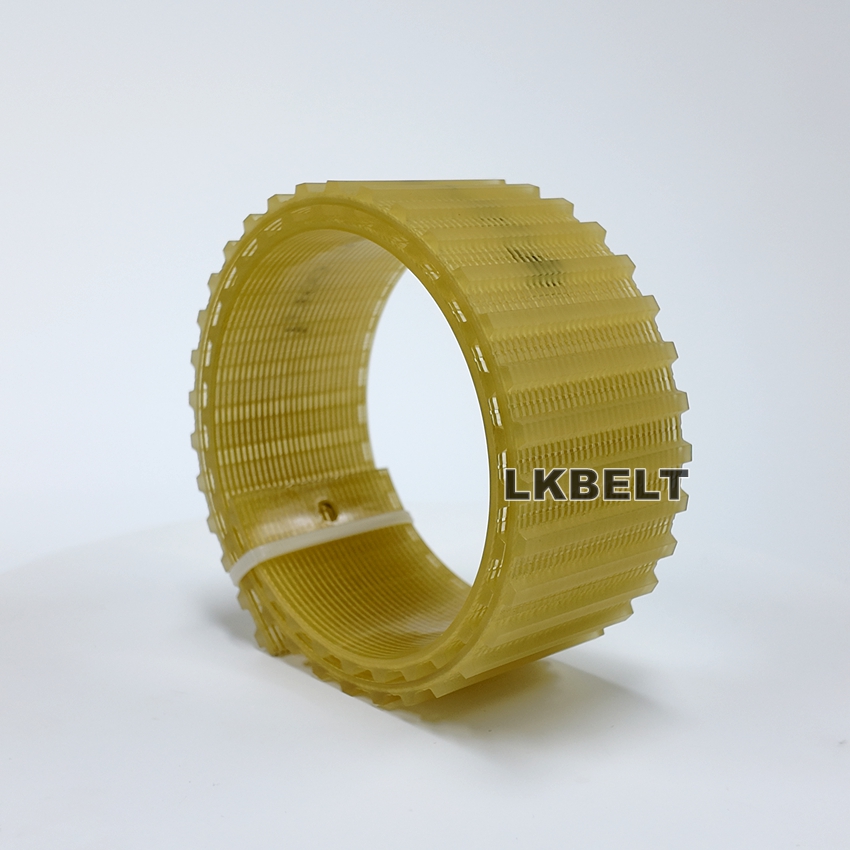

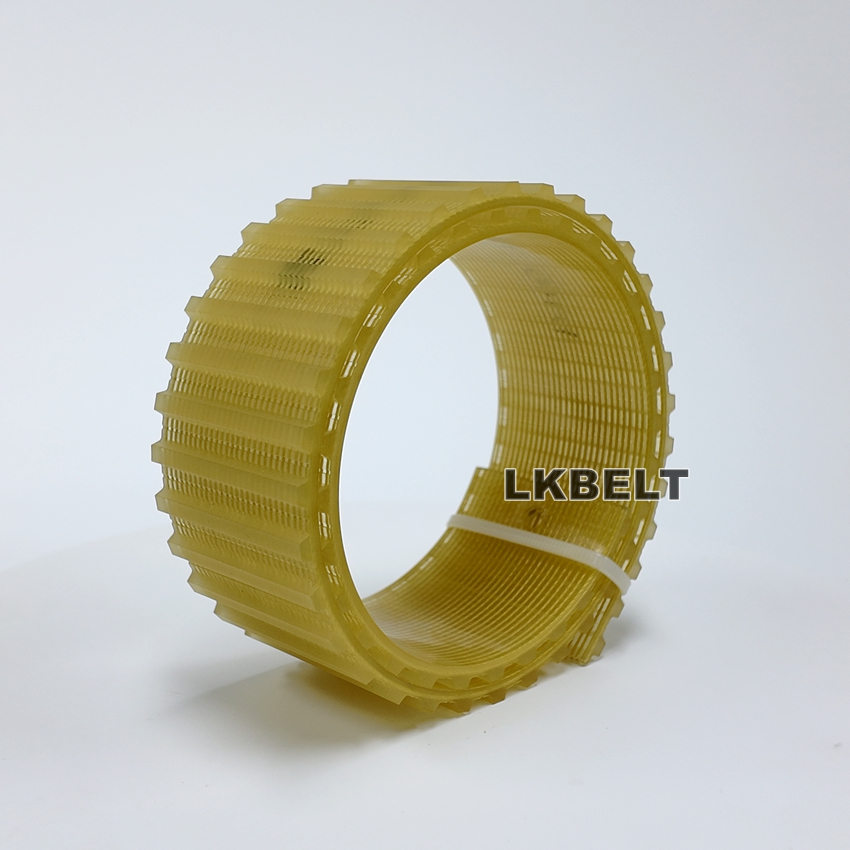

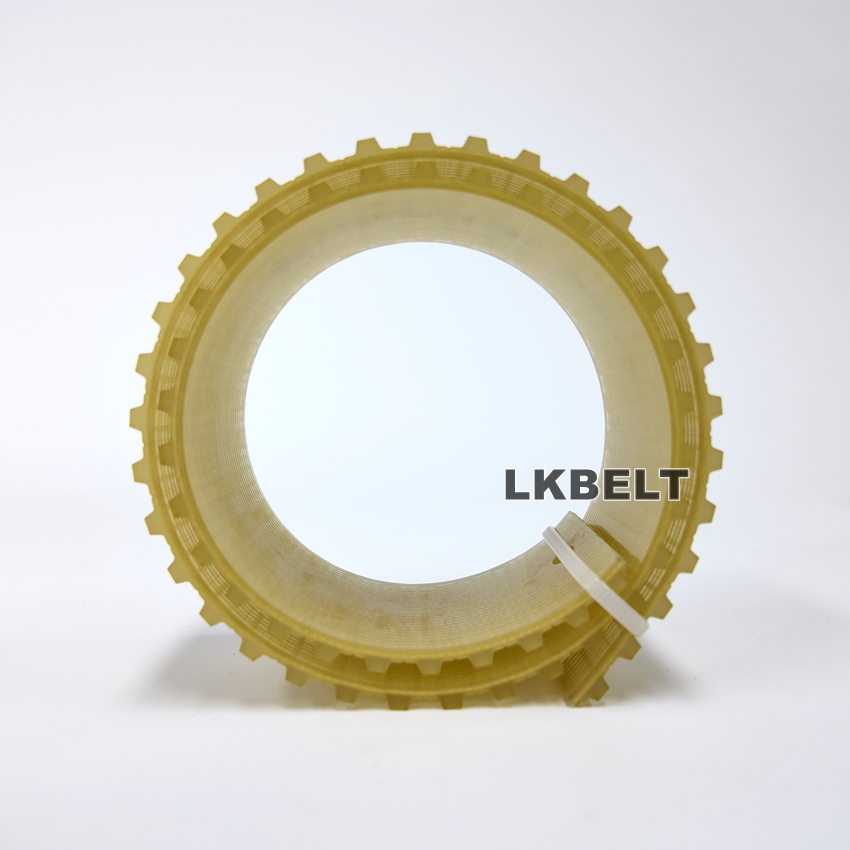

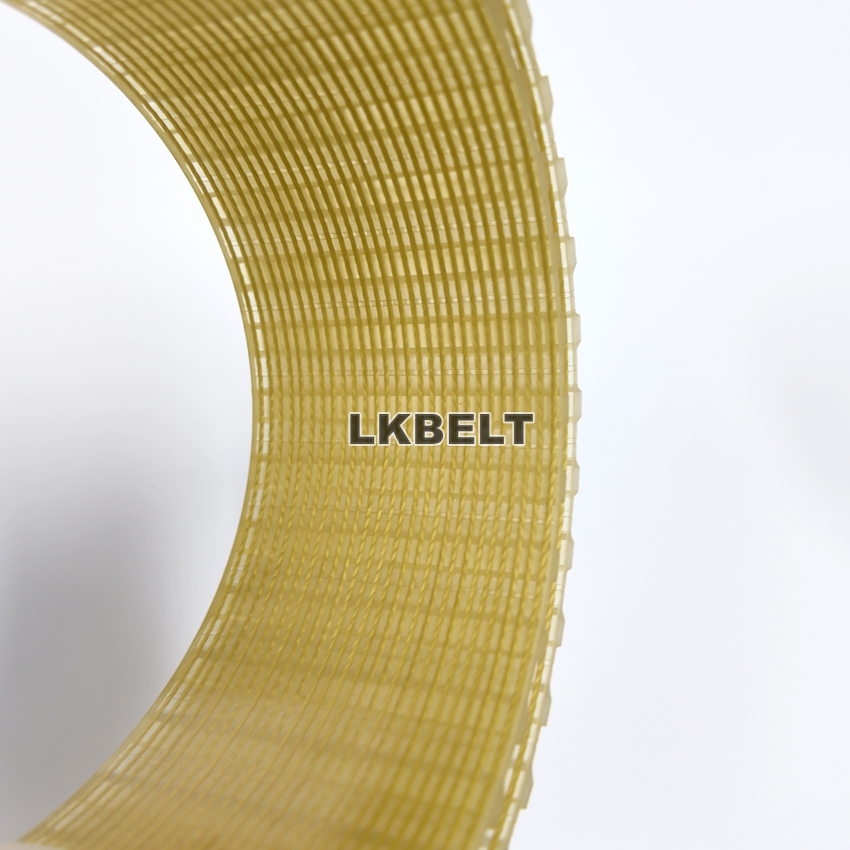

T10 timing belt with Kevlar cord
This T10 PU timing belt is offered with Kevlar cord reinforcement. For a replacement or new machine, send us the required belt width, finished length or tooth count, pulley details, and any backing or surface requirements. The T10 dimensions below are profile references; the finished belt and cord construction should be matched to your application.
| Item | T10 profile dimensions |
|---|---|
| Profile | T10 |
| Cord | Kevlar |
| Pitch | 10 mm |
| Tooth thickness | 2.5 mm |
| Belt thickness, including teeth | 4.5 mm |
For pulley matching, please send us a drawing or a clear photo of your existing belt and pulley.
What to send for a quote
Share the belt marking or machine model, belt width, finished length or tooth count, pulley profile, and photographs of the existing belt. Include your cord requirement, operating load and conditions, and any required backing or surface treatment so we can discuss the finished construction with you.
Timing belt profile comparison
Compare the tooth profiles below, then share your pulley drawing or belt sample so we can discuss the finished belt dimensions.
| Profile | Pitch (mm) | Tooth thickness (mm) | Belt thickness including teeth (mm) |
|---|---|---|---|
| T2.5 | 2.5 | 0.7 | 1.6 |
| T5 | 5 | 1.2 | 2.2 |
| T10 | 10 | 2.5 | 4.5 |
| T20 | 20 | 5 | 8 |
| AT5 | 5 | 1.2 | 2.7 |
| AT10 | 10 | 2.5 | 4.5 |
| AT20 | 20 | 5 | 8 |
| H | 12.7 | 2.29 | 4.29 |
| XH | 22.225 | 6.35 | 11.2 |
| L | 9.525 | 1.91 | 3.61 |
| XL | 5.08 | 1.27 | 2.3 |
| 3M | 3 | 1.21 | 2.4 |
| 5M | 5 | 2.1 | 3.7 |
| 8M | 8 | 3.38 | 5.6 |
| 14M | 14 | 6.1 | 10 |
| S3M | 3 | 1.14 | 2.9 |
| S5M | 5 | 1.85 | 3.35 |
| S8M | 8 | 3.05 | 5.3 |
| S14M | 14 | 5.3 | 10.2 |
| RPP5M | 5 | 2.05 | 3.8 |
| RPP8M | 8 | 3.2 | 5.4 |
| RPP14M | 14 | 5.85 | 9.7 |
