White Silicone Coated PU Timing Belt

Category

White silicone-coated PU timing belt

This PU timing belt has a white silicone contact surface and a green tooth side. For a replacement, send the existing belt dimensions, pulley profile and details of the item being handled. Include the required covering thickness and operating conditions so we can discuss the construction for your machine.

Item Product details
Product type PU timing belt
Belt body Polyurethane (PU)
Outer covering White silicone
Tooth profile and pitch Match to your pulley drawing or belt sample
Width and finished length Specify in your inquiry

Share a belt sample or drawing, including any covering, guide or joint requirements.

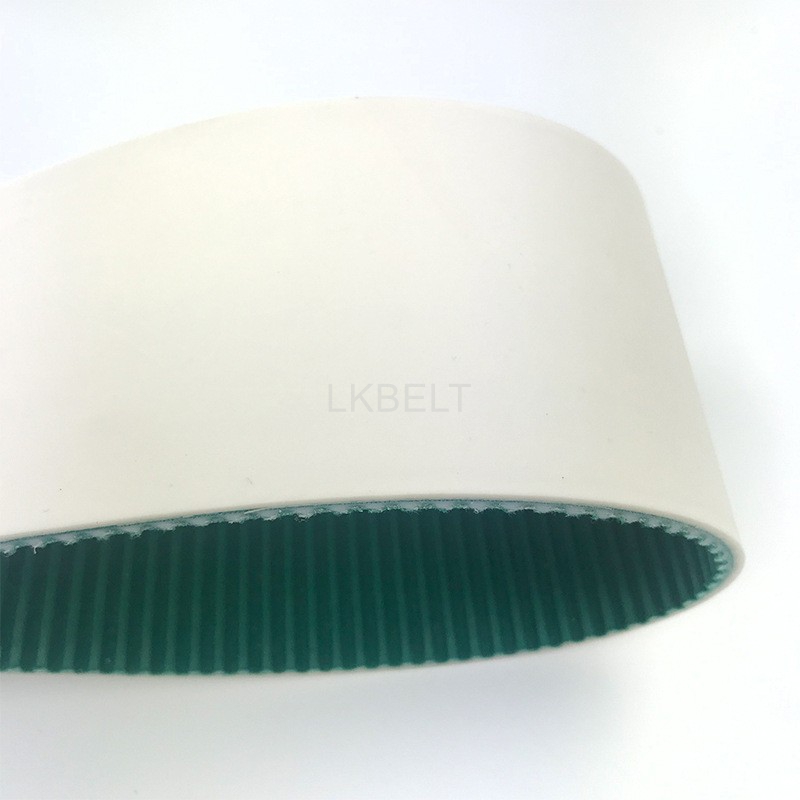

White-coated belt loop with a dark green toothed inner surface
White outer covering and green toothed inner face.

Construction & detail

A white contact surface. A toothed drive side.

The outer silicone covering and the PU timing belt perform different roles in the assembly. Describe the contact surface separately from the tooth profile so both can be matched to your machine.

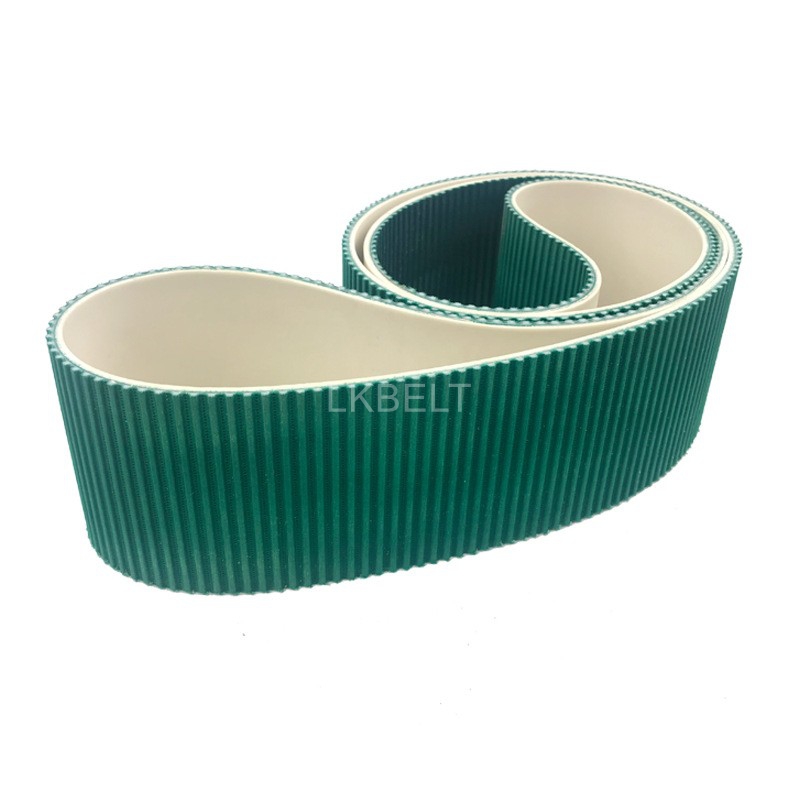

The photograph shows both faces and the edge of the belt. For a replacement, a side view helps distinguish the covering from the base belt. Include the finished overall thickness as well as the covering thickness on the drawing.

Contact surface

Specify the required finish, thickness and hardness where defined by your machine. Include the material and shape of the item touching the belt, and whether contact is continuous or intermittent.

Pulley and guidance

Provide the original belt designation or pulley drawing. If the assembly uses a guide, show its position, cross-section and matching groove rather than selecting from colour alone.

Finished assembly

State the finished width and loop length or tooth count. Show any covering interruption, joint position or edge clearance that matters at the machine’s transfer or contact point.

Define the covering and the complete belt

A dimensioned cross-section is particularly useful for a covered belt: label the base belt, added layer and total finished thickness separately. If the old covering is worn, include the intended dimensions from the drawing alongside the sample measurements.

Specification Information to provide
Belt dimensions Width, finished length or tooth count, and pulley profile
Silicone covering Thickness, hardness if specified, and the required contact-surface finish
Guide arrangement Guide position and cross-section, plus the matching pulley-groove drawing where a guide is required
Cord and joint Required tensile-cord material and joint or endless construction shown on your drawing
Operating conditions Item being handled, speed, load, working temperature and cleaning method

Questions about this belt

Can I order using only the colour of the covering?

Colour helps describe a sample, but it does not define the tooth profile, covering specification or finished dimensions. Send the belt marking, a side-view photograph and the machine requirements.

What information is needed about cleaning and temperature?

State the actual working temperature, cleaning products and cleaning method. Include any required contact-material documentation with the enquiry so the proposed construction can be assessed against that requirement.

Can a sample be used for a replacement?

Yes. Send photographs of both faces and the edge first, together with the required quantity and dimensions. A sample is especially useful where the covering, guide or joint is difficult to describe in a drawing.

Tooth-profile reference

Timing belt profile illustration

Use the illustration to discuss tooth shape with your pulley drawing or belt sample. The finished belt profile and dimensions are selected for your machine.

Timing belt tooth-profile illustration
Click the illustration for a larger view.
