White rubber belt for furniture edge-banding machines
This edge-banding machine belt is supplied for furniture and woodworking equipment. The product photograph shows a white belt with a continuous contact surface. Select the finished length, cross-section and contact covering to suit the machine’s pulleys, guide arrangement and workpiece.
| Item | Details |
|---|---|
| Colour | White |
| Material | Rubber |
| Application | Furniture edge-banding equipment |
| Length range | 3 to 28 m |
| Contact-cover hardness | Shore A 50–80, according to the selected covering |
| Cross-section options | B–B and C–C; specify the machine drawing |
Send the machine model, belt dimensions and cross-section to request a quote.
Contact covering and belt construction
The contact covering and the triangular underside profile are formed together by vulcanization. The belt is described as a continuous, joint-free construction. The contact covering is selected to suit the panel surface and the feeding arrangement.
Natural-rubber contact coverings are listed with Shore A 50–80 hardness options; white or grey coverings can be discussed for the application. Specify the required colour and hardness rather than selecting only from the product photograph.

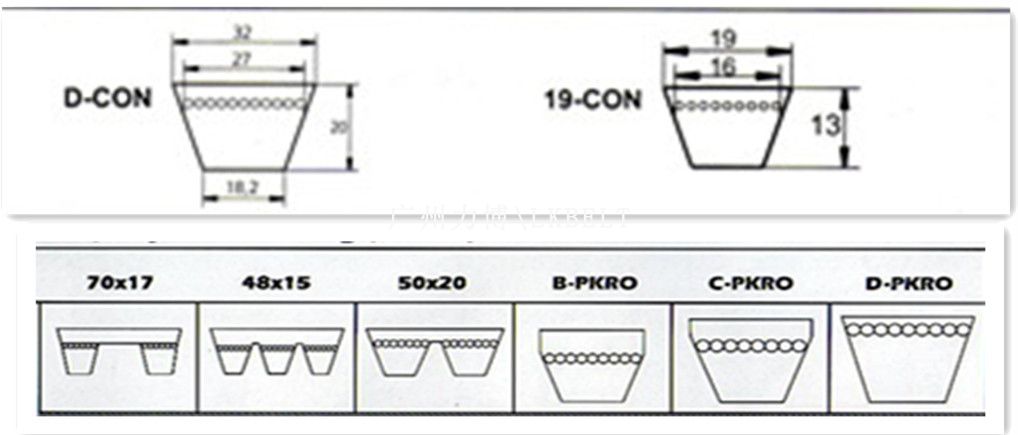

Cross-section reference
Compare the top width, underside profile and overall height against the existing belt or machine drawing. The profiles below are selection references; they do not establish compatibility with every edge-banding machine.
Machine fit and replacement dimensions
| Item | Details |
|---|---|
| Machine identification | Manufacturer, machine model and existing belt part number |
| Finished dimensions | Length reference, top width, overall height and dimensional tolerances |
| Underside profile | Profile dimensions, guide arrangement and pulley groove dimensions |
| Contact covering | Required colour, hardness, surface profile and covering thickness |
| Operating duty | Panel material and finish, feed speed, contact pressure and working temperature |
| Installation | Pulley diameters, available tensioning travel and quantity required |
For a HOMAG replacement enquiry, provide the exact machine model, belt part number and measured cross-section. Match these details to the installation before selecting the replacement belt.
Woodworking belt reference sheets
These sheets cover additional woodworking-belt constructions and profiles. Their figures apply to the named constructions in each sheet, rather than automatically to this white belt.

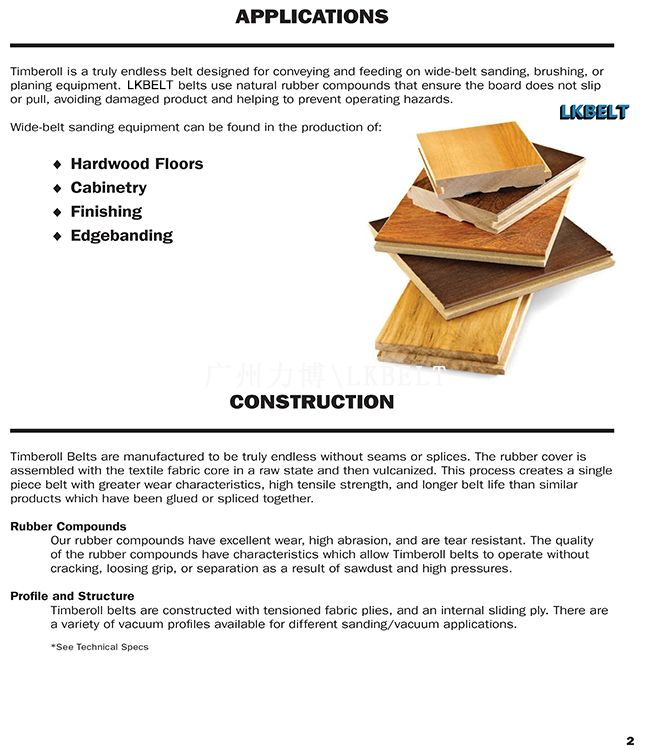

- Woodworking applications and construction guide

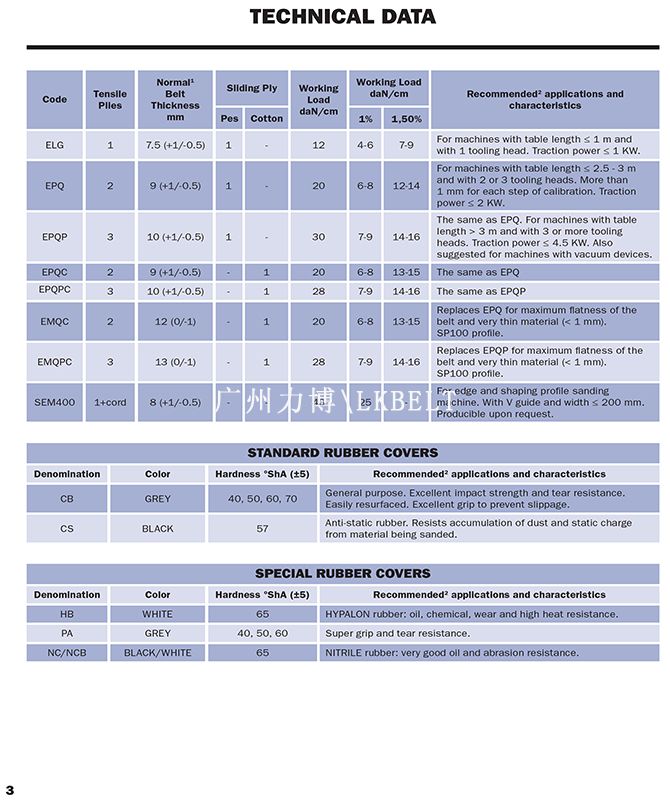

- Construction types and cover options

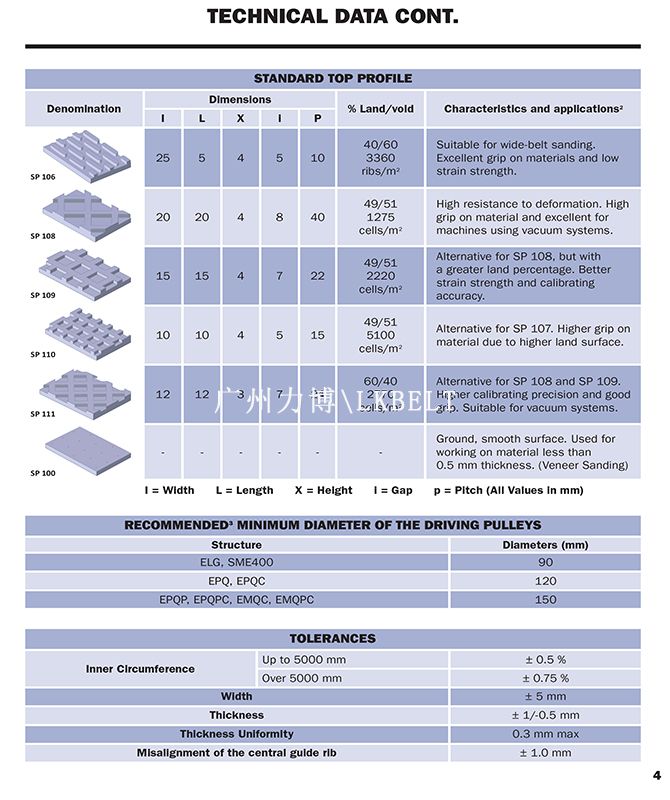

- Surface profiles, pulley sizes and tolerances

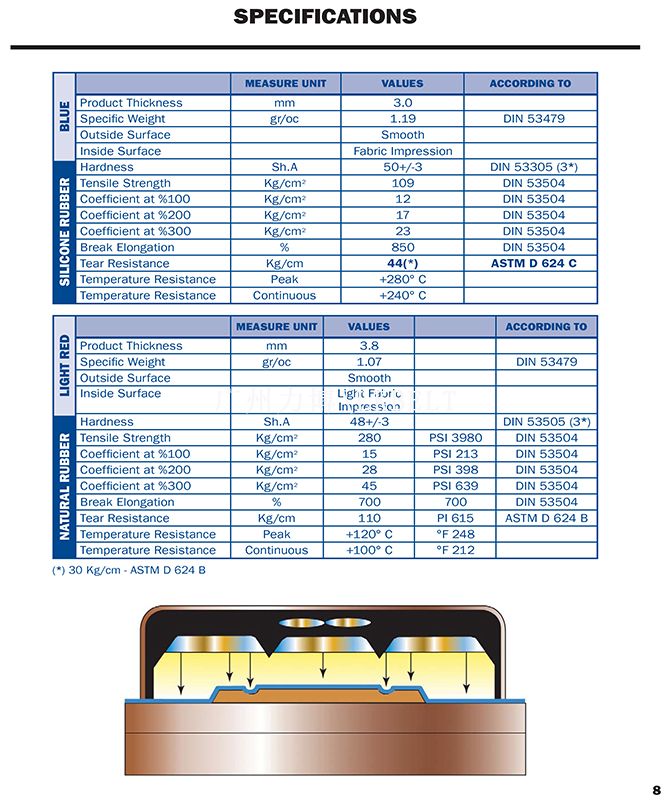

- Woodworking belt specification reference
Request a white edge-banding machine belt
Send the machine details, drawing or belt sample, quantity and required contact-cover finish. Include photographs of the top surface, underside profile and installation.
