Yellow-and-black rubber belt for furniture edge-banding machines

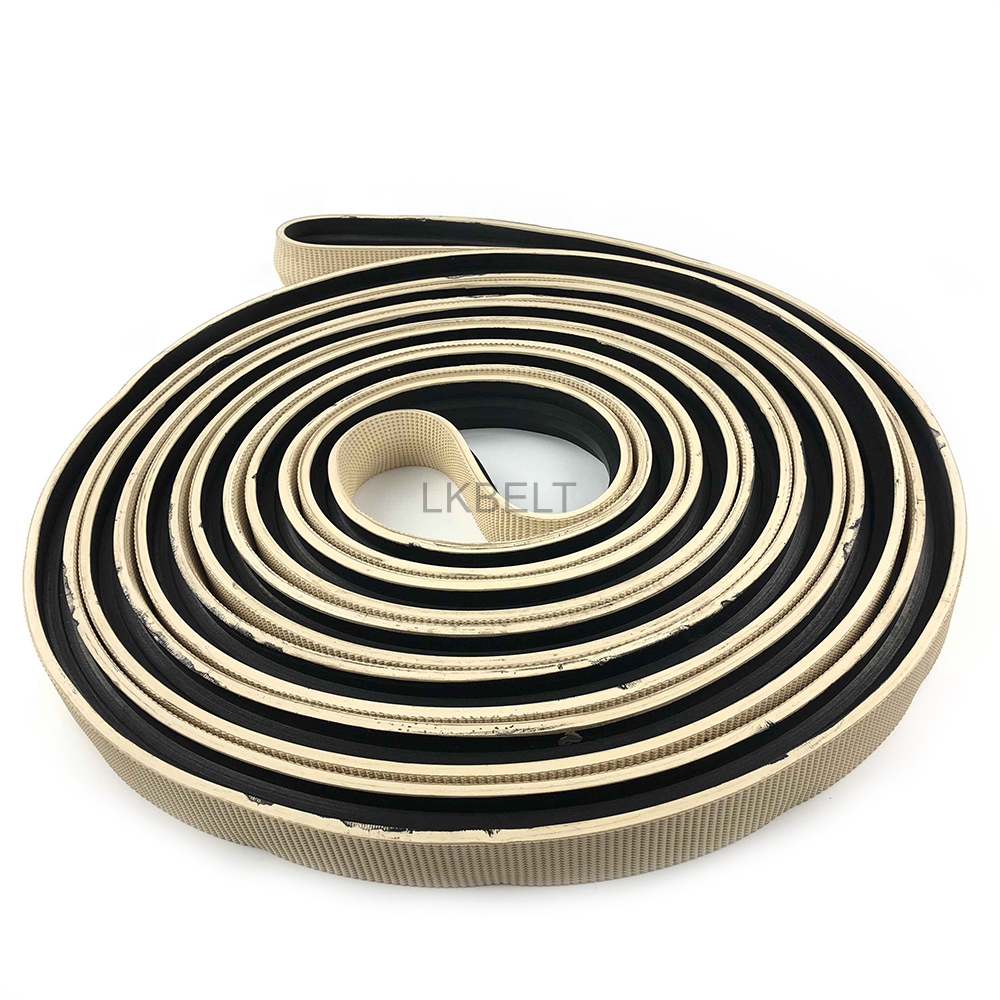

This edge-banding machine belt is supplied for furniture and woodworking equipment. Model 4 has a textured yellow contact surface and a black underside with a longitudinal guide profile. Select the finished length, cross-section and contact covering to suit the machine’s pulleys, guide arrangement and workpiece.
| Item | Details |
|---|---|
| Model | 4 |
| Colour | Yellow and black |
| Material | Rubber |
| Application | Furniture edge-banding equipment |
| Length range | 3 to 28 m |
| Contact-cover hardness | Shore A 50–80, according to the selected covering |
| Cross-section options | B–B and C–C; specify the machine drawing |
Send the machine model, belt dimensions and cross-section to request a quote.
Contact covering and belt construction
The contact covering and the triangular underside profile are formed together by vulcanization. The belt is described as a continuous, joint-free construction. The contact covering is selected to suit the panel surface and the feeding arrangement.
Natural-rubber contact coverings are listed with Shore A 50–80 hardness options; white or grey coverings can be discussed for the application. Specify the required colour and hardness rather than selecting only from the product photograph.

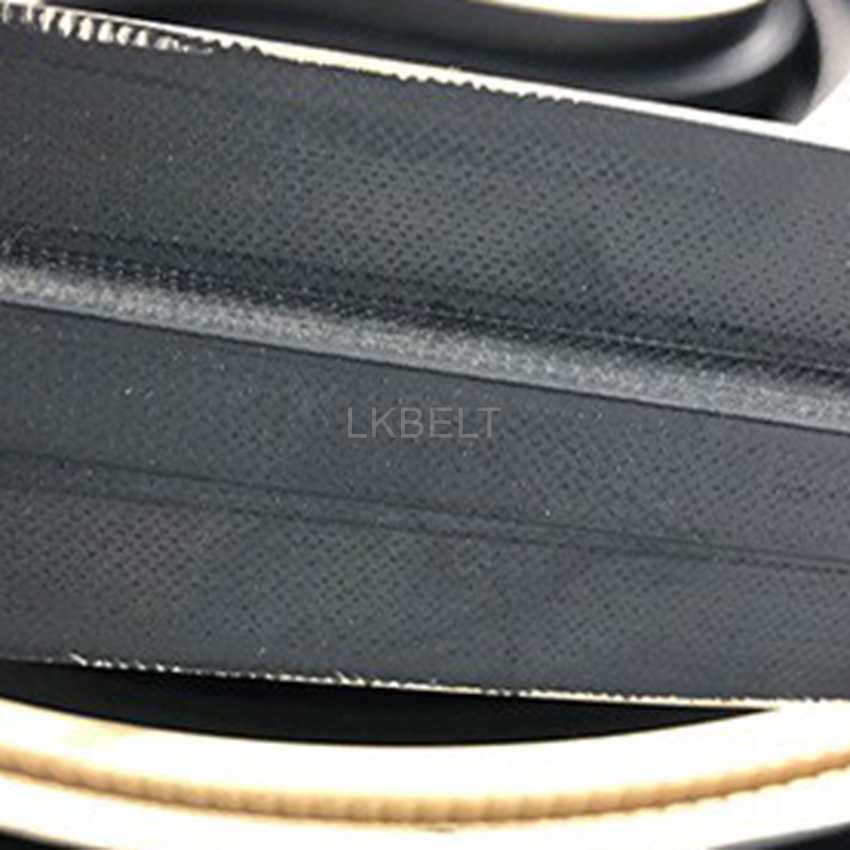

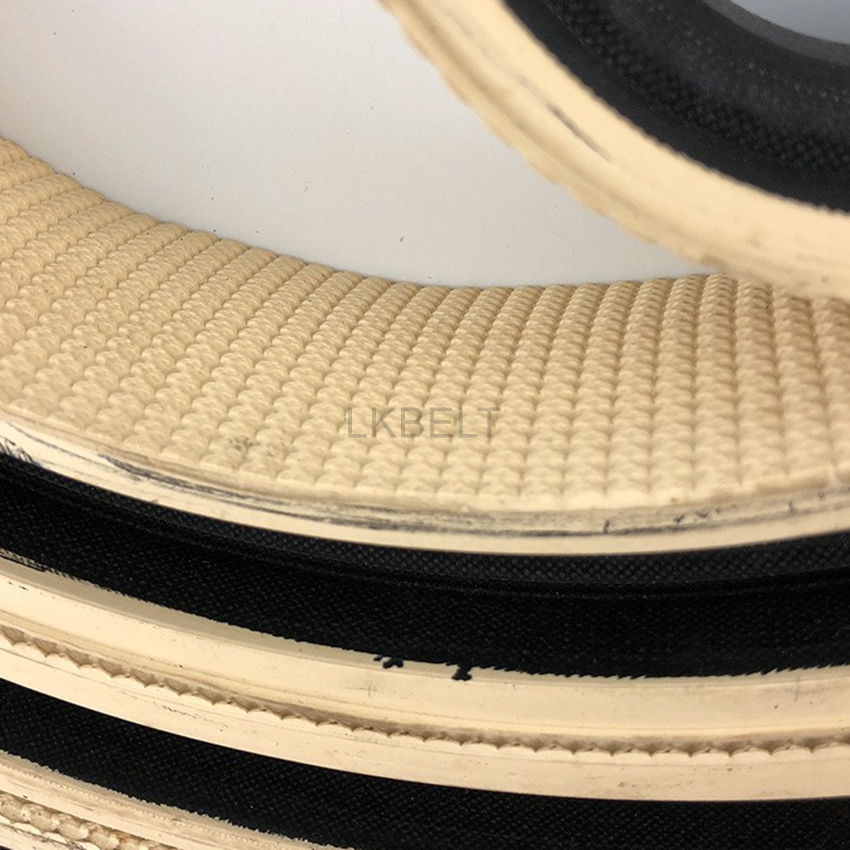

Surface and underside details
Machine fit and replacement dimensions
| Item | Details |
|---|---|
| Machine identification | Manufacturer, machine model and existing belt part number |
| Finished dimensions | Length reference, top width, overall height and dimensional tolerances |
| Underside profile | Profile dimensions, guide arrangement and pulley groove dimensions |
| Contact covering | Required colour, hardness, surface profile and covering thickness |
| Operating duty | Panel material and finish, feed speed, contact pressure and working temperature |
| Installation | Pulley diameters, available tensioning travel and quantity required |
For a HOMAG replacement enquiry, provide the exact machine model, belt part number and measured cross-section. Match these details to the installation before selecting the replacement belt.
Woodworking belt reference sheets
These sheets cover additional woodworking-belt constructions and profiles. Their figures apply to the named constructions in each sheet, rather than automatically to this yellow-and-black belt.
- Woodworking applications and construction guide
- Construction types and cover options
- Surface profiles, pulley sizes and tolerances
- Woodworking belt specification reference
Request a yellow-and-black edge-banding machine belt
Send the machine details, drawing or belt sample, quantity and required contact-cover finish. Include photographs of the top surface, underside profile and installation.
