FW-08 PVC conveyor belt

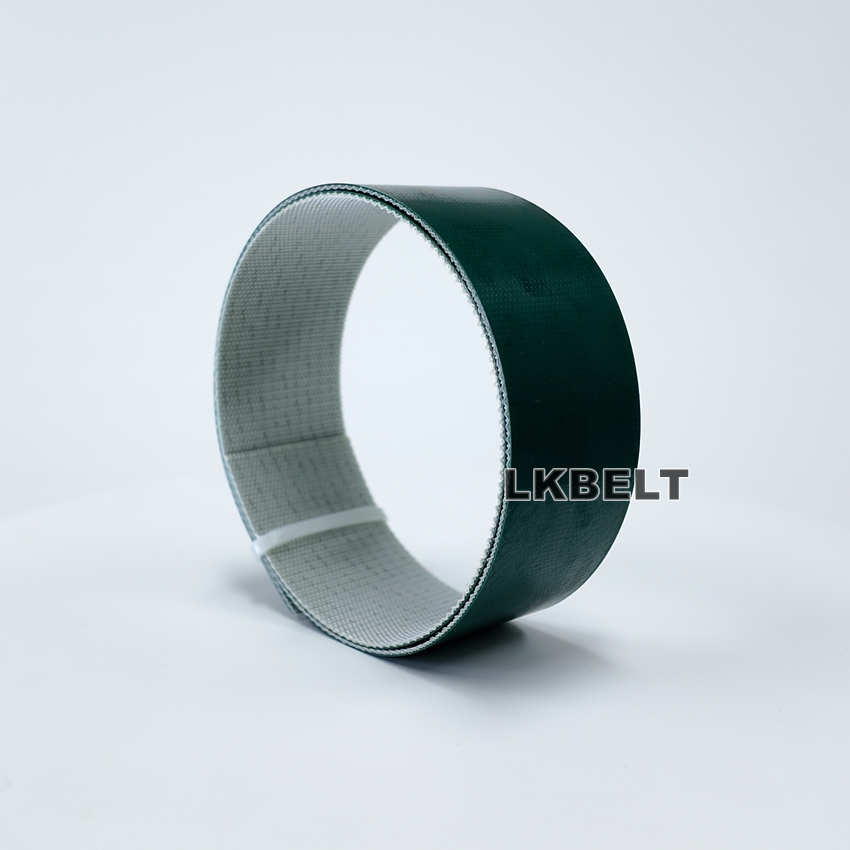

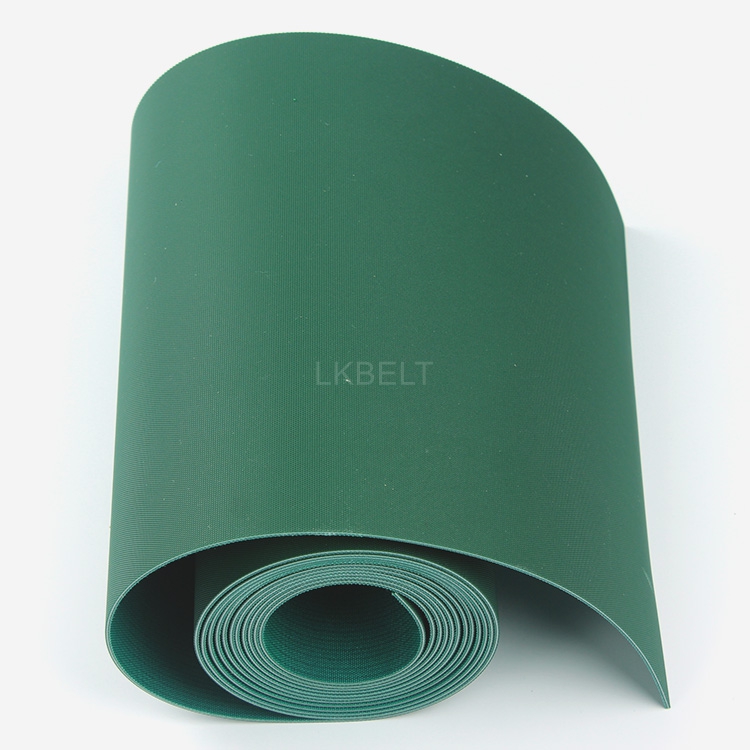

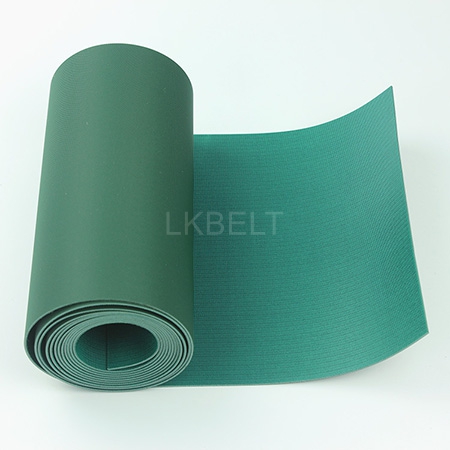

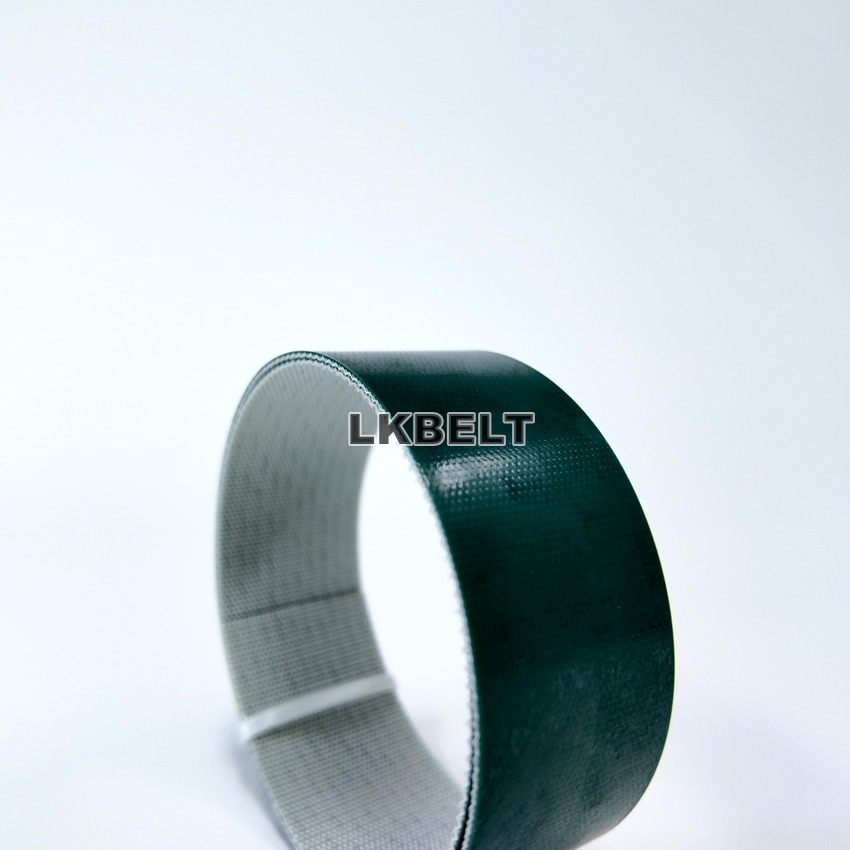

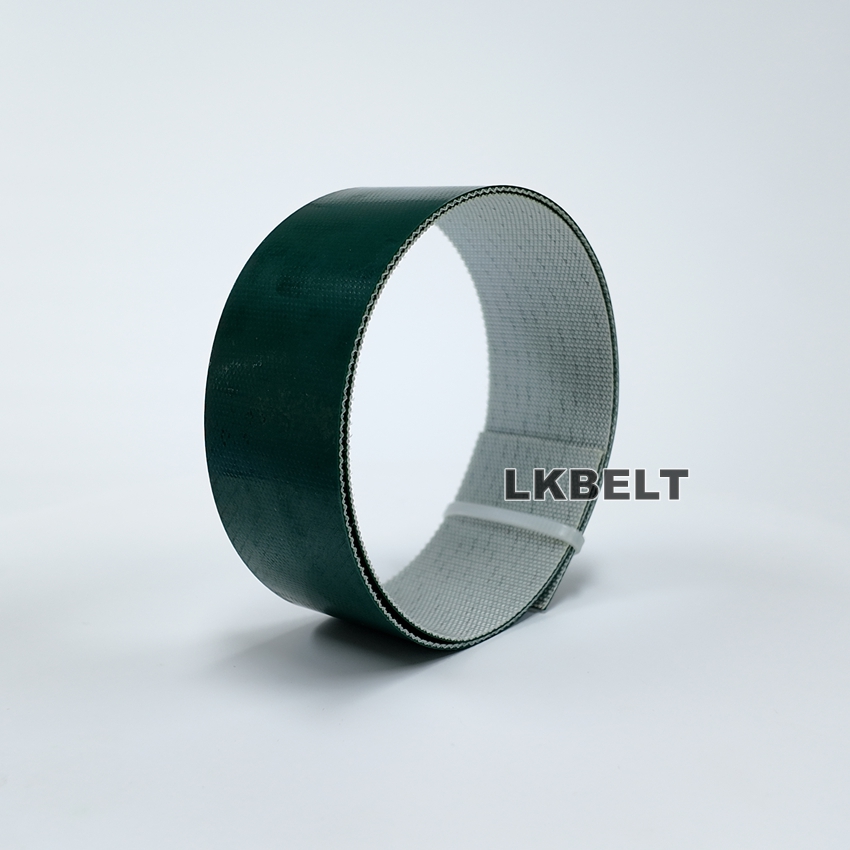

FW-08 is a dark-green PVC flat belt for mahjong-machine conveying. The product photographs show its carrying surface and fabric underside. Match the finished length, width and joint to the machine model and belt position.
| Item | Product details |
|---|---|
| Model | FW-08 |
| Material | PVC |
| Colour shown | Dark green |
| Underside | Fabric |
| Thickness | 0.8 mm |
| Fabric layers | 1 |
| Order dimensions | Finished length, width, total thickness and tolerances |
Send the model, belt dimensions and quantity to request a quote.

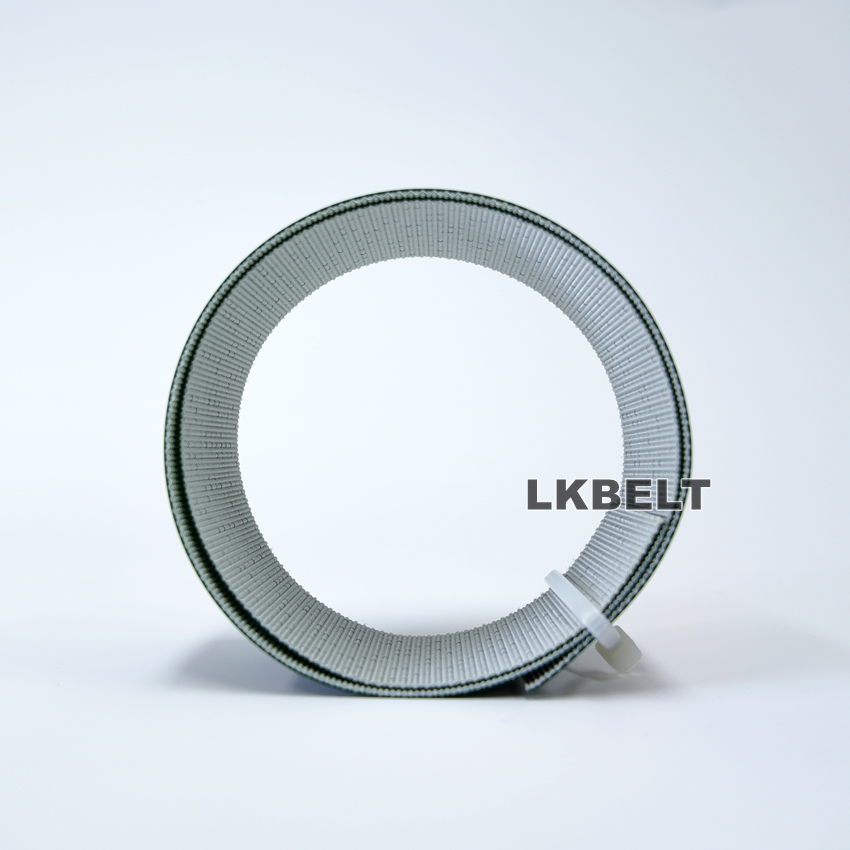

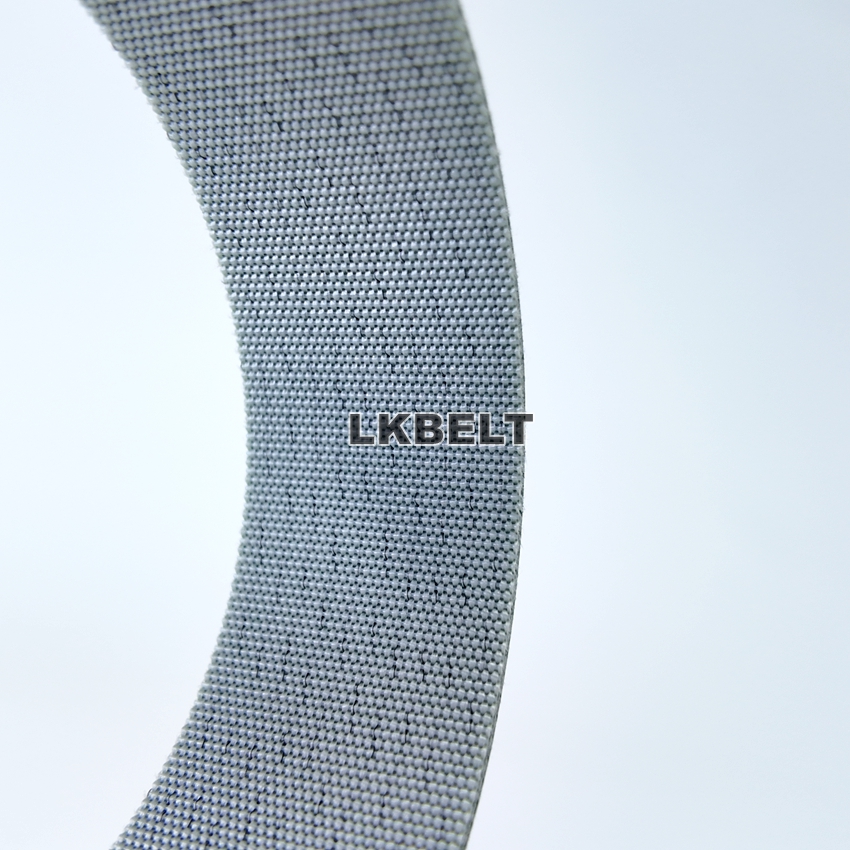

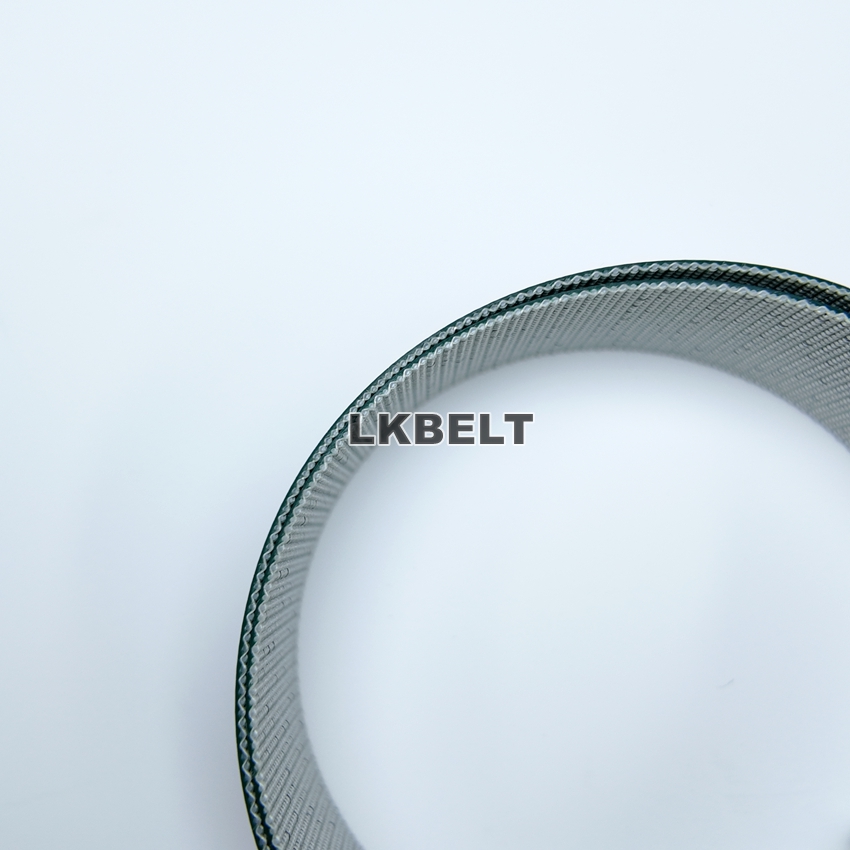

Surface and fabric details
Specify the finished belt
| Detail | Information to provide |
|---|---|
| Machine | Mahjong-machine manufacturer, model and belt position |
| Belt size | Finished length, width, thickness and tolerances |
| Drive and support | Pulley diameters, support bed, tensioning and tracking arrangement |
| Joint and processing | Joint type, installation access and any guides, cleats or sidewalls |
| Operating duty | Tile size, running speed, duty cycle and cleaning method |
Jointing and custom processing
Provide the existing belt or a dimensioned drawing, including the joint and any guide arrangement. Match the finished belt length and width to the machine, with sufficient clearance at the edges and rollers. Include photographs of the belt path when requesting a replacement.
Match the replacement to the conveyor
Compare the existing carrying surface, fabric underside and joint with the product photographs. Include uneven wear, tracking marks or edge damage in your inquiry, together with the conveyor layout and conveyed material.
PVC flat-belt range reference
The FW-08 row gives the thickness, colour and layer count for this model. Other rows describe separate PVC flat-belt options. Finished length, width and joint are specified for the machine.
| Model | Thickness (mm) | Colour | Layers |
|---|---|---|---|
| Mahjong Belt FW-08 | 0.8 | Dark green | 1 |
| Mahjong Belt FW-16 | 1.6 | Dark green | 1 |
| PB10 | 1.0 | Green | 1 |
| N-A15 | 2.2 | White | 1 |
| F-2M0576 | 2.0 | Green | 2 |
| PB20 | 2.0 | Green | 2 |
| PB20-A0-H | 2.0 | Dark green | 2 |
| PB30-A0-H | 3.0 | Dark green | 2 |
| PB40-3M | 4.0 | Dark green | 2 |
| F-2M0090 | 2.8 | Green | 2 |
| PB30 | 3.0 | Green | 2 |
| PB22-A18 | 2.2 | Green | 2 |
| PB20-B-A0 | 2.0 | Black | 2 |
| PB30-A18 | 3.0 | Green | 2 |
| PB40-3M | 4.0 | Green | 3 |
| PB50-3M | 5.0 | Green | 3 |
| PB50-3M-A18 | 5.0 | Green | 3 |
Request FW-08
Send the model, finished belt dimensions, quantity and a drawing or sample. Include the joint, processing and operating requirements so the quotation can cover the complete belt.
