PB20-BG-A0 PVC conveyor belt

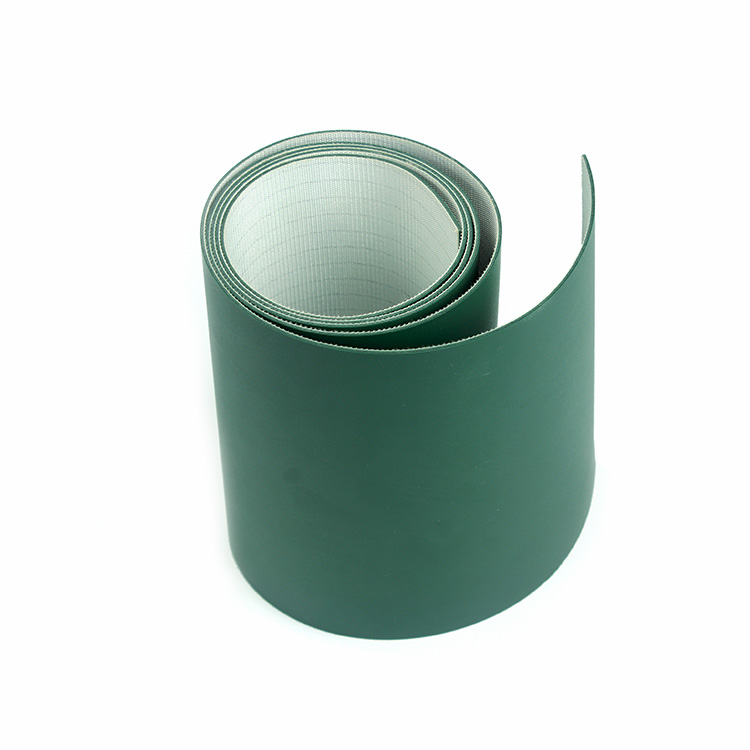

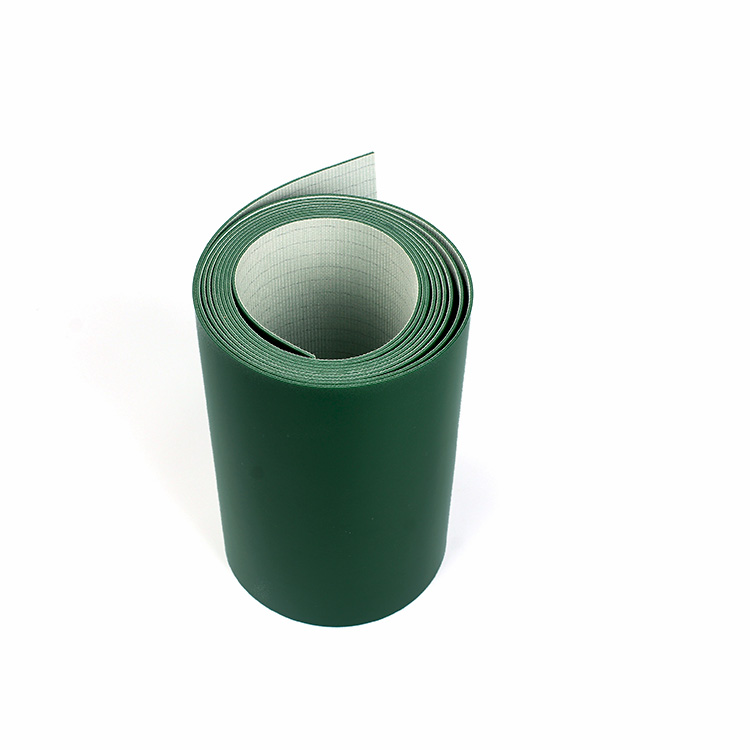

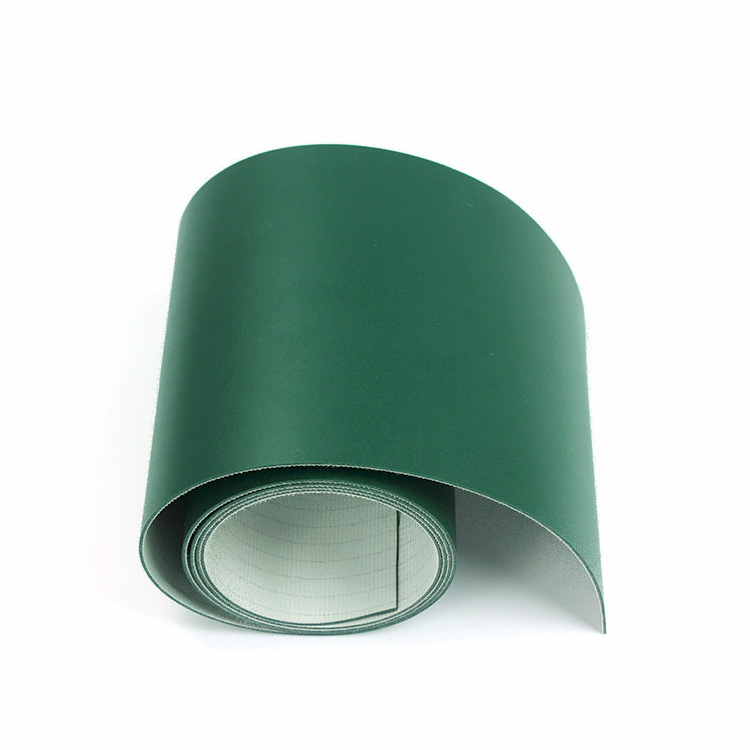

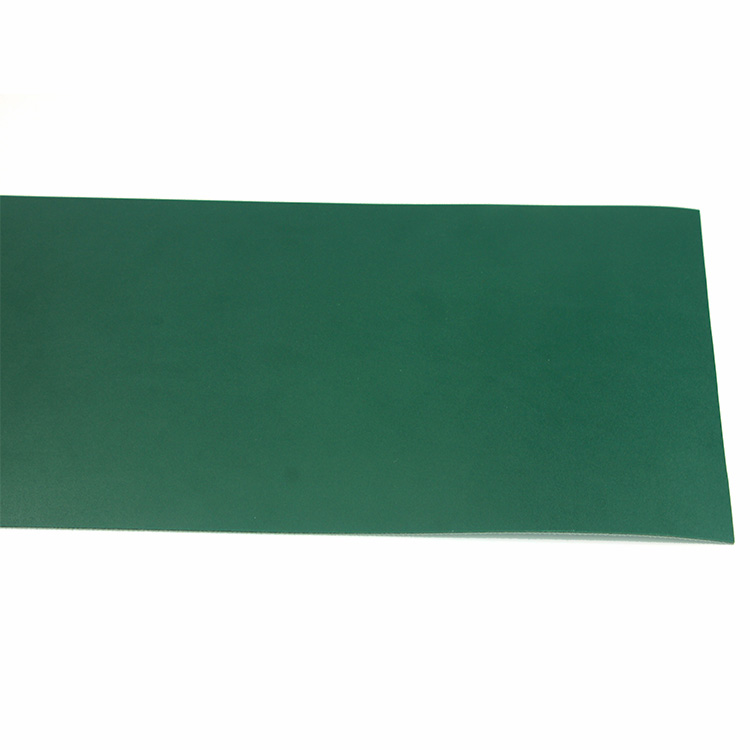

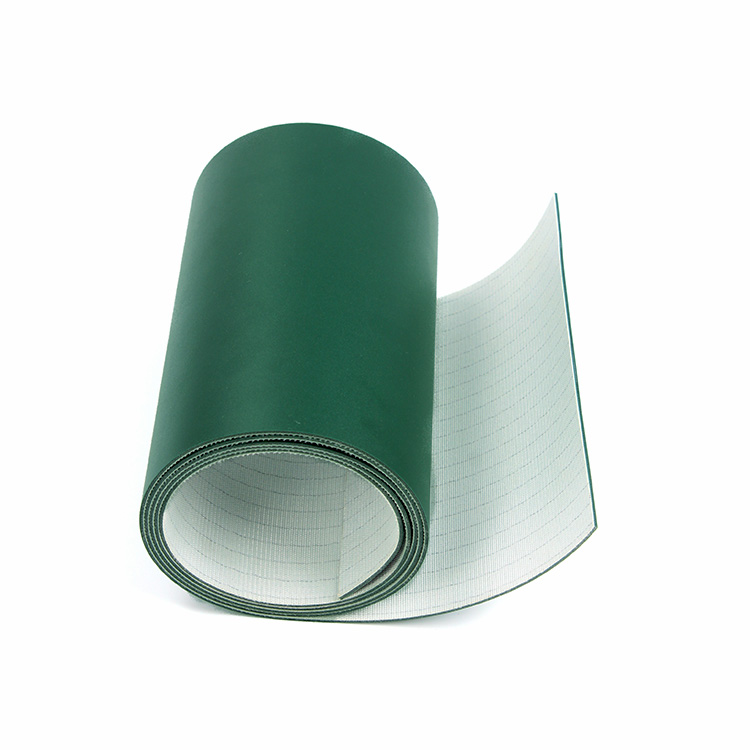

This PVC conveyor belt has a dark-green matte carrying surface and a fabric underside, shown in the product photographs. Specify the finished belt dimensions, joint and conveyor arrangement when ordering this model.
| Item | Product details |
|---|---|
| Model | PB20-BG-A0 |
| Material | PVC |
| Colour shown | Dark green, matte |
| Underside | Fabric |
| Order dimensions | Finished length, width, total thickness and tolerances |
Send the model, belt dimensions and quantity to request a quote.

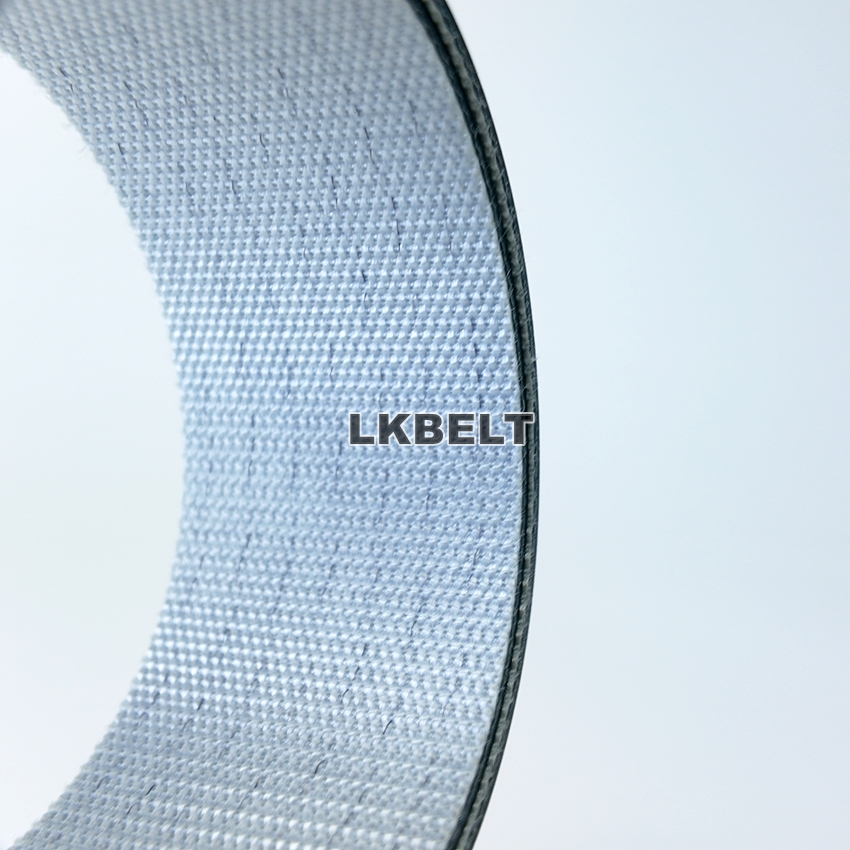

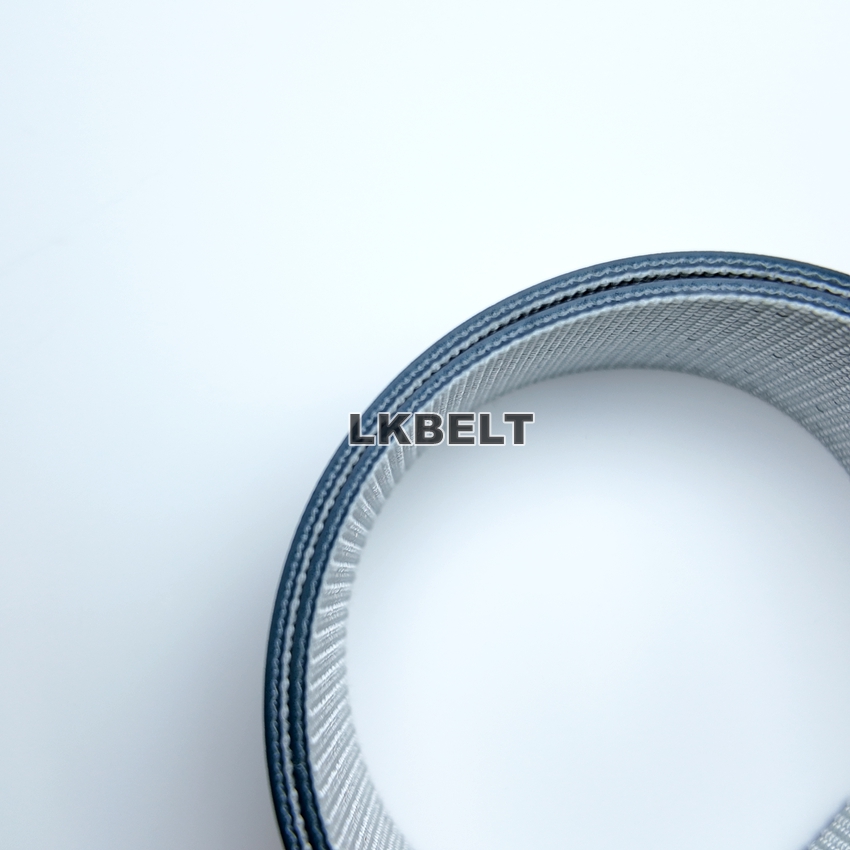

Surface and fabric details
Specify the finished belt
| Detail | Information to provide |
|---|---|
| Machine | Conveyor manufacturer, model and installation layout |
| Belt size | Finished length, width, thickness and tolerances |
| Drive and support | Pulley diameters, support bed, tensioning and tracking arrangement |
| Joint and processing | Joint type, installation access and any guides, cleats or sidewalls |
| Operating duty | Conveyed product, speed, load, temperature and cleaning method |
Jointing and custom processing
Include photographs of the carrying face, underside, edges and existing joint. For cleats, sidewalls or underside guides, provide their dimensions and positions on a drawing. The belt construction and processing should be matched to the pulley arrangement and conveyor clearances.
Match the replacement to the conveyor
Compare the existing carrying surface, fabric underside and joint with the product photographs. Include uneven wear, tracking marks or edge damage in your inquiry, together with the conveyor layout and conveyed material.
PVC flat-belt range reference
The following models are separate PVC flat-belt options. These dimensions do not describe PB20-BG-A0. Match the surface, construction and finished size to your conveyor.
| Model | Thickness (mm) | Colour | Layers |
|---|---|---|---|
| Mahjong Belt FW-08 | 0.8 | Dark green | 1 |
| Mahjong Belt FW-16 | 1.6 | Dark green | 1 |
| PB10 | 1.0 | Green | 1 |
| N-A15 | 2.2 | White | 1 |
| F-2M0576 | 2.0 | Green | 2 |
| PB20 | 2.0 | Green | 2 |
| PB20-A0-H | 2.0 | Dark green | 2 |
| PB30-A0-H | 3.0 | Dark green | 2 |
| PB40-3M | 4.0 | Dark green | 2 |
| F-2M0090 | 2.8 | Green | 2 |
| PB30 | 3.0 | Green | 2 |
| PB22-A18 | 2.2 | Green | 2 |
| PB20-B-A0 | 2.0 | Black | 2 |
| PB30-A18 | 3.0 | Green | 2 |
| PB40-3M | 4.0 | Green | 3 |
| PB50-3M | 5.0 | Green | 3 |
| PB50-3M-A18 | 5.0 | Green | 3 |
Request PB20-BG-A0
Send the model, finished belt dimensions, quantity and a drawing or sample. Include the joint, processing and operating requirements so the quotation can cover the complete belt.
