R-1MH0930-N-SP spike-pattern PU conveyor belt

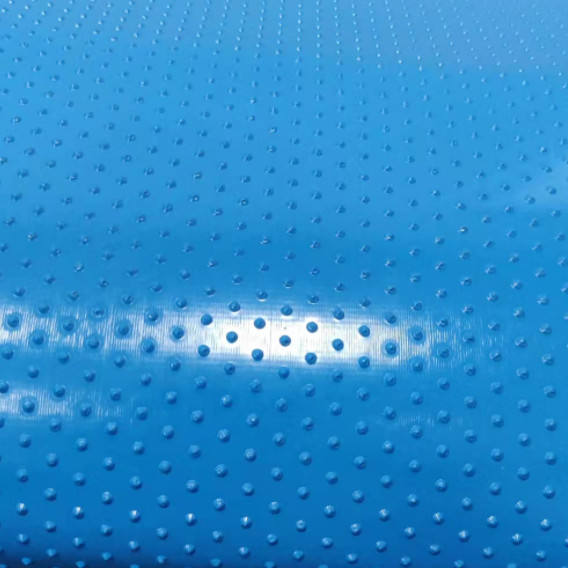

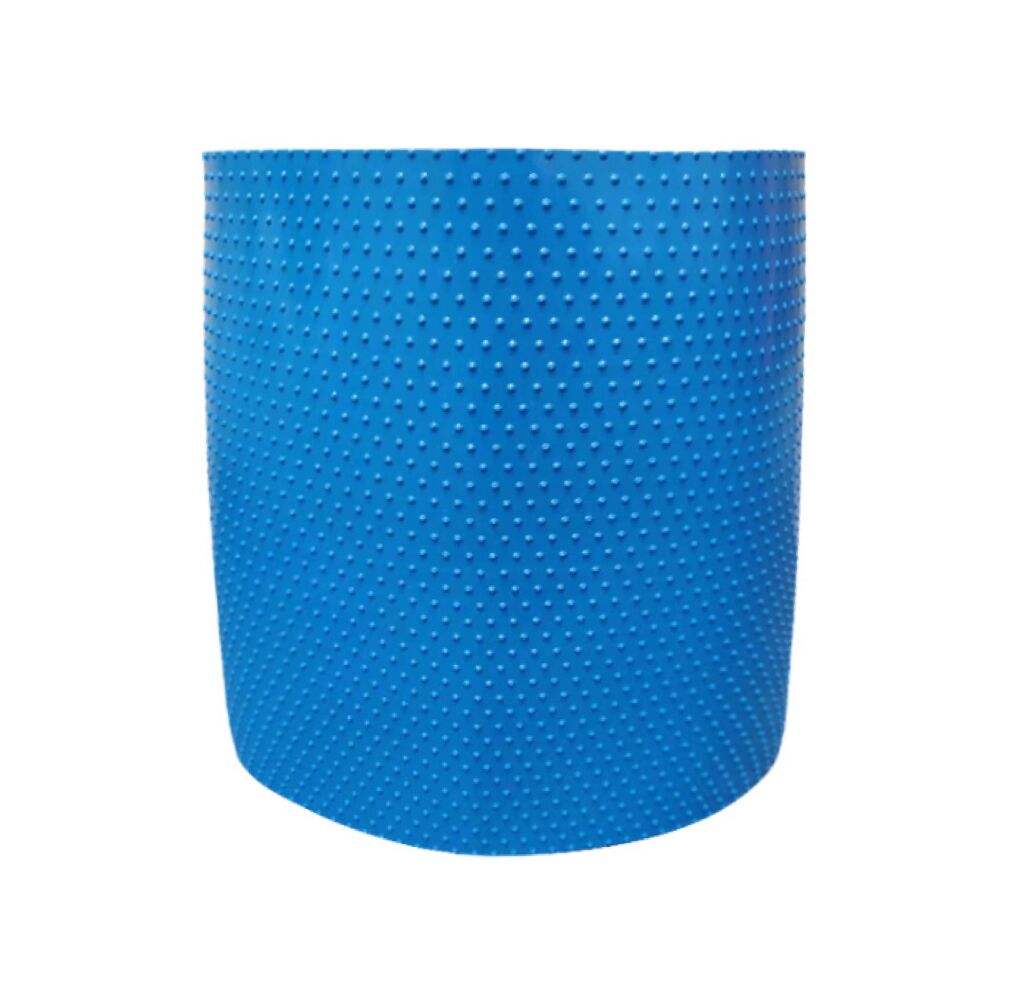

R-1MH0930-N-SP is a blue spike-pattern PU belt for vegetable-cutting conveyor applications. Its raised carrying surface and fabric-textured underside are shown in the product photographs. Match the spike layout, belt dimensions and joint to the feeding mechanism and conveyor arrangement.
| Item | Product details |
|---|---|
| Model | R-1MH0930-N-SP |
| Belt type | Spike-pattern conveyor belt |
| Material | PU (polyurethane) |
| Colour shown | Blue |
| Underside | Blue fabric texture |
| Order dimensions | Finished length, width, total thickness and tolerances |
Send the model, belt dimensions and quantity to request a quote.
Pattern and edge details
Specify the finished belt
| Detail | Information to provide |
|---|---|
| Machine | Vegetable-cutting machine manufacturer, model and feed-conveyor layout |
| Belt size | Finished length, width, total thickness, pattern dimensions and tolerances |
| Spike layout | Spike height, spacing, row arrangement and clearance to adjacent components |
| Drive and support | Pulley diameters, support bed, tensioning and tracking arrangement |
| Joint and processing | Joint type, installation access and any guides, cleats or sidewalls |
| Operating duty | Vegetable type and size, feeding speed, load, temperature and cleaning method |
Jointing and custom processing
Include photographs of the carrying face, underside, edges and existing joint. For cleats, sidewalls or underside guides, provide their dimensions and positions on a drawing. The belt construction and processing should be matched to the pulley arrangement and conveyor clearances.
Food contact and cleaning
Include the food type, contact temperature, wash-down routine and cleaning chemicals with your inquiry. State the food-contact documentation required for your market and process, covering the finished belt, joint and any attachments.
PU conveyor belt range reference
The following eight models are separate PU belt options. Their dimensions are not specifications for this patterned PU belt. Select the complete construction for your conveyor. Scroll sideways to view the full table on smaller screens.
| Model | Material | Colour | Layers | Weight (kg/m²) | Minimum pulley (mm) |
|---|---|---|---|---|---|
| F-2T0607-FDA | PU | White / blue | 2 | 1.5 | 25 |
| R-2M1795-FDA | PU | White / blue | 2 | 1.7 | 40 |
| R-2M1712-FDA | PU | White / blue | 2 | 1.4 | 20 |
| R-1M0980-FDA | PU | White / blue | 1 | 0.8 | 16 |
| R-2M0830-FDA | PU | White / blue | 2 | 3.2 | 60 |
| R-2M0916 | PU | Dark green / white | 2 | 1.7 | 40 |
| R-3M0835-A0 | PU | Black | 3 | 4.0 | 80 |
| R-3M0832-A20 | PU | Dark green / white | 3 | 3.5 | 80 |
Request an R-1MH0930-N-SP belt
Send the model, finished belt dimensions, quantity and a drawing or sample. Include the joint, processing and operating requirements so the quotation can cover the complete belt.
