Blue patterned PU conveyor belt for food-processing lines

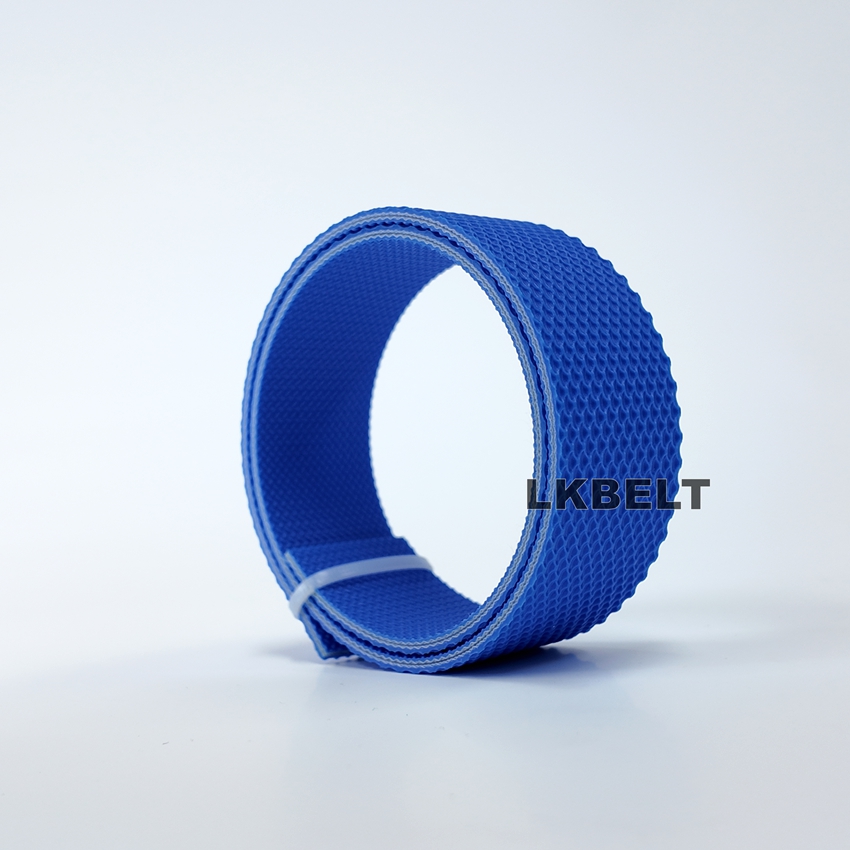

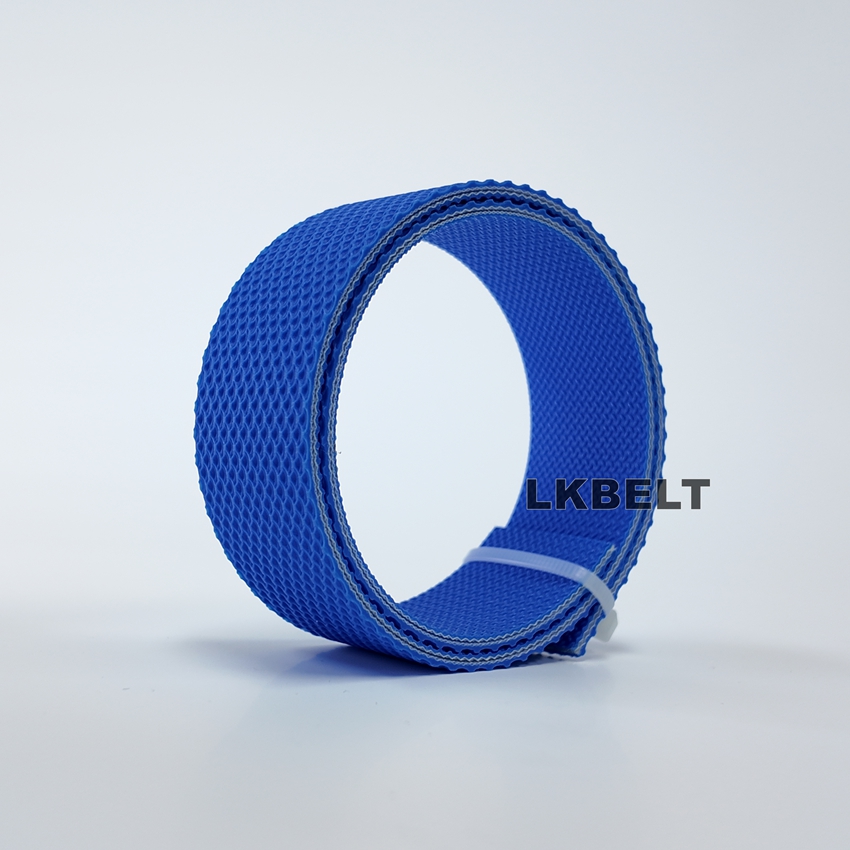

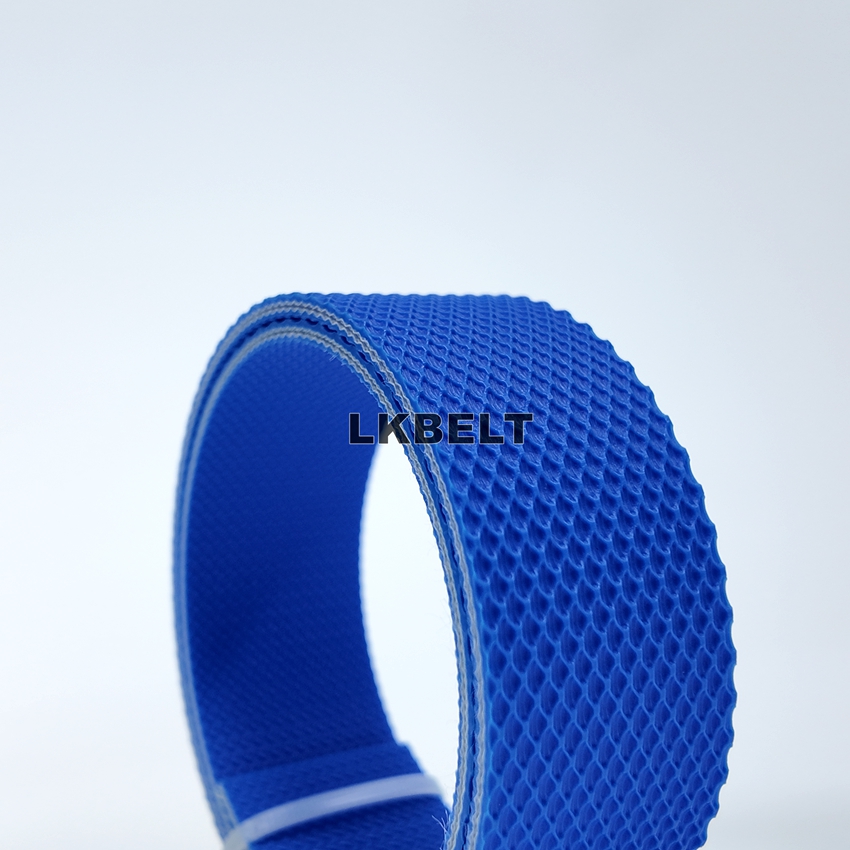

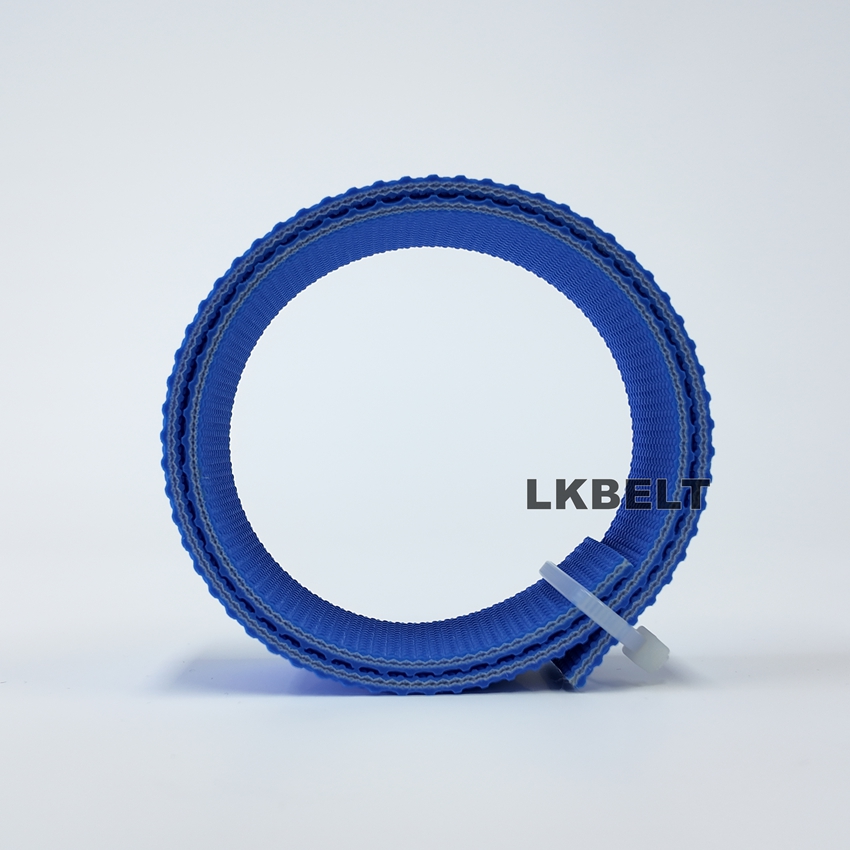

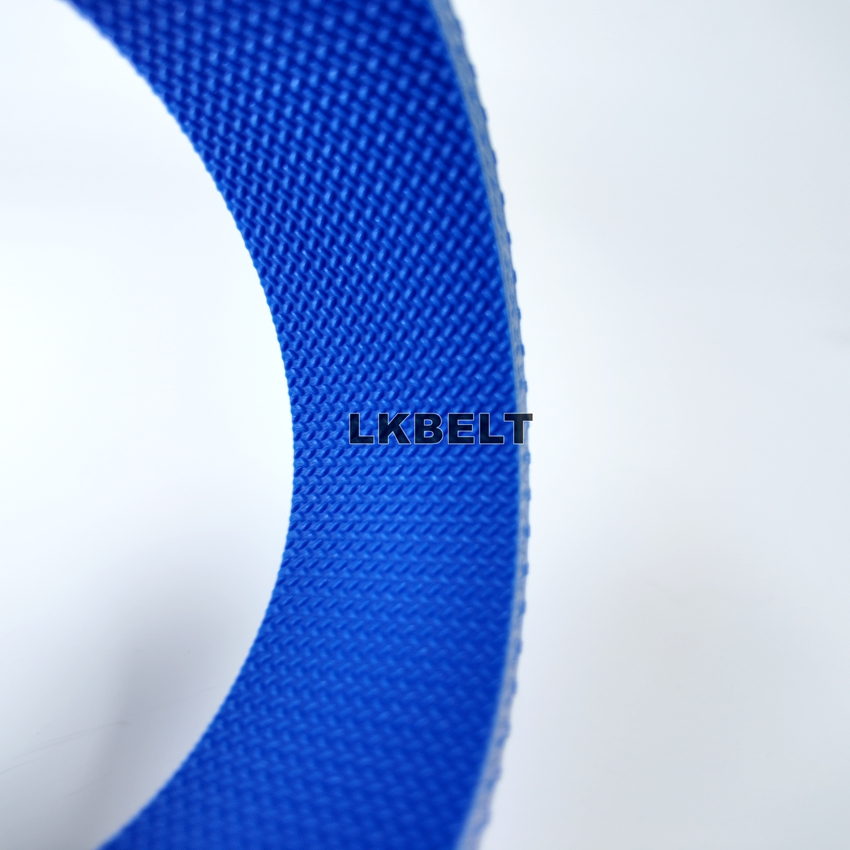

This PU conveyor belt is presented for vegetable, seafood and meat-processing conveyors. The product photographs show a blue patterned carrying face and a blue textured underside. Specify the conveyed product, operating temperature and cleaning conditions together with the finished belt dimensions.
| Item | Product details |
|---|---|
| Belt type | Patterned conveyor belt |
| Material | PU (polyurethane) |
| Colour shown | Blue |
| Underside | Blue, textured |
| Order dimensions | Finished length, width, total thickness and tolerances |
Send the model, belt dimensions and quantity to request a quote.

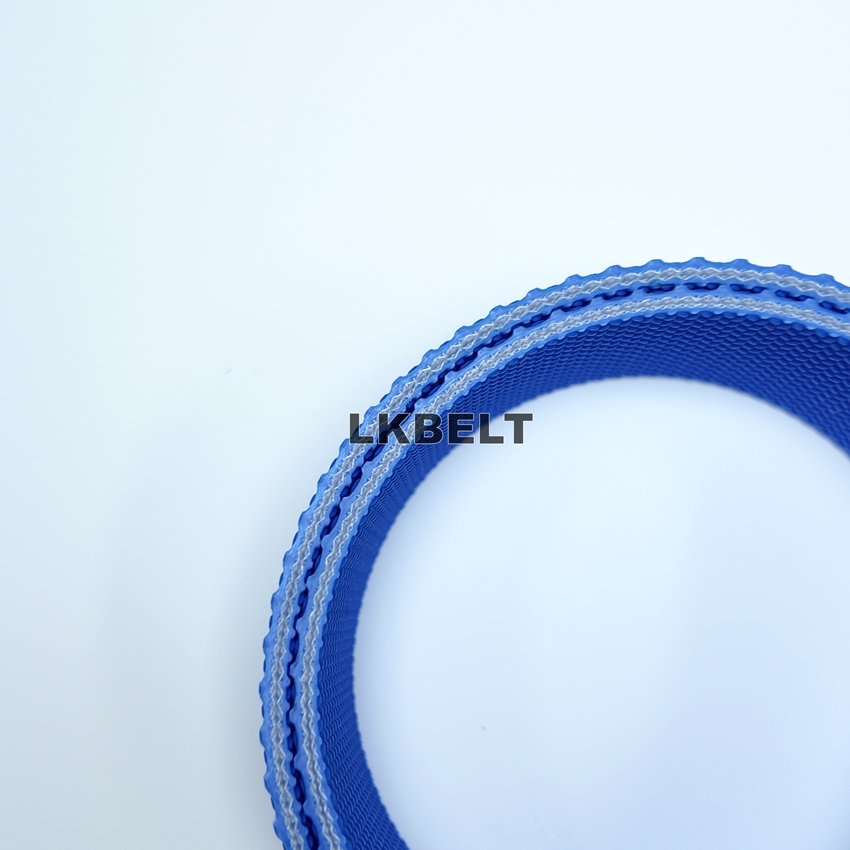

Pattern and edge details
Specify the finished belt
| Detail | Information to provide |
|---|---|
| Machine | Conveyor manufacturer, model and installation layout |
| Belt size | Finished length, width, total thickness, pattern dimensions and tolerances |
| Drive and support | Pulley diameters, support bed, tensioning and tracking arrangement |
| Joint and processing | Joint type, installation access and any guides, cleats or sidewalls |
| Operating duty | Conveyed product, speed, load, temperature and cleaning method |
Jointing and custom processing
Include photographs of the carrying face, underside, edges and existing joint. For cleats, sidewalls or underside guides, provide their dimensions and positions on a drawing. The belt construction and processing should be matched to the pulley arrangement and conveyor clearances.
Food contact and cleaning
Include the food type, contact temperature, wash-down routine and cleaning chemicals with your inquiry. State the food-contact documentation required for your market and process, covering the finished belt, joint and any attachments.
PU conveyor belt range reference
The following eight models are separate PU belt options. Their dimensions are not specifications for this patterned PU belt. Select the complete construction for your conveyor. Scroll sideways to view the full table on smaller screens.
| Model | Material | Colour | Layers | Weight (kg/m²) | Minimum pulley (mm) |
|---|---|---|---|---|---|
| F-2T0607-FDA | PU | White / blue | 2 | 1.5 | 25 |
| R-2M1795-FDA | PU | White / blue | 2 | 1.7 | 40 |
| R-2M1712-FDA | PU | White / blue | 2 | 1.4 | 20 |
| R-1M0980-FDA | PU | White / blue | 1 | 0.8 | 16 |
| R-2M0830-FDA | PU | White / blue | 2 | 3.2 | 60 |
| R-2M0916 | PU | Dark green / white | 2 | 1.7 | 40 |
| R-3M0835-A0 | PU | Black | 3 | 4.0 | 80 |
| R-3M0832-A20 | PU | Dark green / white | 3 | 3.5 | 80 |
Request a patterned PU conveyor belt
Send the model, finished belt dimensions, quantity and a drawing or sample. Include the joint, processing and operating requirements so the quotation can cover the complete belt.
