PU conveyor belt for dumpling machines

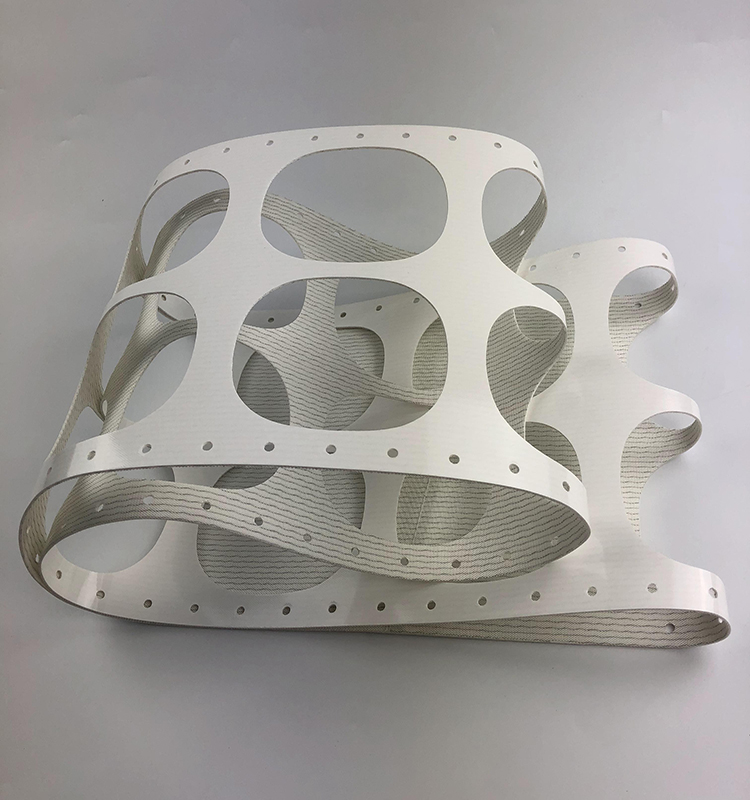

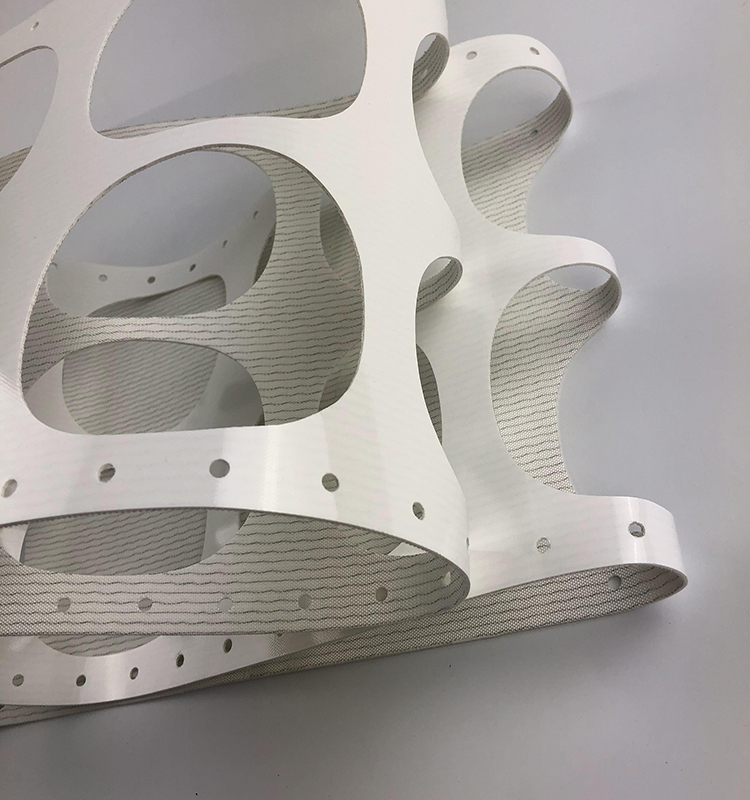

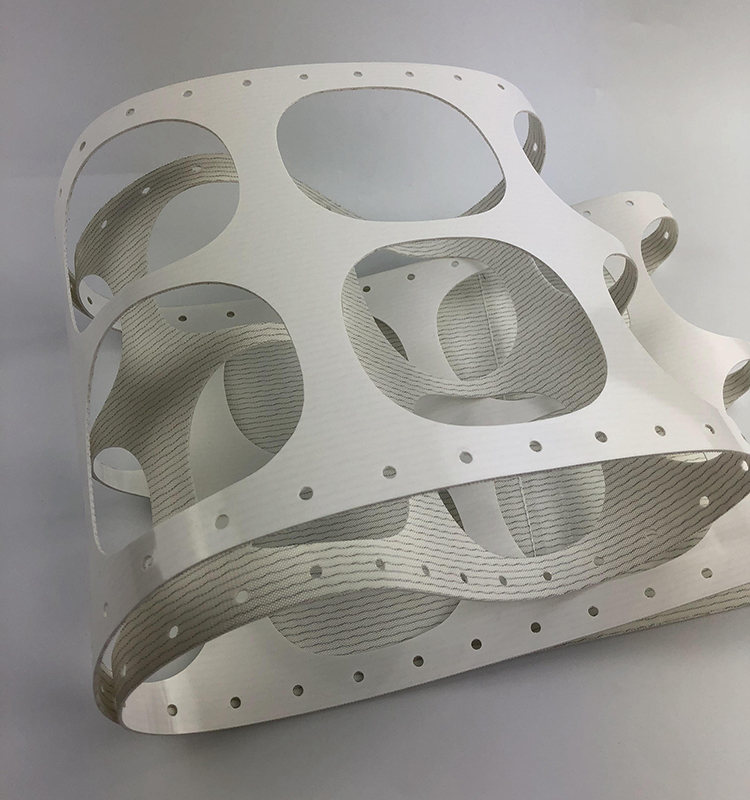

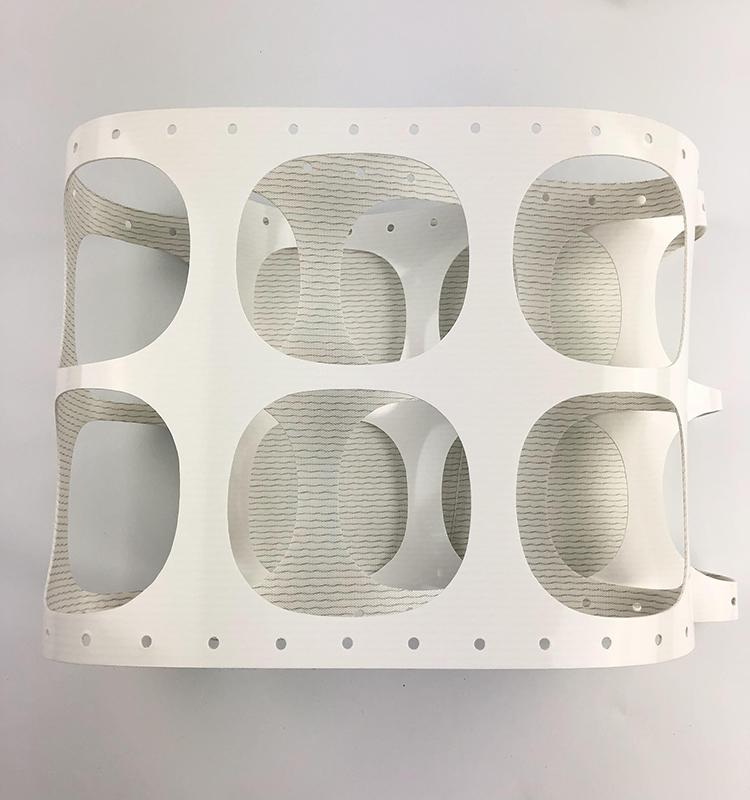

This PU dumpling-machine conveyor belt has large shaped openings and rows of small holes along the edges. The photographs show a white carrying face and fabric underside. The opening layout and finished belt dimensions should match the machine drawing or replacement sample.
| Item | Product details |
|---|---|
| Product | Dumpling-machine conveyor belt |
| Material | PU (polyurethane) |
| Surface shown | White with shaped openings |
| Underside | Fabric |
| Order dimensions | Finished belt dimensions and hole-layout drawing |
Send the model, belt dimensions and quantity to request a quote.
Opening layout and belt construction
Specify the finished belt
| Detail | Information to provide |
|---|---|
| Machine | Dumpling-machine manufacturer, model and belt installation position |
| Belt size | Finished length, width, thickness and tolerances |
| Opening layout | Shape and dimensions of each opening, row spacing and repeat distance |
| Edge holes | Hole diameter, centre-to-centre pitch, distance from the belt edge and alignment between rows |
| Drive and support | Pulley diameters, guides, tensioning and clearances around the openings |
| Joint and processing | Joint type and location, installation access and any guides |
| Operating duty | Conveyed product, speed, load, temperature and cleaning method |
Preparing the hole-layout drawing
Provide a dimensioned drawing or the existing belt as a sample. Mark the belt travel direction, datum edge, opening positions, small-hole pattern and joint location. Include tolerances and the total pattern repeat around the finished belt so the openings can align with the machine.
Food-contact requirements
For food-contact applications, include the food type, contact temperature, cleaning process and destination-market requirements in your inquiry. Request the relevant material and compliance documentation for the selected belt construction.
PU base-belt range reference
The following models are base-belt options. Select the material construction separately from the opening layout and finished machine-belt dimensions. Scroll sideways to view the full table on smaller screens.
| Model | Thickness (mm) | Colour | Layers | Weight (kg/m²) | Minimum pulley (mm) |
|---|---|---|---|---|---|
| F-2T0607-FDA | 1.3 | White / blue | 2 | 1.5 | 25 |
| R-2M1795-FDA | 1.5 | White / blue | 2 | 1.7 | 40 |
| R-2M1712-FDA | 1.3 | White / blue | 2 | 1.4 | 20 |
| R-1M0980-FDA | 0.8 | White / blue | 1 | 0.8 | 16 |
| R-2M0830-FDA | 3.0 | White / blue | 2 | 3.2 | 60 |
| R-2M0916 | 1.5 | Dark green / white | 2 | 1.7 | 40 |
| R-3M0835-A0 | 3.5 | Black | 3 | 4.0 | 80 |
| R-3M0832-A20 | 3.2 | Dark green / white | 3 | 3.5 | 80 |
Request a dumpling-machine belt
Send the model, finished belt dimensions, quantity and a drawing or sample. Include the joint, processing and operating requirements so the quotation can cover the complete belt.
