R-2M0920-A0-E8-Y PU conveyor belt

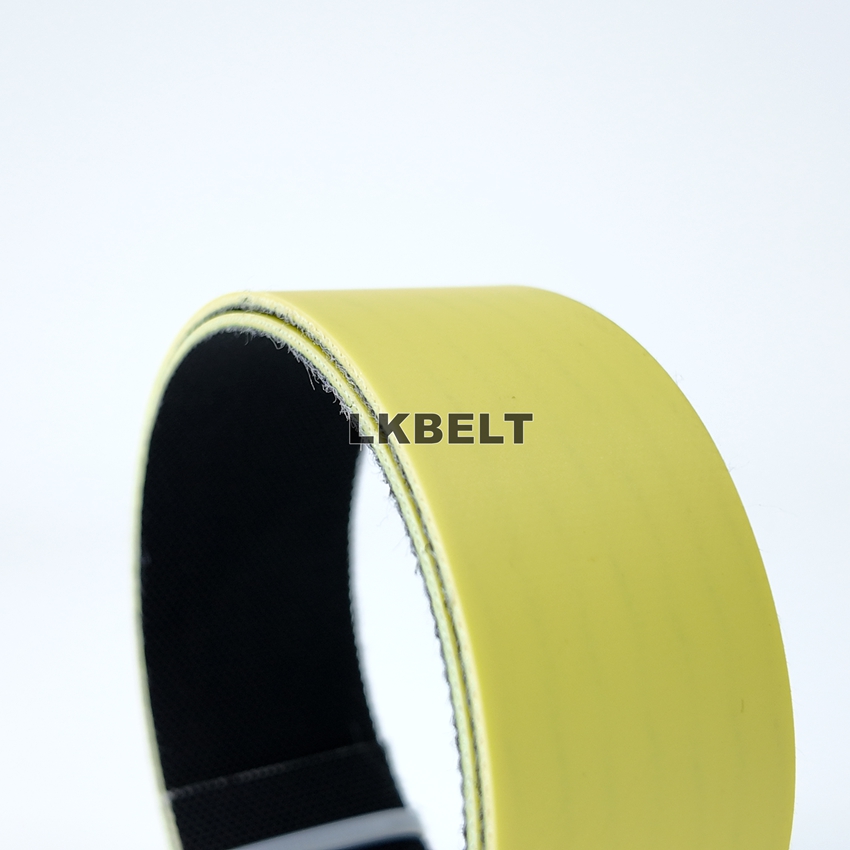

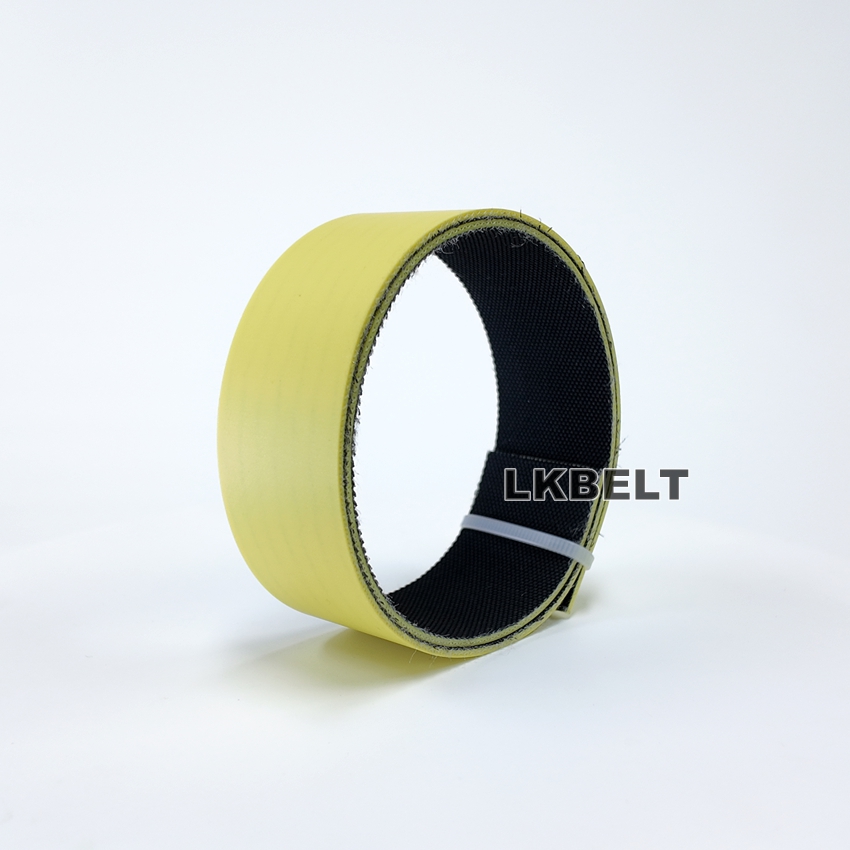

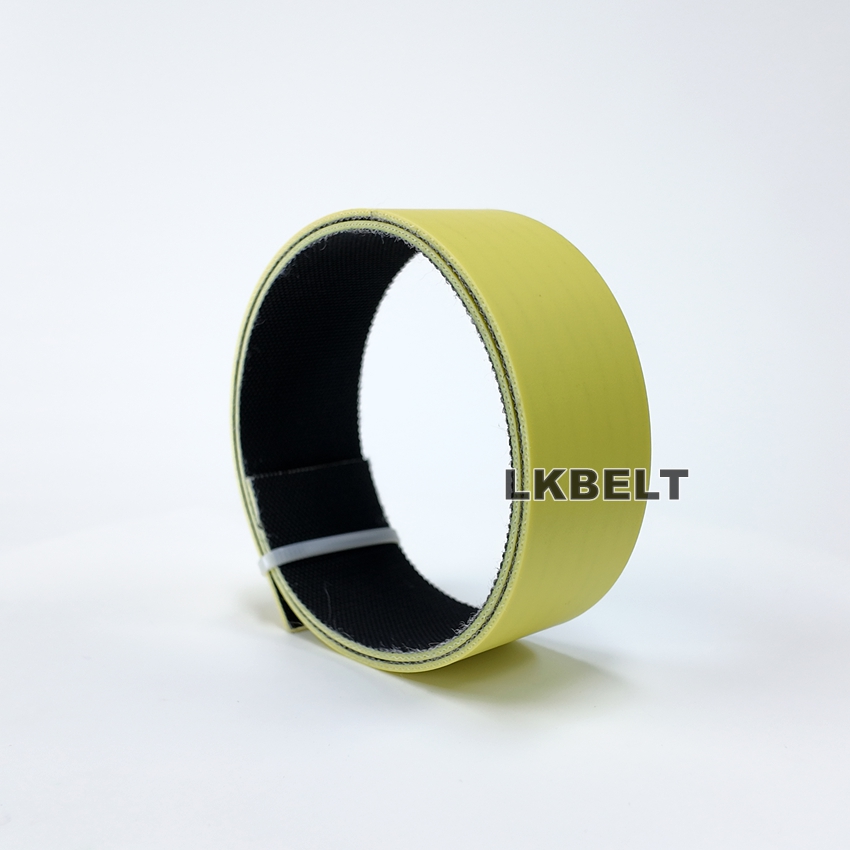

This polyurethane flat conveyor belt has a yellow carrying surface and a black fabric underside, shown in the product photographs. Specify the finished belt dimensions, joint and conveyor arrangement when ordering this model.
| Item | Product details |
|---|---|
| Model | R-2M0920-A0-E8-Y |
| Material | PU (polyurethane) |
| Colour shown | Yellow |
| Underside | Black fabric |
| Order dimensions | Finished length, width, total thickness and tolerances |
Send the model, belt dimensions and quantity to request a quote.

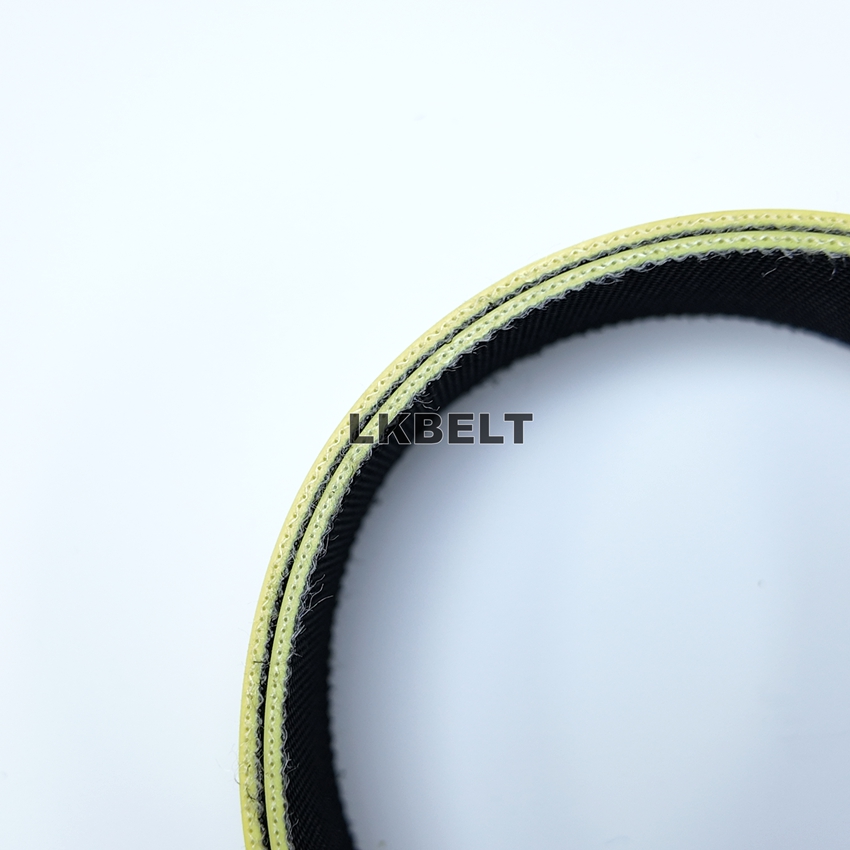

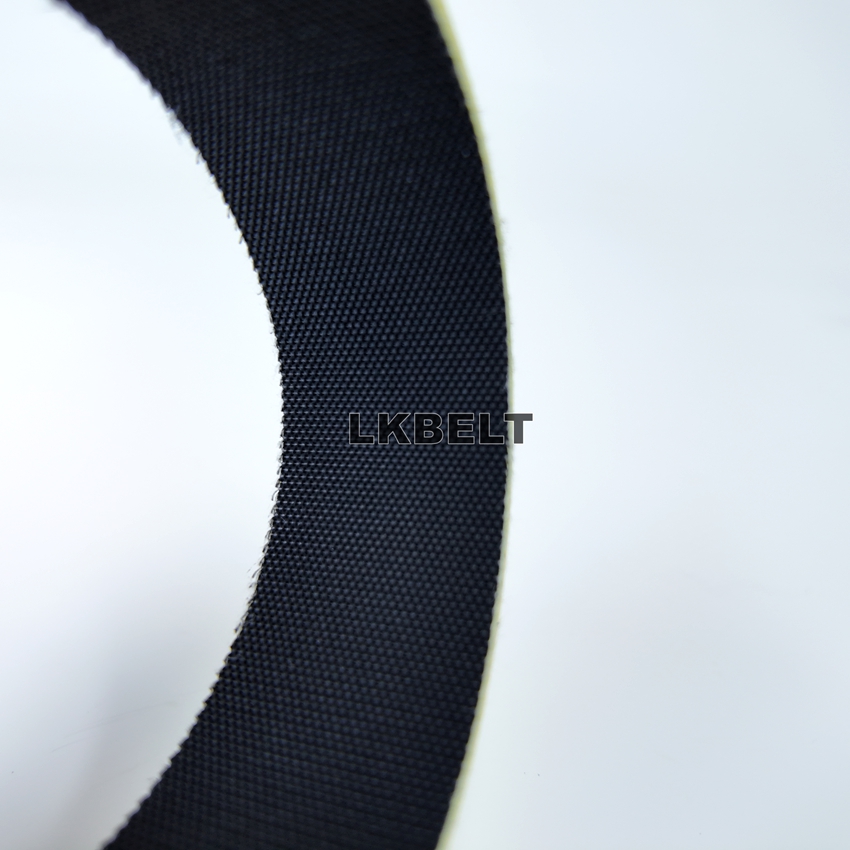

Surface and fabric details
Specify the finished belt
| Detail | Information to provide |
|---|---|
| Machine | Conveyor manufacturer, model and installation layout |
| Belt size | Finished length, width, thickness and tolerances |
| Drive and support | Pulley diameters, support bed, tensioning and tracking arrangement |
| Joint and processing | Joint type, installation access and any guides, cleats or sidewalls |
| Operating duty | Conveyed product, speed, load, temperature and cleaning method |
Jointing and custom processing
Include photographs of the carrying face, underside, edges and existing joint. For cleats, sidewalls or underside guides, provide their dimensions and positions on a drawing. The belt construction and processing should be matched to the pulley arrangement and conveyor clearances.
Static-control requirements
For static-sensitive conveying, include the required resistance range, test method, environmental conditions and machine grounding arrangement in your inquiry. Request the electrical-property documentation for the selected belt construction before specifying it for the application.
PU conveyor belt range reference
The following eight models are separate PU belt options. Their dimensions are not specifications for R-2M0920-A0-E8-Y. Select the complete construction for your conveyor. Scroll sideways to view the full table on smaller screens.
| Model | Thickness (mm) | Colour | Layers | Weight (kg/m²) | Minimum pulley (mm) |
|---|---|---|---|---|---|
| F-2T0607-FDA | 1.3 | White / blue | 2 | 1.5 | 25 |
| R-2M1795-FDA | 1.5 | White / blue | 2 | 1.7 | 40 |
| R-2M1712-FDA | 1.3 | White / blue | 2 | 1.4 | 20 |
| R-1M0980-FDA | 0.8 | White / blue | 1 | 0.8 | 16 |
| R-2M0830-FDA | 3.0 | White / blue | 2 | 3.2 | 60 |
| R-2M0916 | 1.5 | Dark green / white | 2 | 1.7 | 40 |
| R-3M0835-A0 | 3.5 | Black | 3 | 4.0 | 80 |
| R-3M0832-A20 | 3.2 | Dark green / white | 3 | 3.5 | 80 |
Request R-2M0920-A0-E8-Y
Send the model, finished belt dimensions, quantity and a drawing or sample. Include the joint, processing and operating requirements so the quotation can cover the complete belt.
