Dark-green matte PU conveyor belt

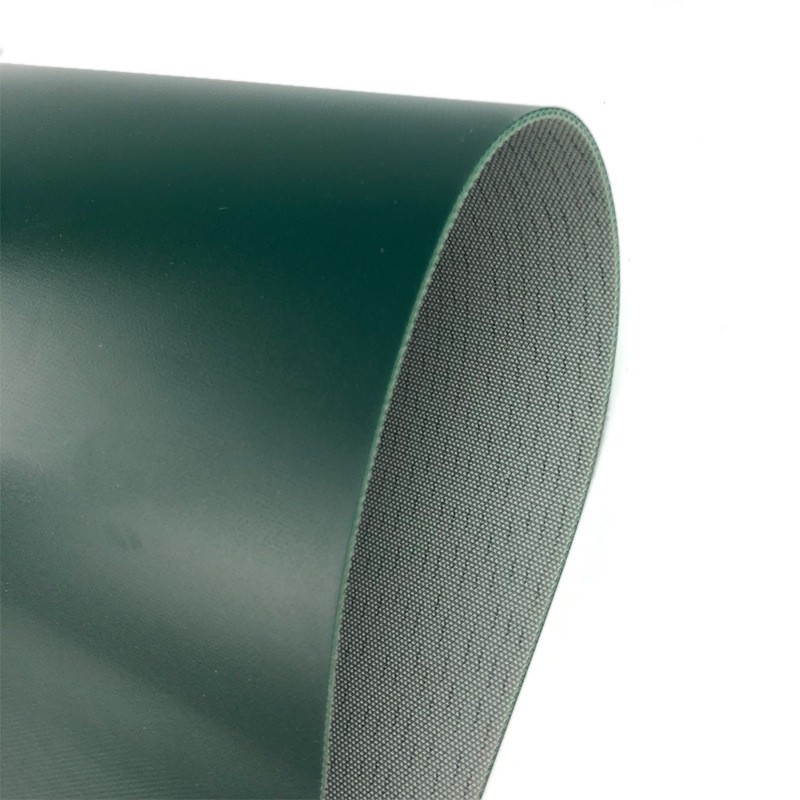

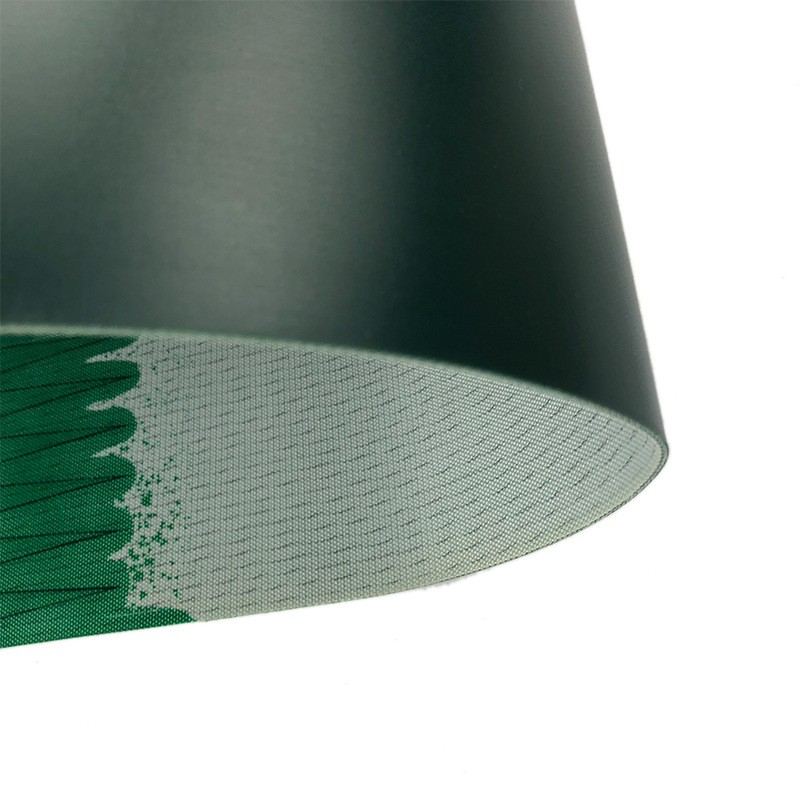

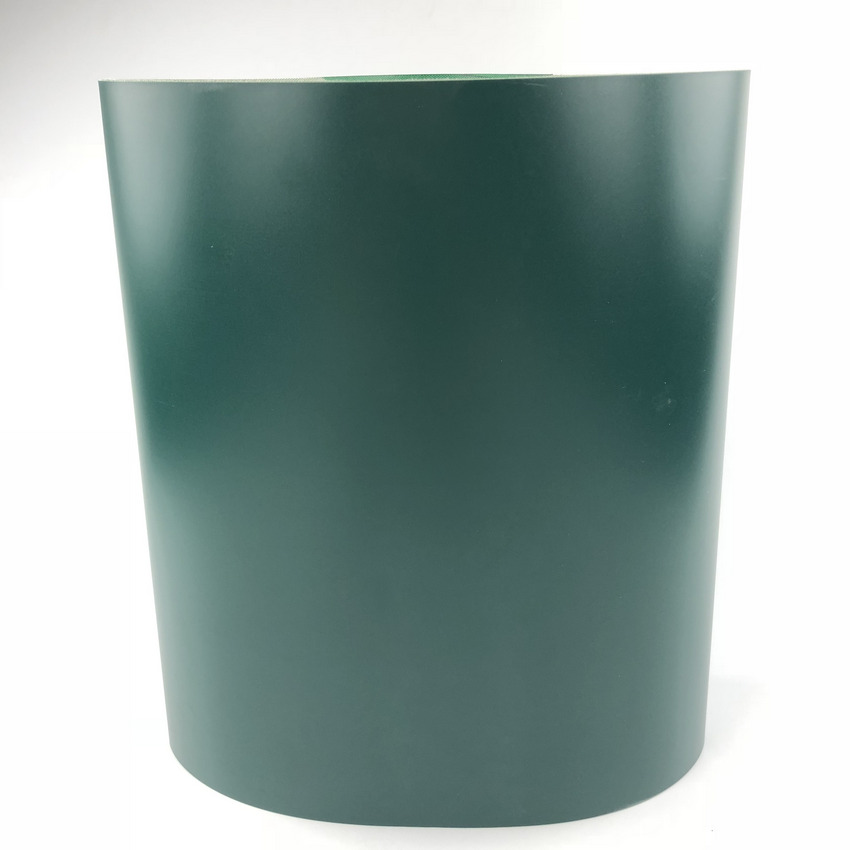

This PU conveyor belt has a dark-green matte carrying face and fabric underside. The close-up photographs show the belt edge, underside and finger-joint area. Specify the finished dimensions and joint to suit your conveyor.
| Item | Product details |
|---|---|
| Product | Matte-surface PU conveyor belt |
| Material | PU (polyurethane) |
| Surface shown | Dark green, matte |
| Underside | Fabric |
| Order dimensions | Finished length, width, total thickness and tolerances |
Send the model, belt dimensions and quantity to request a quote.
Surface and fabric details
Specify the finished belt
| Detail | Information to provide |
|---|---|
| Machine | Conveyor manufacturer, model and installation layout |
| Belt size | Finished length, width, thickness and tolerances |
| Drive and support | Pulley diameters, support bed, tensioning and tracking arrangement |
| Joint and processing | Joint type, installation access and any guides, cleats or sidewalls |
| Operating duty | Conveyed product, speed, load, temperature and cleaning method |
Jointing and custom processing
Include photographs of the carrying face, underside, edges and existing joint. For cleats, sidewalls or underside guides, provide their dimensions and positions on a drawing. The belt construction and processing should be matched to the pulley arrangement and conveyor clearances.
Match both belt faces to the conveyor
Include photographs of the carrying face and pulley-contact face. For replacement belts, describe the current wear, tracking behaviour and joint condition so the construction and finishing can be selected for the installation.
PU conveyor belt range reference
The following eight models are separate PU belt options. Choose a model and construction to suit the application; the range values do not identify the pictured belt. Select the complete construction for your conveyor. Scroll sideways to view the full table on smaller screens.
| Model | Thickness (mm) | Colour | Layers | Weight (kg/m²) | Minimum pulley (mm) |
|---|---|---|---|---|---|
| F-2T0607-FDA | 1.3 | White / blue | 2 | 1.5 | 25 |
| R-2M1795-FDA | 1.5 | White / blue | 2 | 1.7 | 40 |
| R-2M1712-FDA | 1.3 | White / blue | 2 | 1.4 | 20 |
| R-1M0980-FDA | 0.8 | White / blue | 1 | 0.8 | 16 |
| R-2M0830-FDA | 3.0 | White / blue | 2 | 3.2 | 60 |
| R-2M0916 | 1.5 | Dark green / white | 2 | 1.7 | 40 |
| R-3M0835-A0 | 3.5 | Black | 3 | 4.0 | 80 |
| R-3M0832-A20 | 3.2 | Dark green / white | 3 | 3.5 | 80 |
Request a PU conveyor belt
Send the model, finished belt dimensions, quantity and a drawing or sample. Include the joint, processing and operating requirements so the quotation can cover the complete belt.
