PTFE-coated fiberglass mesh conveyor belt

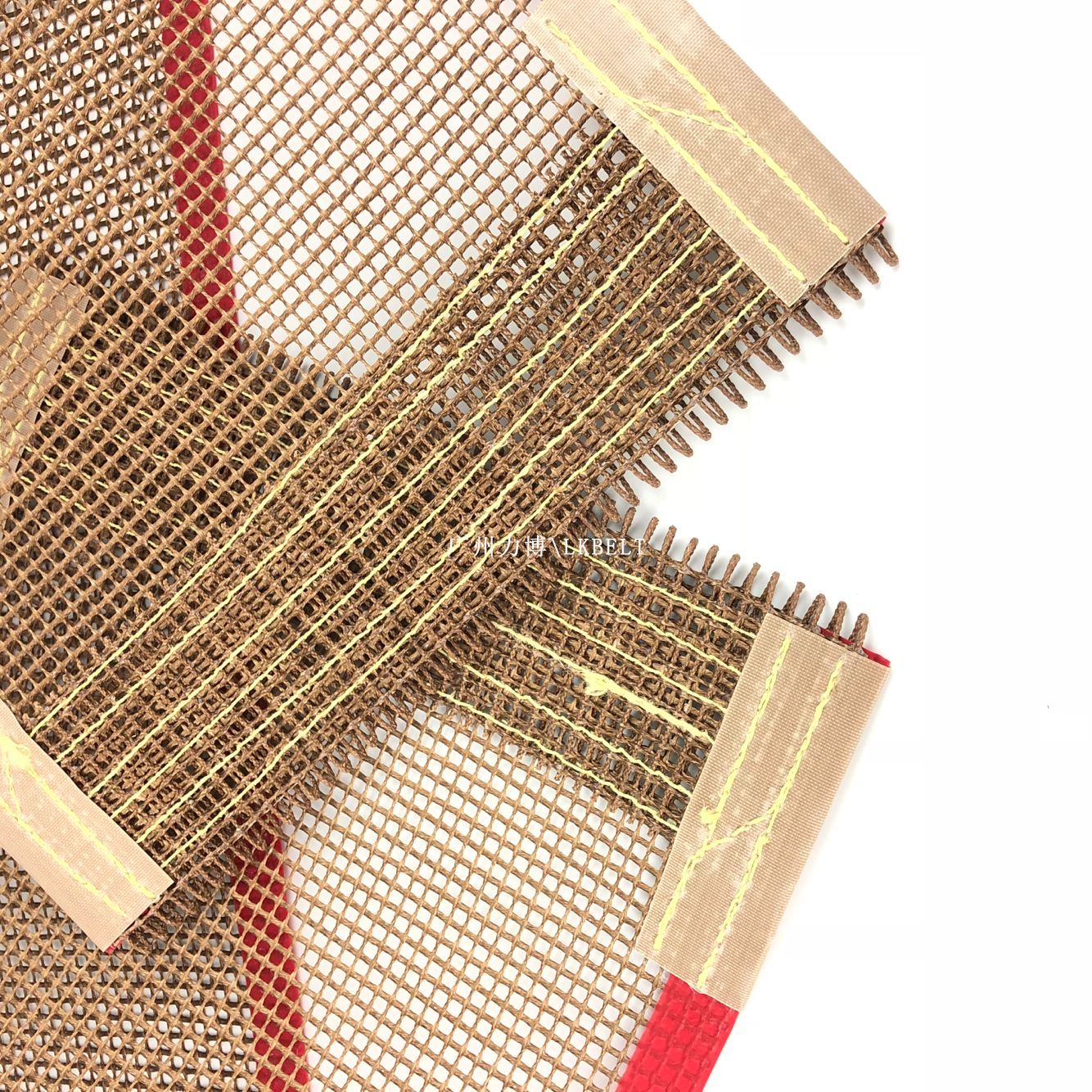

This PTFE-coated fiberglass mesh belt is shown with reinforced edges and an open joint. Select the mesh opening and finished belt dimensions together with the joint and edge arrangement required by the conveyor.
| Item | Details |
|---|---|
| Belt type | PTFE-coated fiberglass mesh |
| Construction shown | Open mesh with reinforced edges |
| Joint shown | Looped joint ends |
| Mesh selection | Select the item and mesh size from the range below |
| Order dimensions | Finished belt length and width |
Include the item number, joint details, dimensions and working conditions.
Mesh and colour options
Use the item number, colour and mesh opening together when describing the required construction. Include your existing belt reference or technical sheet with the enquiry.
| Item | Colour | Mesh opening (mm) |
|---|---|---|
| 6001 | Brown | 1 × 1 |
| 6001B | Black | 1 × 1 |
| 6003 | Black | 4 × 4 |
| 6004 | Brown | 4 × 4 |
| 6007 | Yellow & brown | 4 × 4 |
| 6008 | Brown | 4 × 4 |
| 6012 | Black | 4 × 4 |
| 6010 | Yellow | 4 × 4 |
| 6013 | Brown | 10 × 10 |
| 6014 | Brown | 0.5 × 1 |
| 6015 | Brown | 2 × 2.5 |
Joint and reinforced edge detail
Finished belt and operating conditions
| Item | Details |
|---|---|
| Belt size | Finished length, width, mesh opening and required item number |
| Joint | Existing joint type, connection details and installation access |
| Edge treatment | Edge reinforcement, width and any tracking or guiding arrangement |
| Thermal duty | Continuous and peak temperature, exposure time and heating method |
| Conveyor layout | Pulley diameters, support arrangement, belt speed and operating load |
| Product contact | Conveyed material, cleaning chemicals and any documentation requirements |
Matching the joint and edges
Send a close-up of the existing joint, connecting pin and edge treatment. Include the pulley diameters, belt route and operating temperature so the joint and reinforcement can be selected with the belt construction.
Request a PTFE mesh belt
Send the item number, finished dimensions and quantity, together with the operating temperature, joint and edge requirements. If an existing belt is being replaced, include its marking or technical sheet and photographs of the joint.
