PTFE-coated mesh conveyor belts
Choose a PTFE-coated mesh belt by its item number, mesh opening and reinforcement. The range below includes fiberglass constructions and a fiberglass/Kevlar option, with different thicknesses, weights and widths.
| Item | Details |
|---|---|
| Belt type | PTFE-coated mesh conveyor belt |
| Reinforcement options | Fiberglass; fiberglass + Kevlar for item 6007 |
| Mesh openings in range | 0.5 × 1 to 10 × 10 mm; see individual rows |
| Thicknesses in range | 0.5–1.2 mm; according to item number |
| Order dimensions | Finished belt length and width |
Include the item number, dimensions, joint and operating temperature.
Mesh belt specifications
Select the exact item number when comparing specifications. Finished belt selection should also account for the joint, edge treatment, operating load and heat exposure. Swipe the table sideways on a small screen.
| Item | Mesh (mm) | Reinforcement | Thickness (mm) | Weight (g/m²) | Temperature range (°C) | Max. width (mm) | Tensile strength (N/cm) |
|---|---|---|---|---|---|---|---|
| 6001 | 1×1 | Fiberglass | 0.5 | 370 | −70 to +260 | 3000 | 310/290 |
| 6002 | 2×2 | Fiberglass | 0.7 | 450 | −70 to +260 | 3000 | 350/310 |
| 6003 | 4×4 | Fiberglass | 1.0 | 400 | −70 to +260 | 4000 | 390/320 |
| 6004 | 4×4 | Fiberglass | 1.0 | 450 | −70 to +260 | 4000 | 390/320 |
| 6007 | 4×4 | Fiberglass+Kevlar | 1.2 | 600 | −70 to +260 | 4000 | 895/370 |
| 6008 | 4×4 | Fiberglass | 1.0 | 500 | −70 to +260 | 4000 | 395/370 |
| 6010 | 4×4 | Fiberglass | 1.0 | 500 | −70 to +260 | 4000 | 900/600 |
| 6012 | 4×4 | Fiberglass | 1.0 | 550 | −70 to +260 | 4000 | 395/370 |
| 6013 | 10×10 | Fiberglass | 1.2 | 450 | −70 to +260 | 3000 | 360/300 |
| 6014 | 0.5×1 | Fiberglass | 0.5 | 420 | −70 to +260 | 3000 | 310/290 |
| 6015 | 2×2.5 | Fiberglass | 0.9 | 600 | −70 to +260 | 3000 | 390/320 |

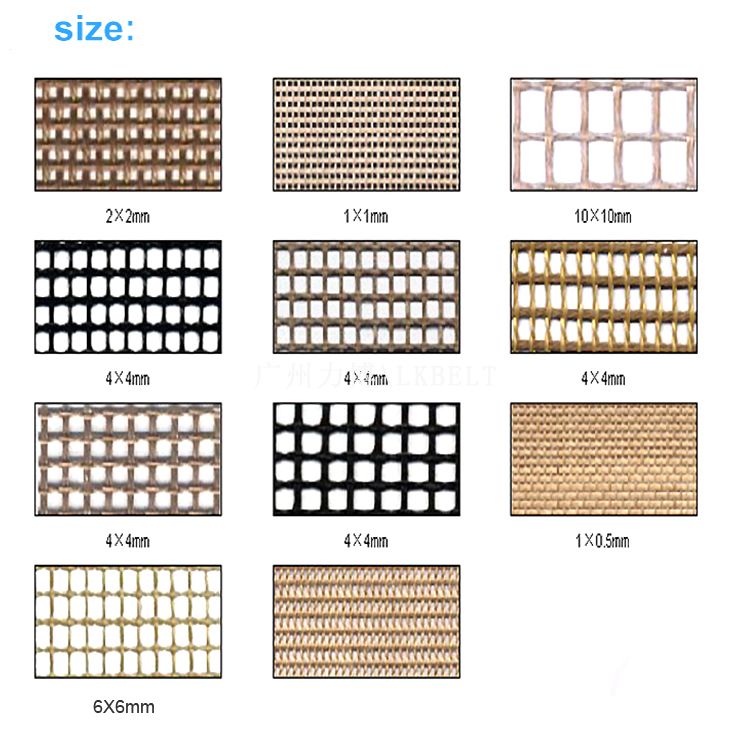

Mesh appearance reference
Finished belt and operating conditions
| Item | Details |
|---|---|
| Belt size | Finished length, width, mesh opening and required item number |
| Joint | Existing joint type, connection details and installation access |
| Edge treatment | Edge reinforcement, width and any tracking or guiding arrangement |
| Thermal duty | Continuous and peak temperature, exposure time and heating method |
| Conveyor layout | Pulley diameters, support arrangement, belt speed and operating load |
| Product contact | Conveyed material, cleaning chemicals and any documentation requirements |
Choosing the mesh and reinforcement
Match the opening size to the conveyed product and process. Include the support arrangement and required width when comparing fiberglass and fiberglass/Kevlar constructions. Provide photographs of the existing weave and edges for a replacement enquiry.
Request a PTFE mesh belt
Send the item number, finished dimensions and quantity, together with the operating temperature, joint and edge requirements. If an existing belt is being replaced, include its marking or technical sheet and photographs of the joint.
