BATK10-PAZ-APL PU timing belt

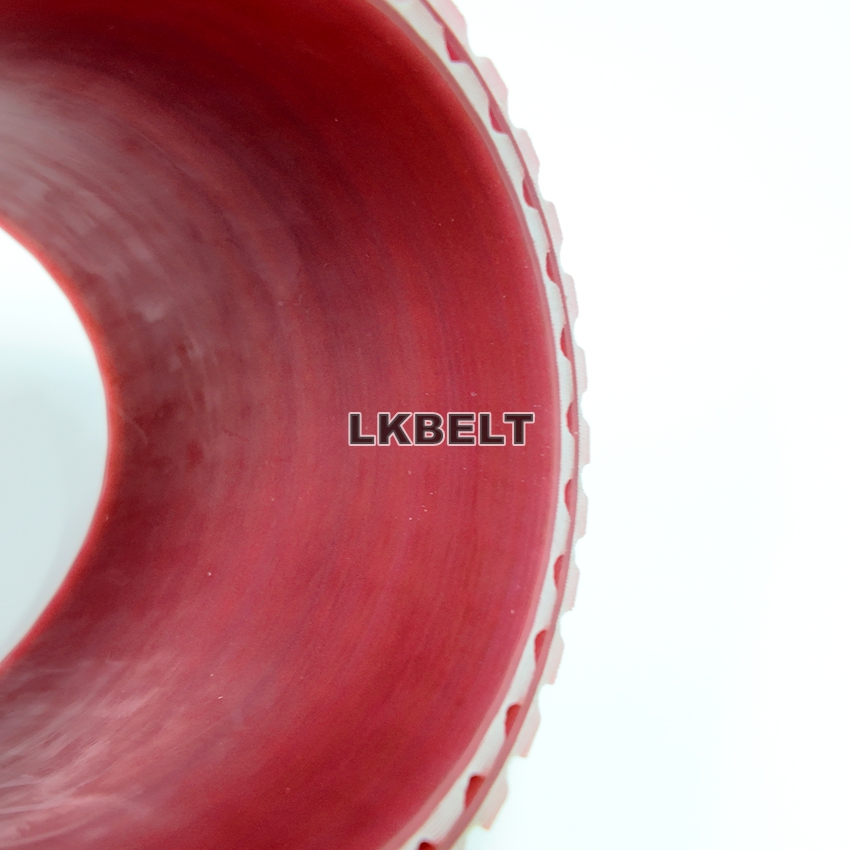

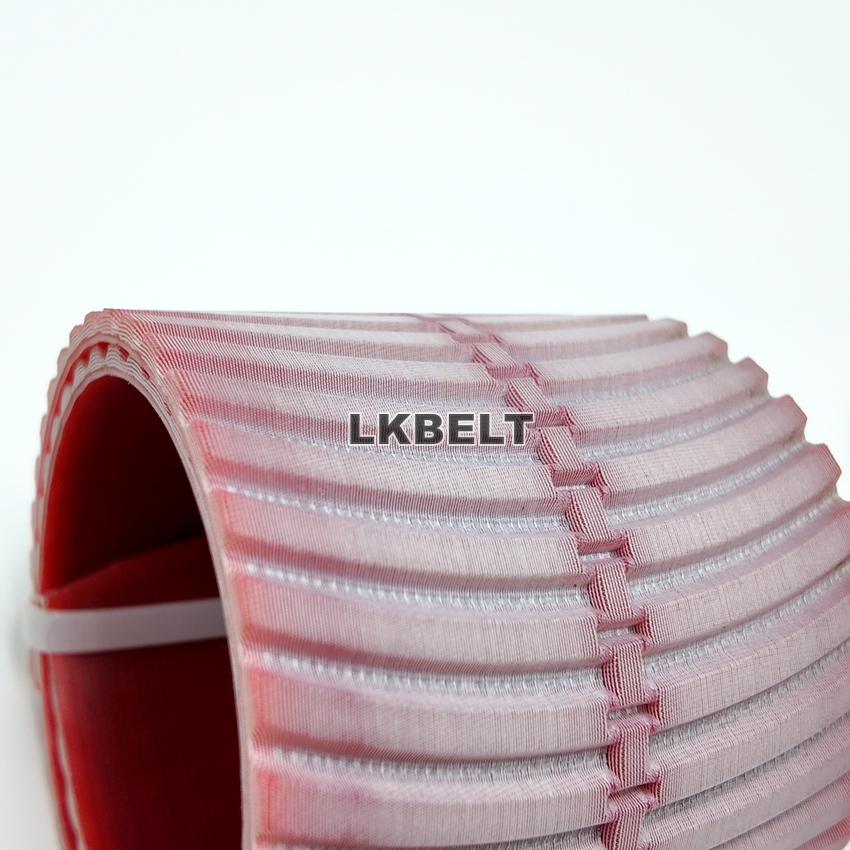

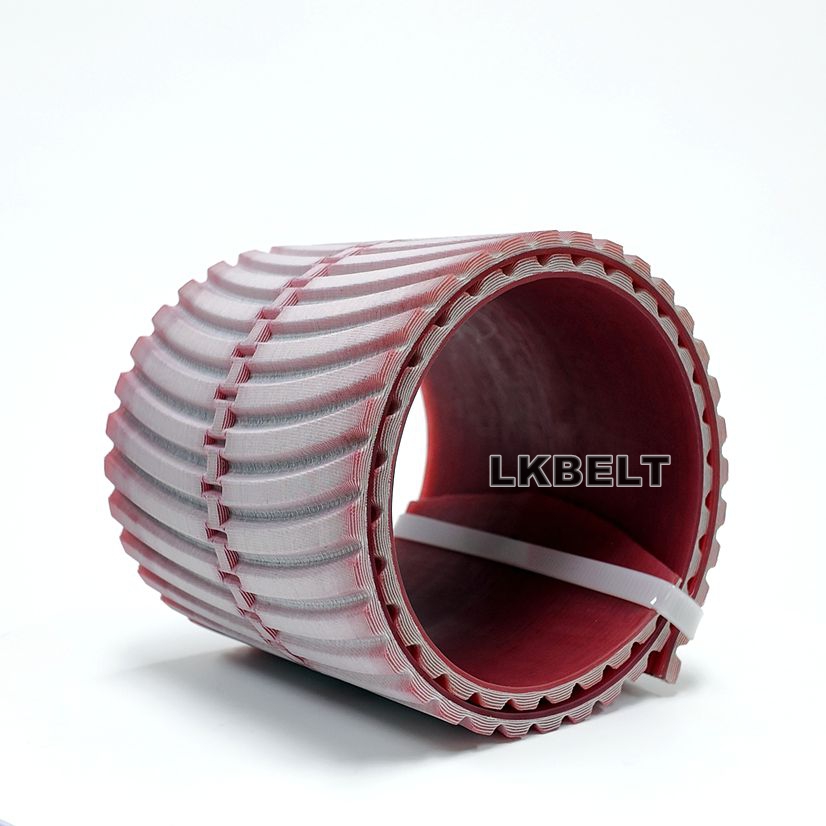

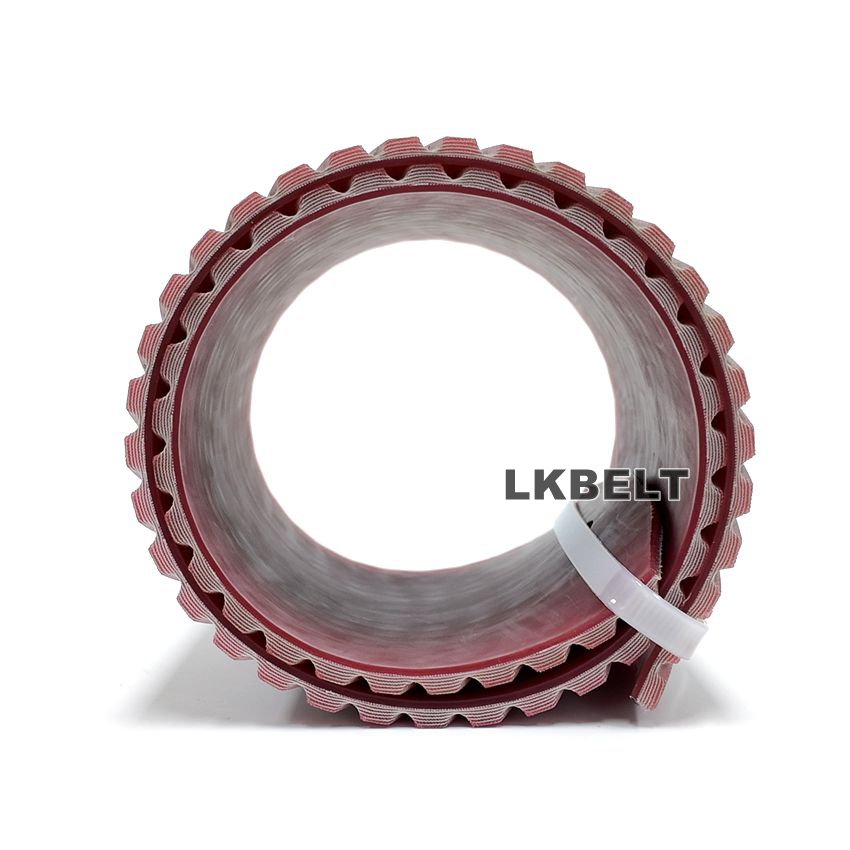

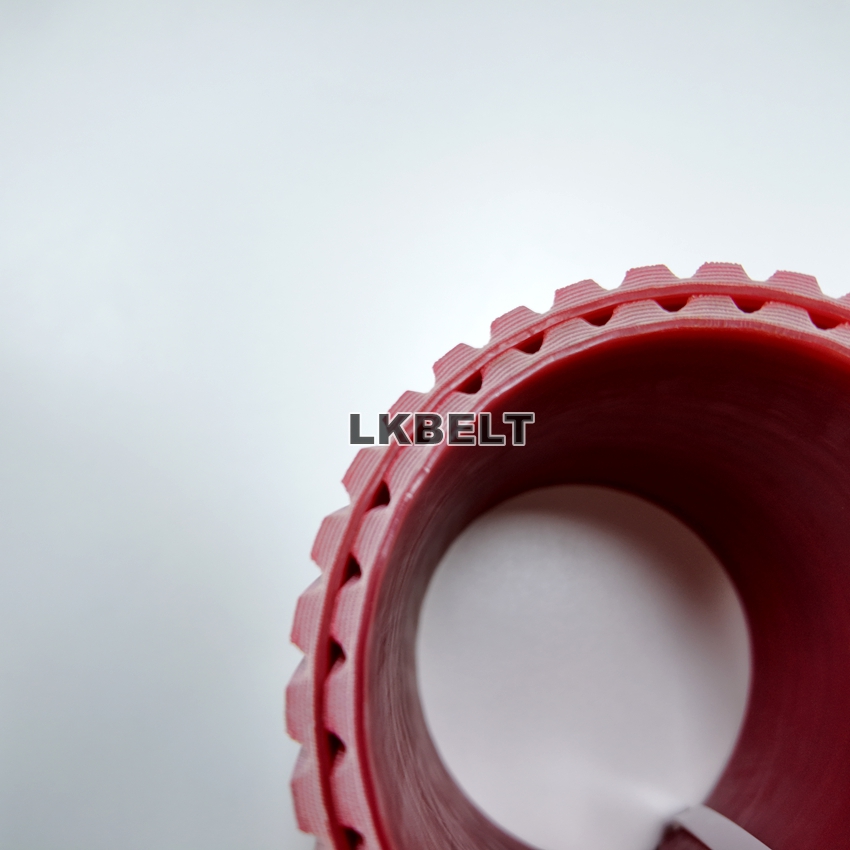

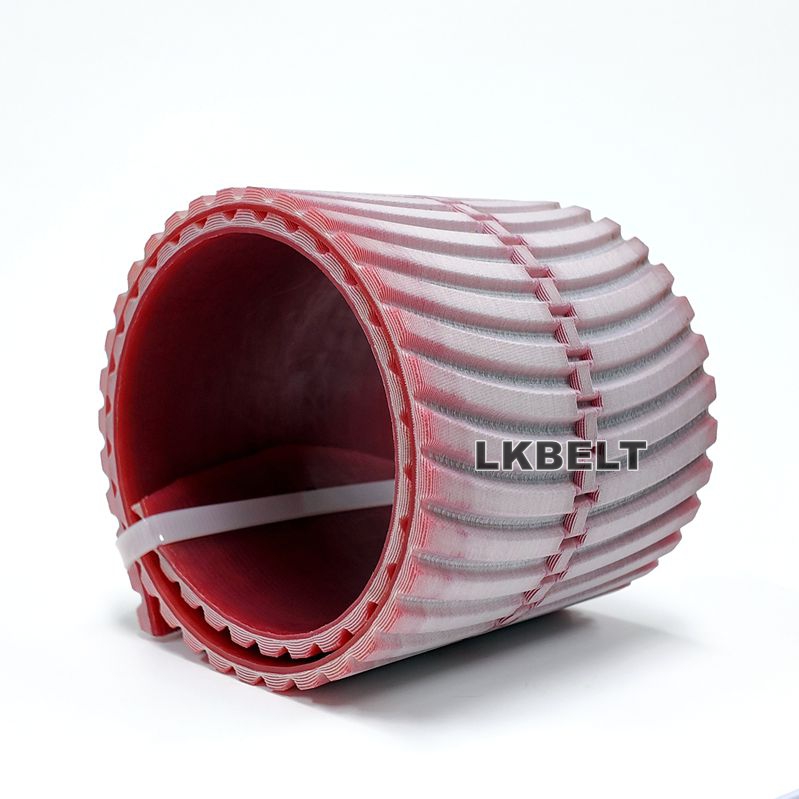

For the BATK10-PAZ-APL PU timing belt shown in the gallery, send the marking on your existing belt, a pulley drawing or a belt sample, along with the required width and finished length. Include close-up photos of both the toothed side and the outer surface so we can discuss the construction you need.
| Item | Product details |
|---|---|
| Designation | BATK10-PAZ-APL |
| Product type | PU timing belt |
| Tooth profile and pitch | Match to your pulley drawing or belt sample |
| Width and finished length | Specify in your inquiry |
Please share your pulley drawing or belt sample so we can match the tooth profile for your machine.
What to send for a quote
Share the belt marking or machine model, belt width, finished length or tooth count, and a pulley drawing or existing belt sample. Photos of the tooth side and outer surface help us discuss the required surface treatment; please also describe the operating conditions.
Timing belt profile comparison
Compare the tooth profiles below. To choose a replacement, match the belt tooth profile to your pulley drawing or sample; dimensions for other profiles should not be used for your machine.
| Profile | Pitch (mm) | Tooth thickness (mm) | Belt thickness including teeth (mm) |
|---|---|---|---|
| T2.5 | 2.5 | 0.7 | 1.6 |
| T5 | 5 | 1.2 | 2.2 |
| T10 | 10 | 2.5 | 4.5 |
| T20 | 20 | 5 | 8 |
| AT5 | 5 | 1.2 | 2.7 |
| AT10 | 10 | 2.5 | 4.5 |
| AT20 | 20 | 5 | 8 |
| H | 12.7 | 2.29 | 4.29 |
| XH | 22.225 | 6.35 | 11.2 |
| L | 9.525 | 1.91 | 3.61 |
| XL | 5.08 | 1.27 | 2.3 |
| 3M | 3 | 1.21 | 2.4 |
| 5M | 5 | 2.1 | 3.7 |
| 8M | 8 | 3.38 | 5.6 |
| 14M | 14 | 6.1 | 10 |
| S3M | 3 | 1.14 | 2.9 |
| S5M | 5 | 1.85 | 3.35 |
| S8M | 8 | 3.05 | 5.3 |
| S14M | 14 | 5.3 | 10.2 |
| RPP5M | 5 | 2.05 | 3.8 |
| RPP8M | 8 | 3.2 | 5.4 |
| RPP14M | 14 | 5.85 | 9.7 |
