Double-fabric PU conveyor belt 2UT0612-FDA

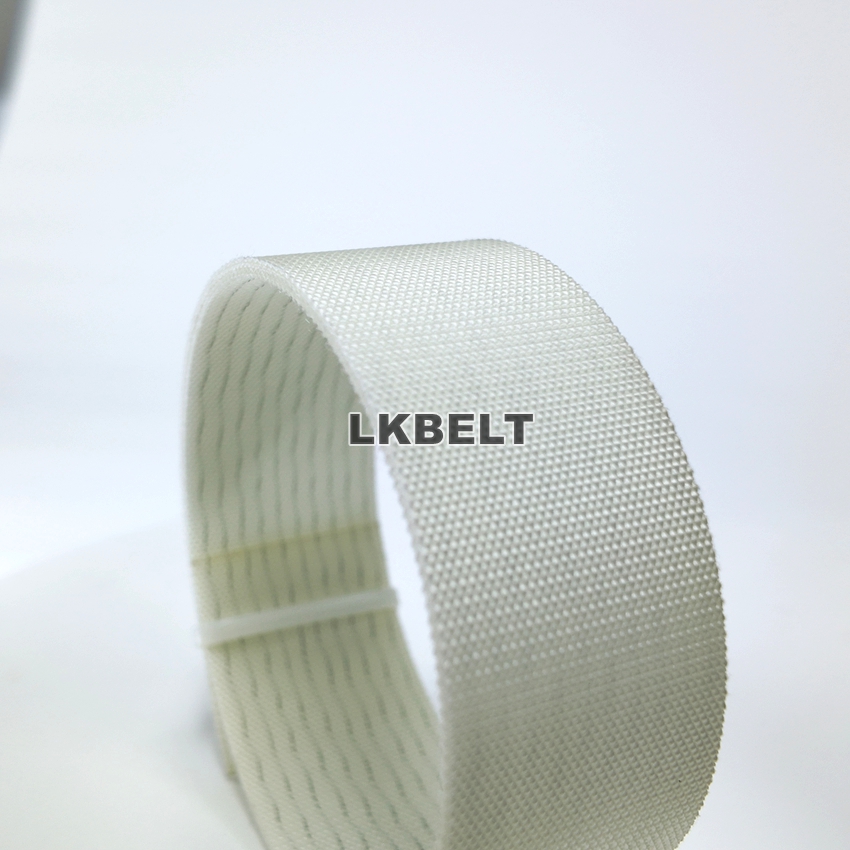

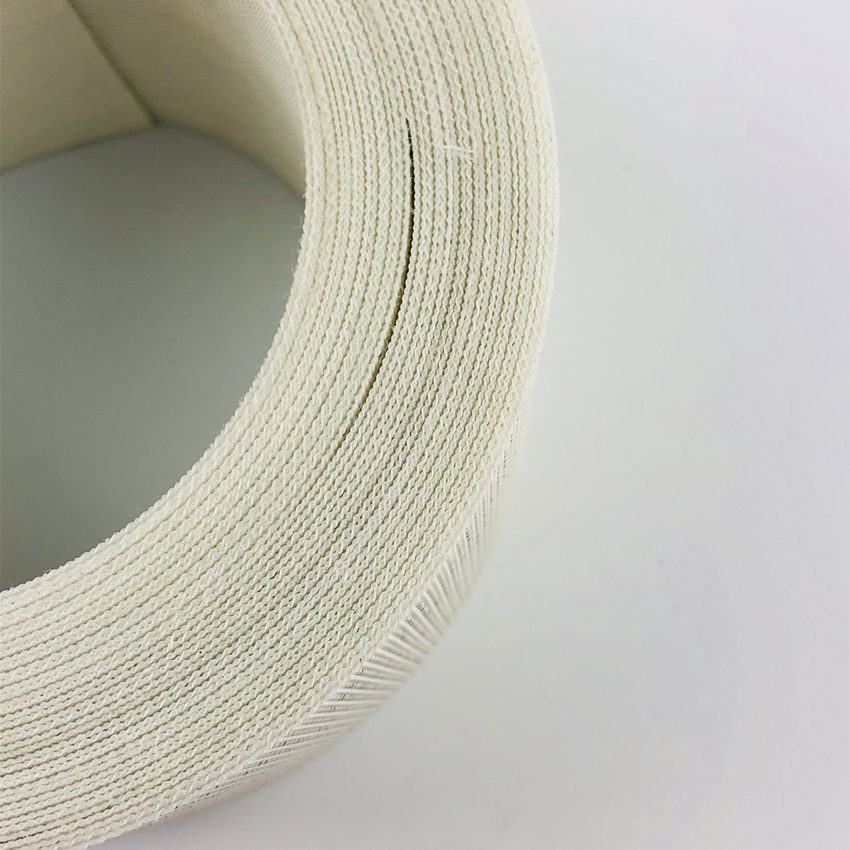

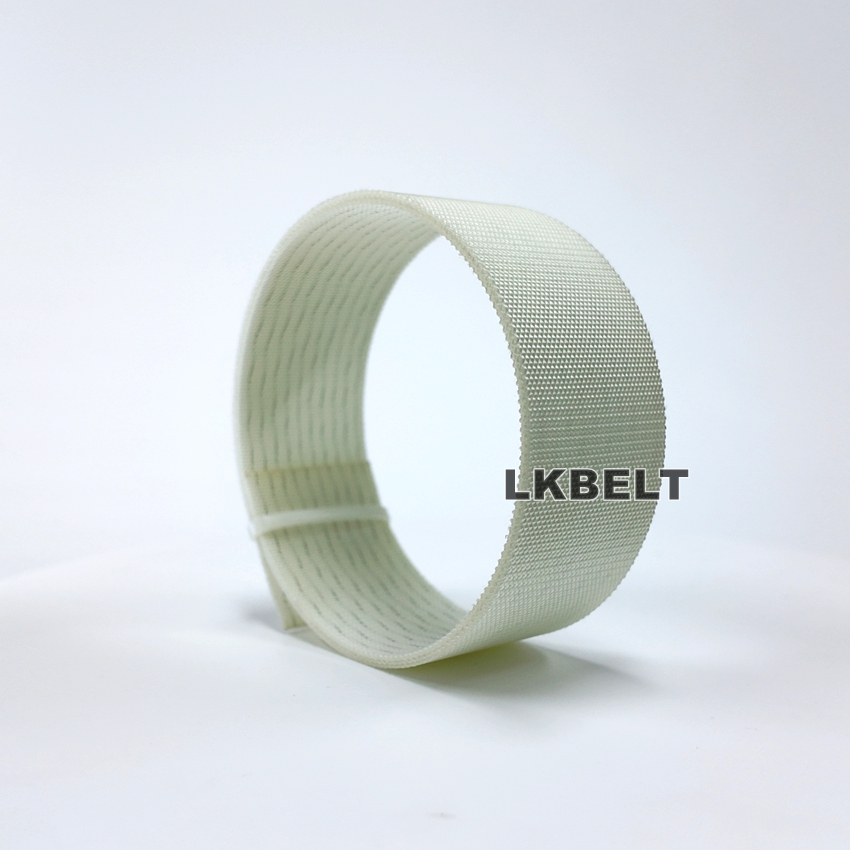

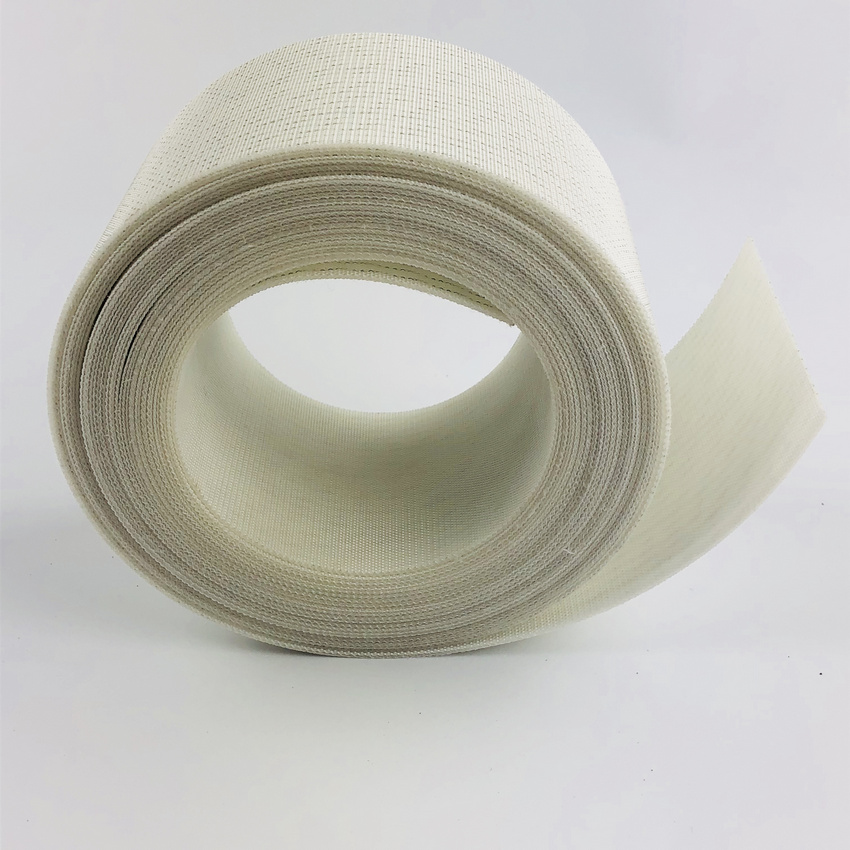

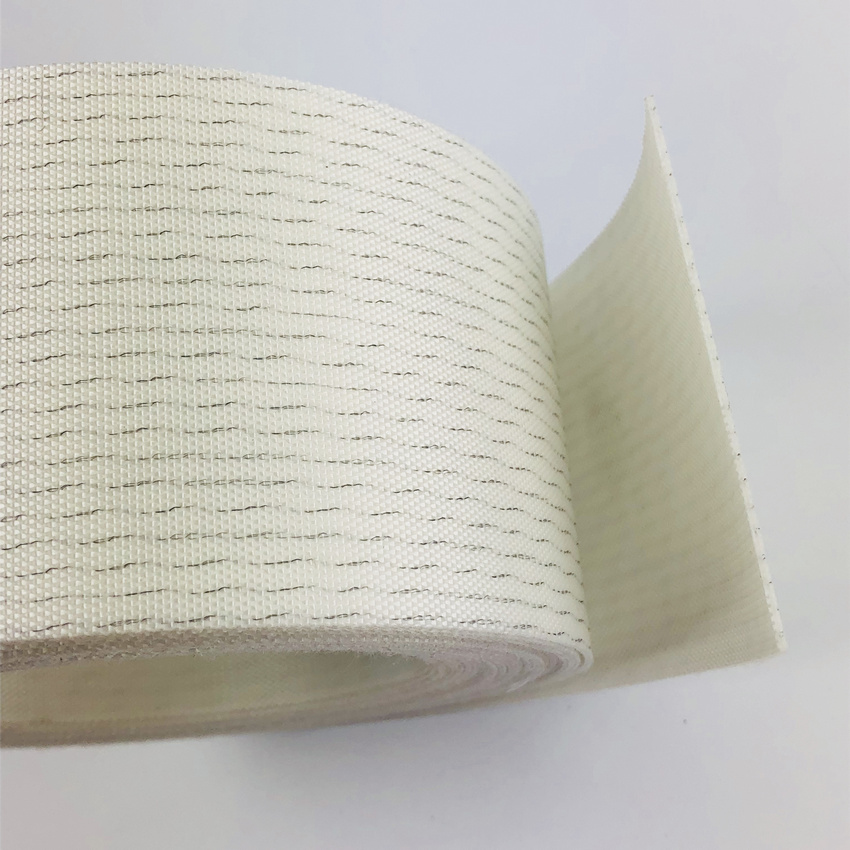

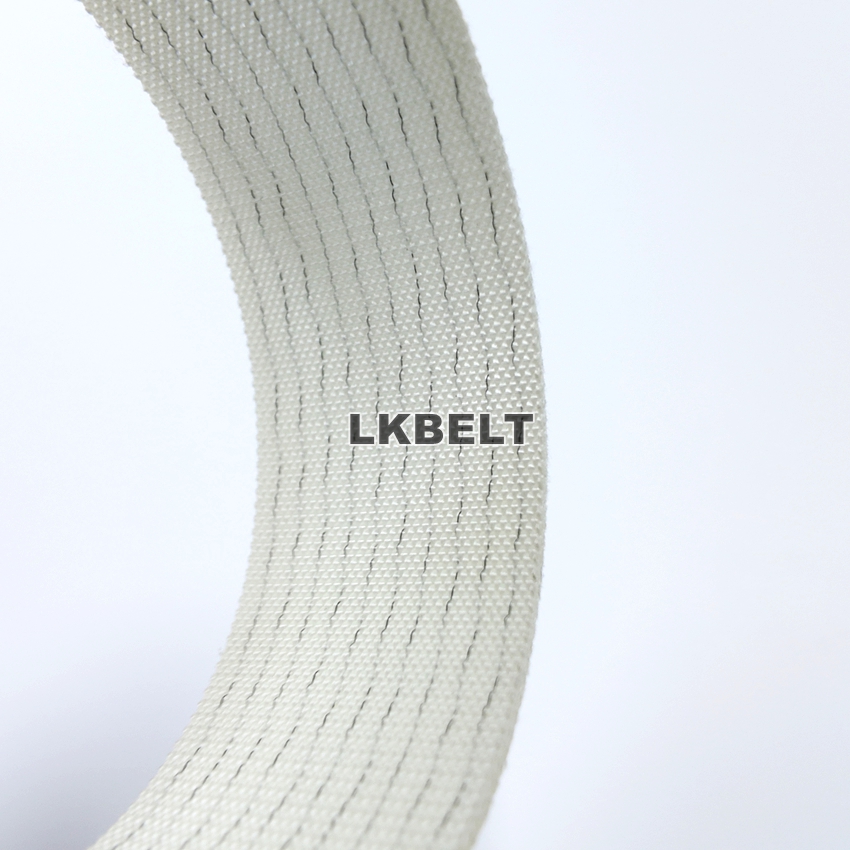

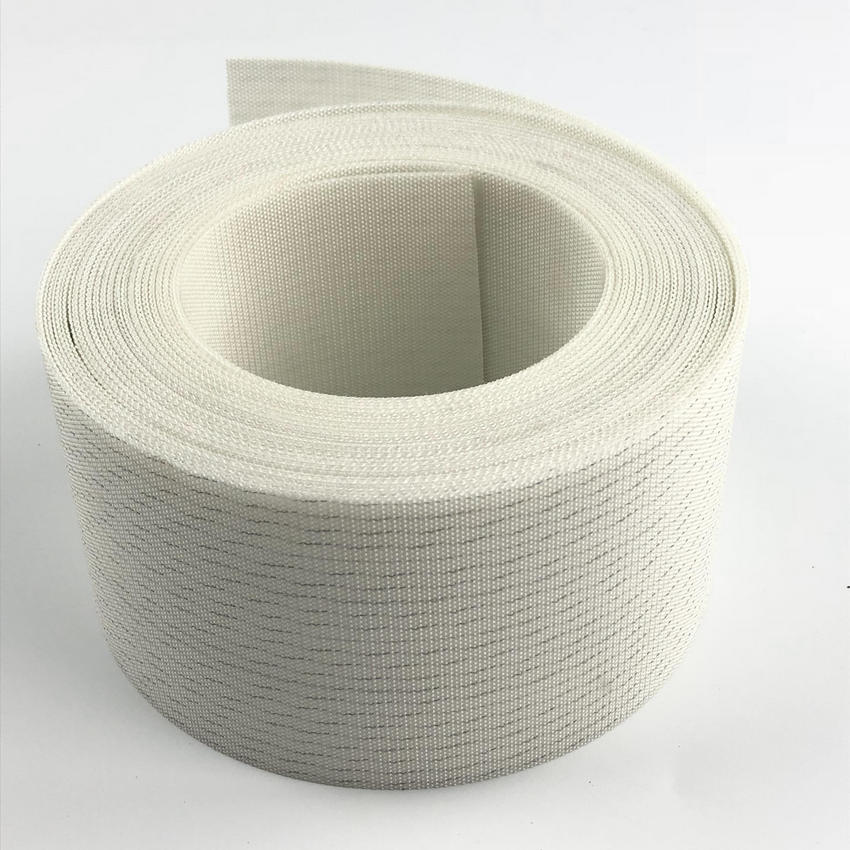

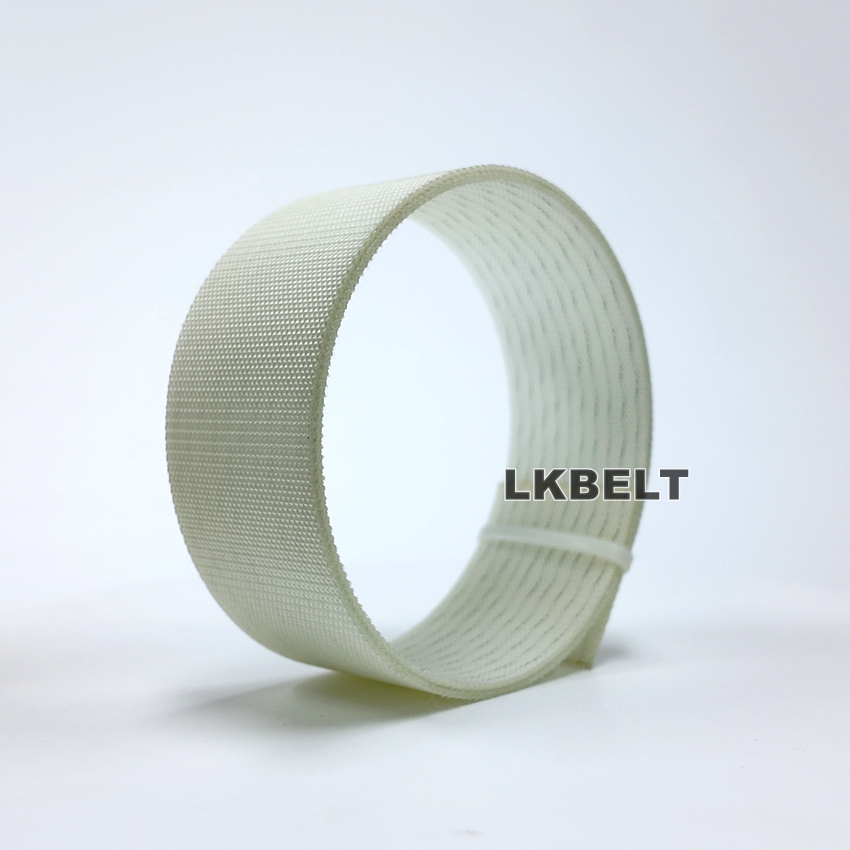

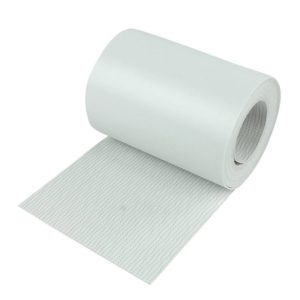

2UT0612-FDA is a double-fabric PU conveyor belt with a light-coloured woven appearance. The photographs show the fabric texture, rolled material and belt edges. Specify the finished dimensions and joint to suit the conveyor layout.
| Item | Product details |
|---|---|
| Model | 2UT0612-FDA |
| Construction | Double fabric with PU |
| Material | PU (polyurethane) |
| Surface shown | Light-coloured, fabric-textured |
| Underside | Fabric |
| Order dimensions | Finished length, width, total thickness and tolerances |
Send the model, belt dimensions and quantity to request a quote.

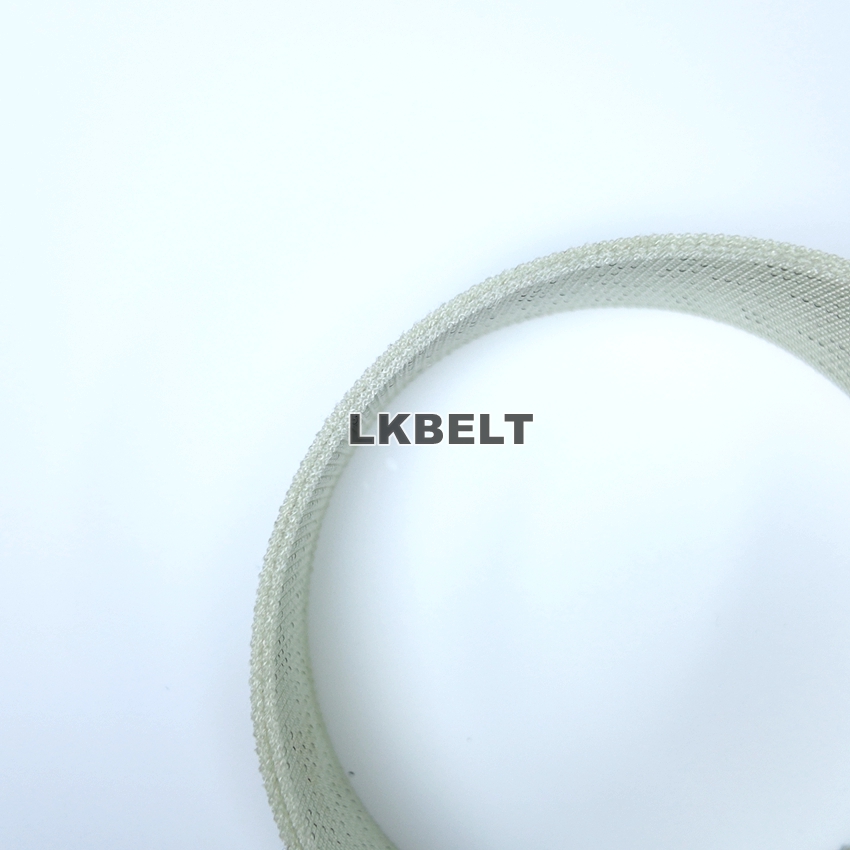

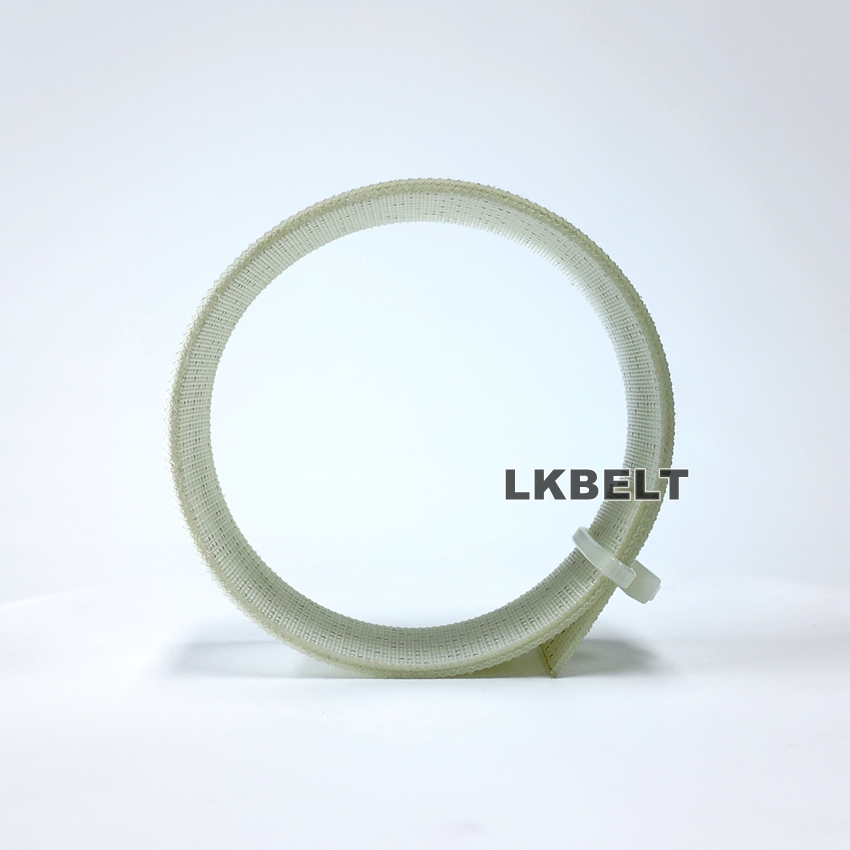

Surface and fabric details
Specify the finished belt
| Detail | Information to provide |
|---|---|
| Machine | Conveyor manufacturer, model and installation layout |
| Belt size | Finished length, width, thickness and tolerances |
| Drive and support | Pulley diameters, support bed, tensioning and tracking arrangement |
| Joint and processing | Joint type, installation access and any guides, cleats or sidewalls |
| Operating duty | Conveyed product, speed, load, temperature and cleaning method |
Jointing and custom processing
Include photographs of the carrying face, underside, edges and existing joint. For cleats, sidewalls or underside guides, provide their dimensions and positions on a drawing. The belt construction and processing should be matched to the pulley arrangement and conveyor clearances.
Food-contact requirements
For food-contact applications, include the food type, contact temperature, cleaning process and destination-market requirements in your inquiry. Request the relevant material and compliance documentation for the selected belt construction.
PU conveyor belt range reference
The following eight models are separate PU belt options. Choose a model and construction to suit the application; the range values do not identify the pictured belt. Select the complete construction for your conveyor. Scroll sideways to view the full table on smaller screens.
| Model | Thickness (mm) | Colour | Layers | Weight (kg/m²) | Minimum pulley (mm) |
|---|---|---|---|---|---|
| F-2T0607-FDA | 1.3 | White / blue | 2 | 1.5 | 25 |
| R-2M1795-FDA | 1.5 | White / blue | 2 | 1.7 | 40 |
| R-2M1712-FDA | 1.3 | White / blue | 2 | 1.4 | 20 |
| R-1M0980-FDA | 0.8 | White / blue | 1 | 0.8 | 16 |
| R-2M0830-FDA | 3.0 | White / blue | 2 | 3.2 | 60 |
| R-2M0916 | 1.5 | Dark green / white | 2 | 1.7 | 40 |
| R-3M0835-A0 | 3.5 | Black | 3 | 4.0 | 80 |
| R-3M0832-A20 | 3.2 | Dark green / white | 3 | 3.5 | 80 |
Request a PU conveyor belt
Send the model, finished belt dimensions, quantity and a drawing or sample. Include the joint, processing and operating requirements so the quotation can cover the complete belt.
