PVC canvas conveyor belt

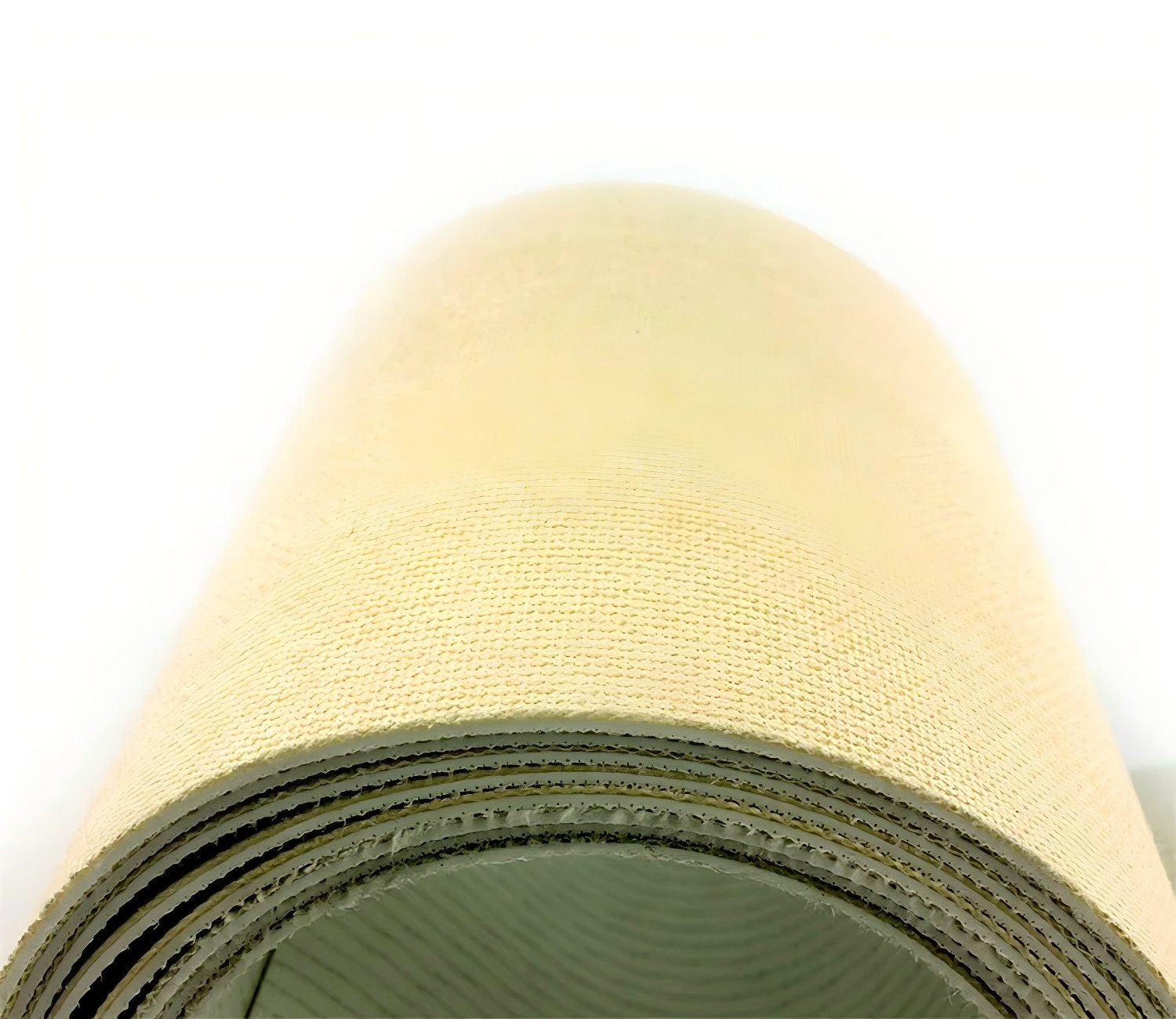

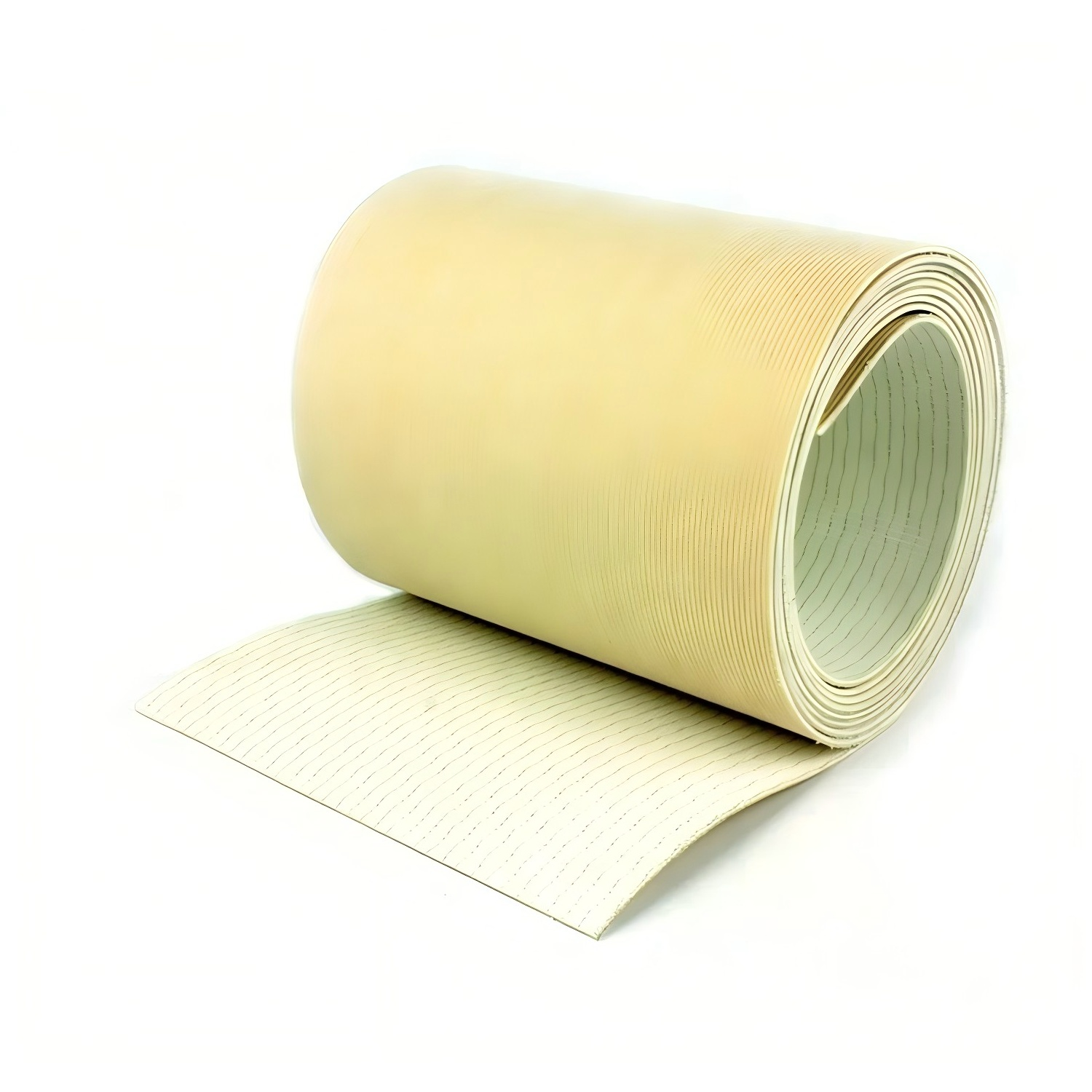

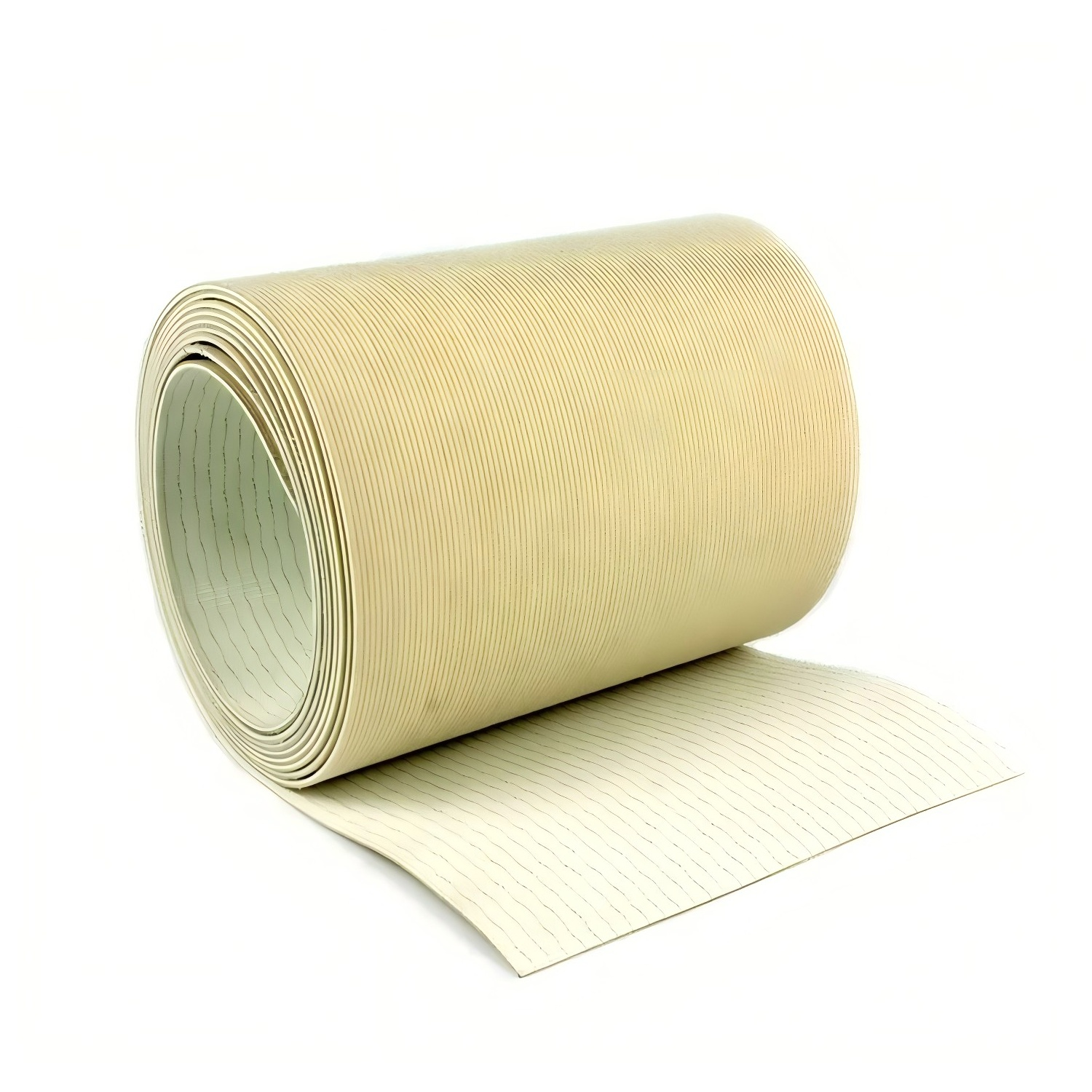

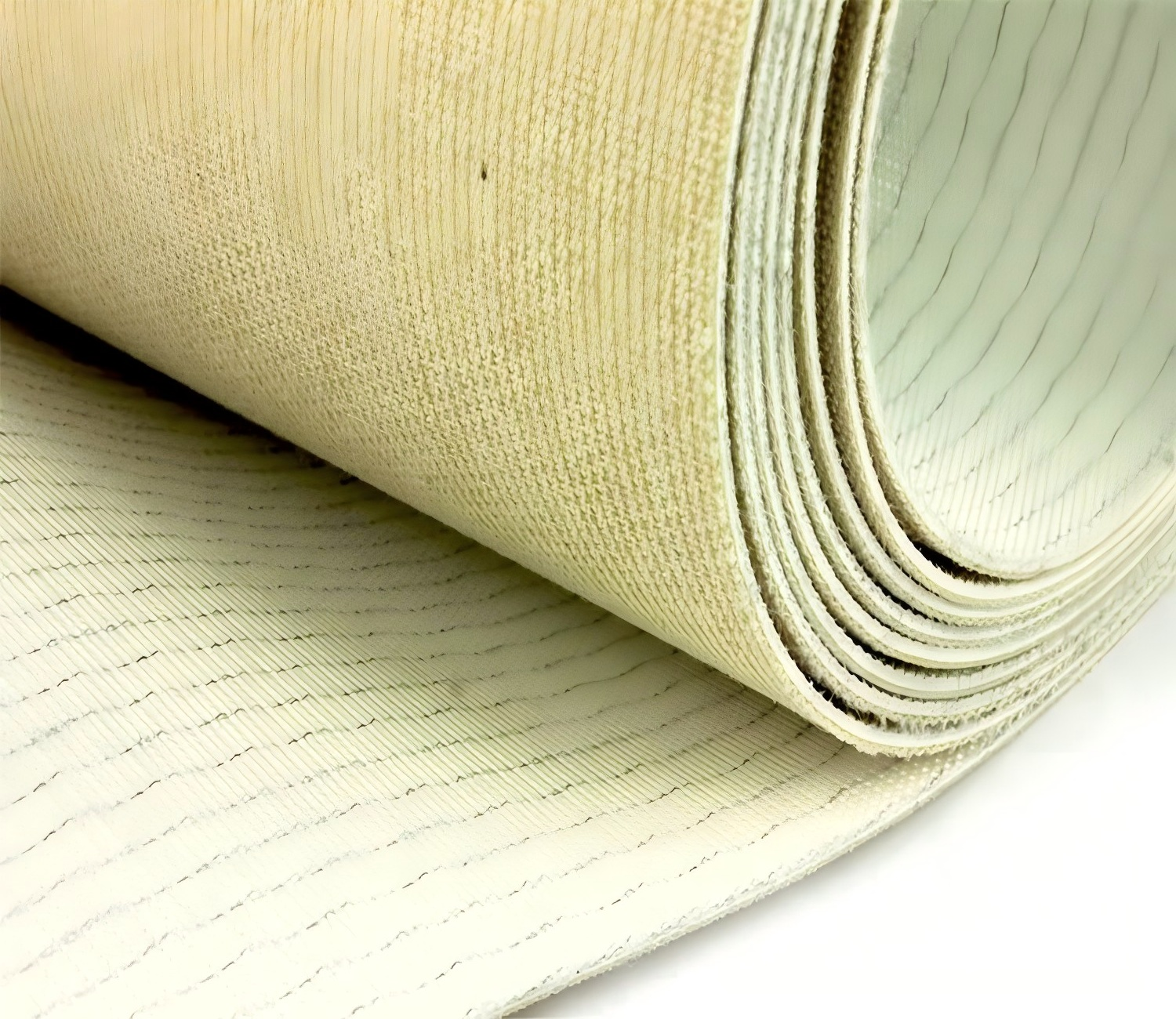

This canvas conveyor belt combines a woven carrying face with a fabric-backed construction. The photographs show the cream-coloured surface, underside and layered edge. Specify the complete construction and conveyor dimensions when requesting a replacement or a belt for a food-handling process.
| Item | Product details |
|---|---|
| Product | PVC canvas conveyor belt |
| Carrying face | Woven canvas surface |
| Colour shown | Cream |
| Construction | Layered belt with fabric underside |
| Order dimensions | Finished length, width and total thickness |
Send the belt dimensions, process details and quantity to request a quote.

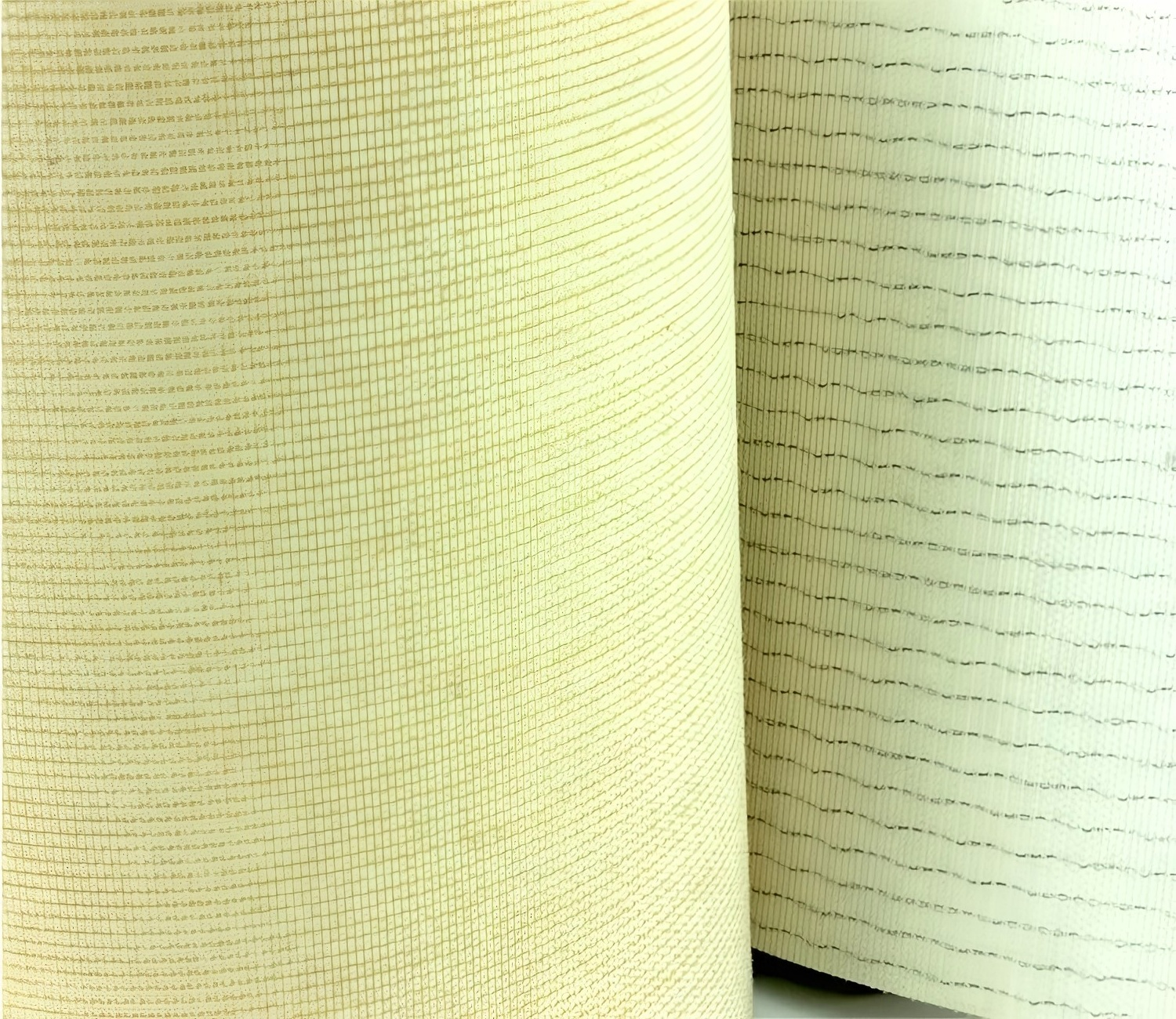

Canvas face and underside
Specify the finished belt
| Detail | Information to provide |
|---|---|
| Size | Finished length, width, total thickness and tolerances |
| Surface and fabric | Required canvas texture, fabric construction and photographs of both faces |
| Conveyor | Machine model, pulley diameters, support bed and tracking arrangement |
| Joint and edges | Joint type, installation access and any edge or guide requirements |
| Process | Conveyed product, speed, load, temperature, cleaning and food-contact requirements |
Food-contact and cleaning requirements
For direct food contact, specify the food type, contact temperature and cleaning chemicals. Request the applicable documentation for the selected material and finished belt. Include the cleaning method and frequency so the canvas face, belt construction and joint can be selected for the process.
Joint and conveyor fit
Provide photographs of the existing joint, carrying face, underside and edges. Select the joint for the actual layered construction, pulley sizes and installation access. If guides or additional fabrication are required, show their dimensions and positions on the conveyor drawing.
PVC flat-belt range reference
The following are separate PVC flat-belt models. Their thicknesses and layer counts do not specify this canvas belt. Match the full model, colour and construction when selecting a belt from the range. Scroll the table sideways on smaller screens.
| Model | Thickness (mm) | Colour | Layers |
|---|---|---|---|
| Mahjong Belt FW-08 | 0.8 | Dark green | 1 |
| Mahjong Belt FW-16 | 1.6 | Dark green | 1 |
| PB10 | 1.0 | Green | 1 |
| N-A15 | 2.2 | White | 1 |
| F-2M0576 | 2.0 | Green | 2 |
| PB20 | 2.0 | Green | 2 |
| PB20-A0-H | 2.0 | Dark green | 2 |
| PB30-A0-H | 3.0 | Dark green | 2 |
| PB40-3M | 4.0 | Dark green | 2 |
| F-2M0090 | 2.8 | Green | 2 |
| PB30 | 3.0 | Green | 2 |
| PB22-A18 | 2.2 | Green | 2 |
| PB20-B-A0 | 2.0 | Black | 2 |
| PB30-A18 | 3.0 | Green | 2 |
| PB40-3M | 4.0 | Green | 3 |
| PB50-3M | 5.0 | Green | 3 |
| PB50-3M-A18 | 5.0 | Green | 3 |
Request a canvas conveyor belt
Send the finished dimensions, quantity, machine details and operating conditions. Include a sample or clear photographs of both faces and the belt edge to help match the canvas construction and joint.
