Wide PU timing belt

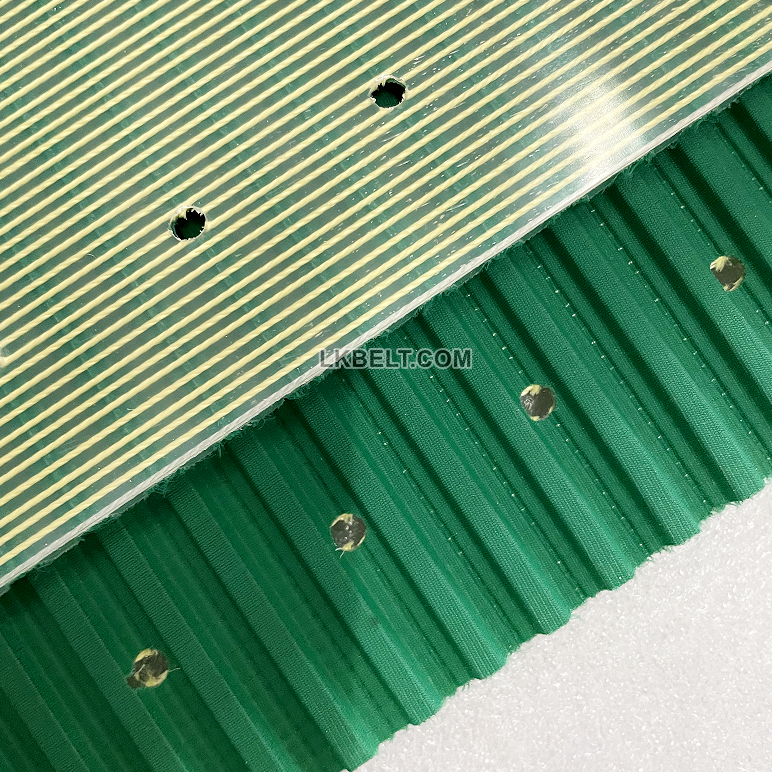

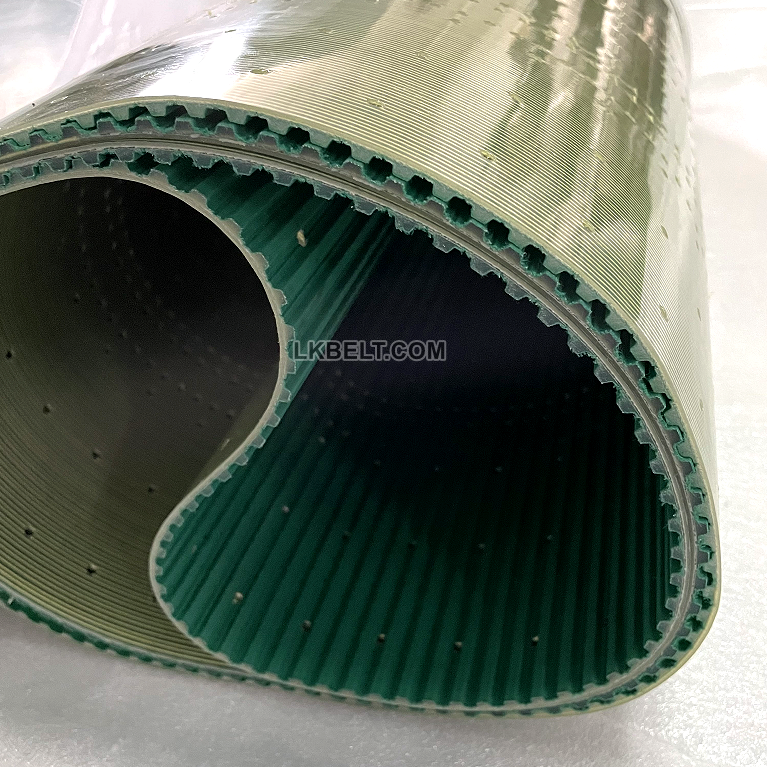

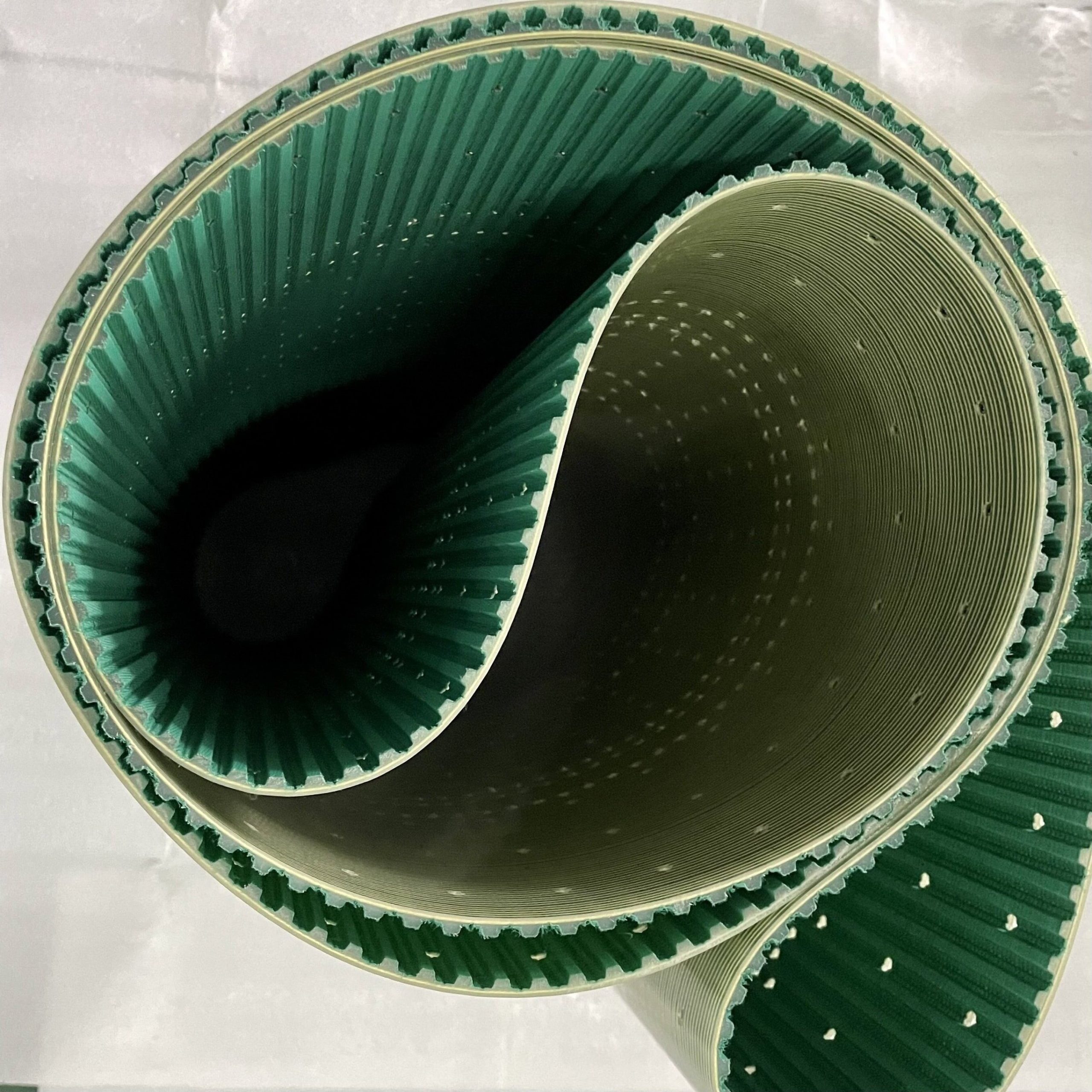

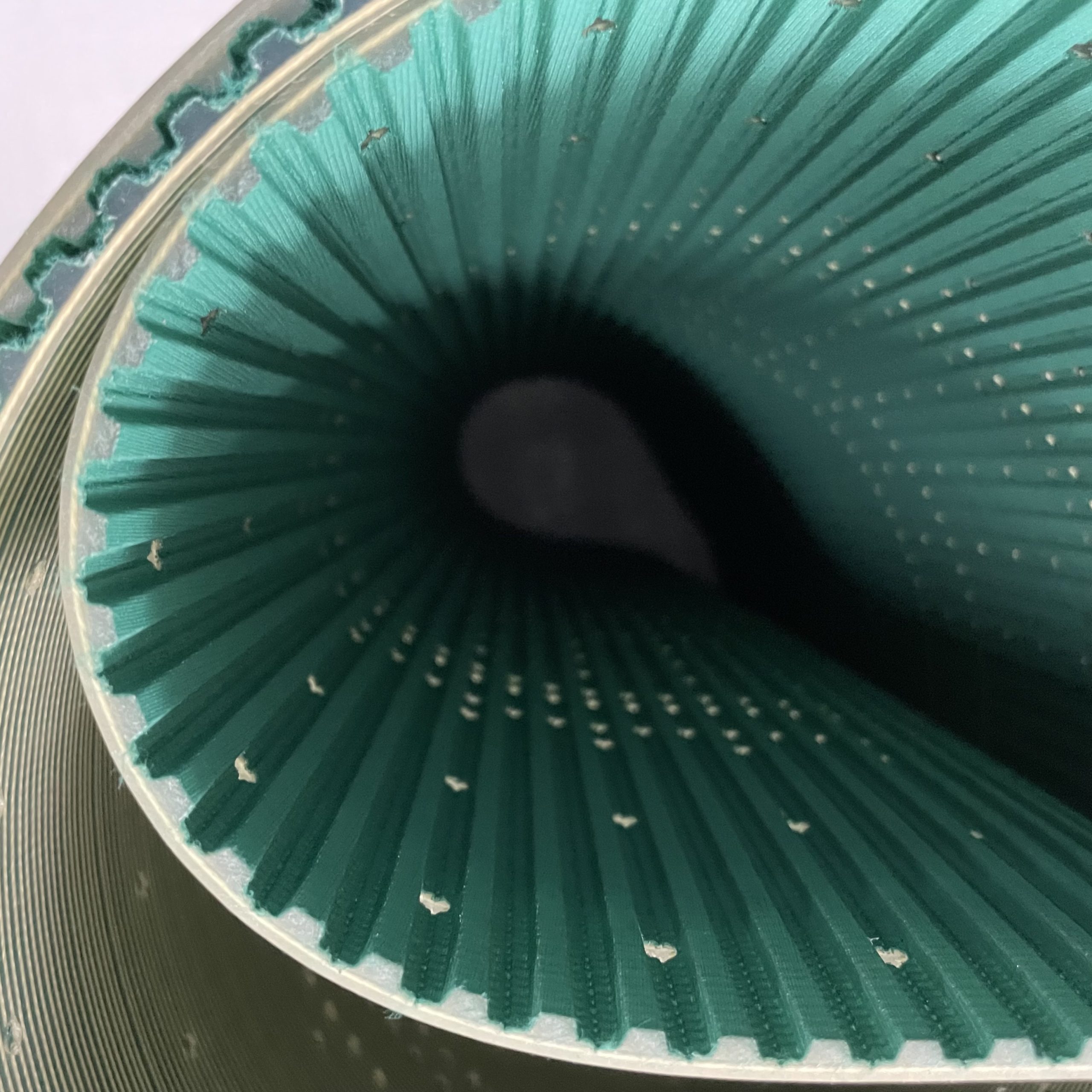

For a wide PU timing belt, specify the full working width and finished length together with the pulley profile. The photos show the belt body, tooth side and edge detail. Send an existing belt sample or a dimensioned drawing so we can discuss the construction and any machining required for your equipment.
| Item | Product details |
|---|---|
| Designation | Wide PU timing belt |
| Product type | PU timing belt |
| Tooth profile and pitch | Match to your pulley drawing or belt sample |
| Width and finished length | Specify in your inquiry |
Please share your pulley drawing or belt sample so we can match the tooth profile for your machine.
Dimensions and machining details
Send the required belt width, finished length or tooth count, pulley drawing and operating conditions. If holes, slots or other machining are required, include their dimensions, positions and tolerances on a drawing. Add details of the contact surface and any backing or tooth-facing material needed for your machine.
Timing belt profile comparison
Compare the tooth profiles below. To choose a replacement, match the belt tooth profile to your pulley drawing or sample; dimensions for other profiles should not be used for your machine.
| Profile | Pitch (mm) | Tooth thickness (mm) | Belt thickness including teeth (mm) |
|---|---|---|---|
| T2.5 | 2.5 | 0.7 | 1.6 |
| T5 | 5 | 1.2 | 2.2 |
| T10 | 10 | 2.5 | 4.5 |
| T20 | 20 | 5 | 8 |
| AT5 | 5 | 1.2 | 2.7 |
| AT10 | 10 | 2.5 | 4.5 |
| AT20 | 20 | 5 | 8 |
| H | 12.7 | 2.29 | 4.29 |
| XH | 22.225 | 6.35 | 11.2 |
| L | 9.525 | 1.91 | 3.61 |
| XL | 5.08 | 1.27 | 2.3 |
| 3M | 3 | 1.21 | 2.4 |
| 5M | 5 | 2.1 | 3.7 |
| 8M | 8 | 3.38 | 5.6 |
| 14M | 14 | 6.1 | 10 |
| S3M | 3 | 1.14 | 2.9 |
| S5M | 5 | 1.85 | 3.35 |
| S8M | 8 | 3.05 | 5.3 |
| S14M | 14 | 5.3 | 10.2 |
| RPP5M | 5 | 2.05 | 3.8 |
| RPP8M | 8 | 3.2 | 5.4 |
| RPP14M | 14 | 5.85 | 9.7 |
