Rubber-coated timing belt for packing machinery
This timing belt combines a toothed drive surface with an outer rubber covering for packing-machine applications. Match the base-belt profile to the pulley and specify the covering to suit the product it contacts.
| Item | Product details |
|---|---|
| Product | Rubber-coated timing belt |
| Application | Packing machinery |
| Materials | CR rubber, glass fibre and nylon cloth |
| Hardness reference | 75 ± 5 Shore A |
| Order dimensions | Profile, width, length and covering thickness |
Include the required covering hardness and material in your enquiry.
Base belt and contact covering
The construction uses CR rubber, glass-fibre reinforcement and nylon cloth. Specify the outer covering separately, including its compound, thickness, hardness and surface finish. The covering and base belt must be matched to the machine as a complete assembly.
| Detail | Information to provide |
|---|---|
| Base belt | Full profile designation, width and pitch length or tooth count |
| Covering | Compound, thickness, Shore A hardness and required contact finish |
| Finished assembly | Overall thickness, dimensional tolerances and joint arrangement |
| Working conditions | Speed, load, continuous temperature, short-term peaks and exposure duration |
| Contact and cleaning | Product being handled, contact pressure, oils and cleaning agents |
Colour and surface selection

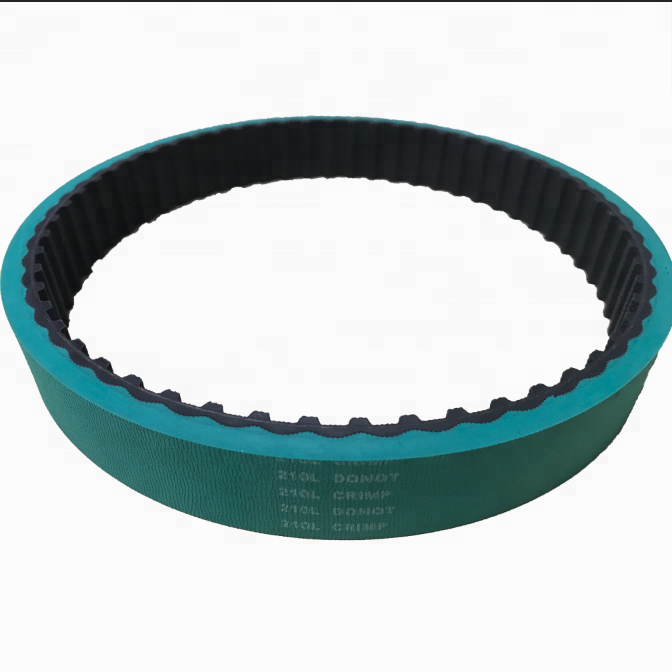

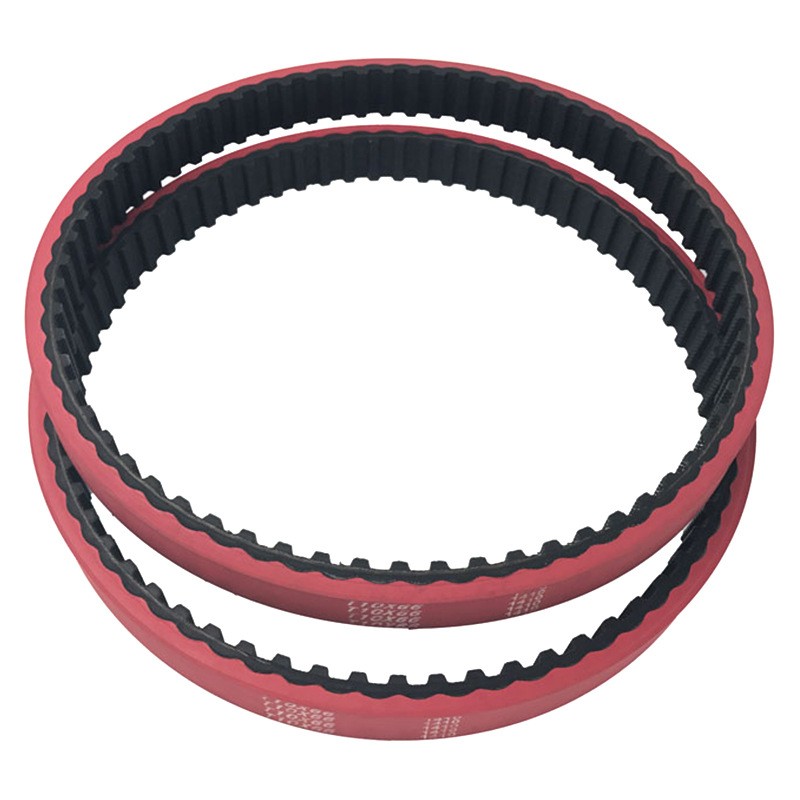

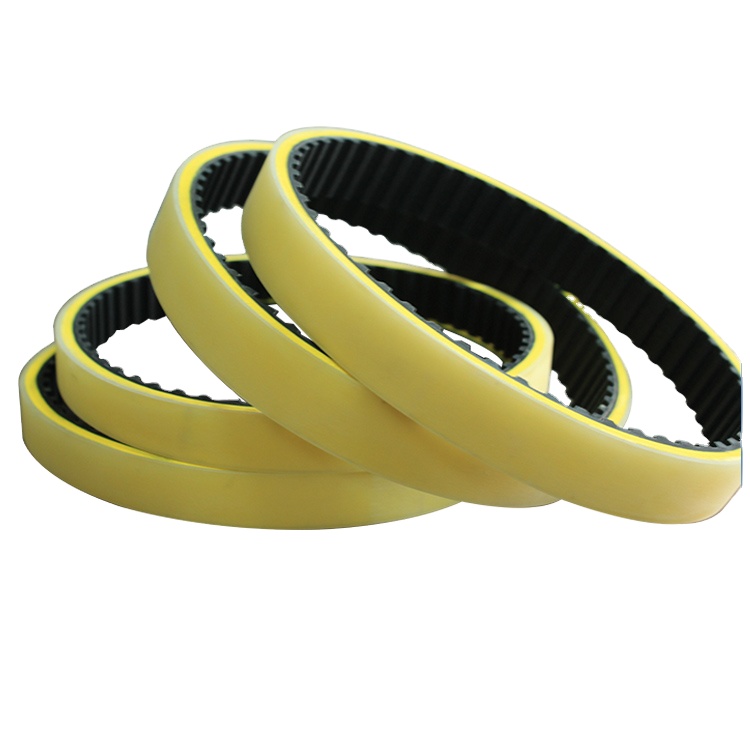

The product range includes brown, black, white, green and red coverings. Discuss other colour requirements with the material specification. Colour alone does not determine the compound, temperature range or resistance to chemicals.
Request a replacement or custom size
Send the belt marking, machine model, drawing or sample and required quantity. Include photographs of the teeth, outer covering and any worn area so the replacement dimensions and surface requirements can be discussed.
