HTD 240-5M rubber timing belt

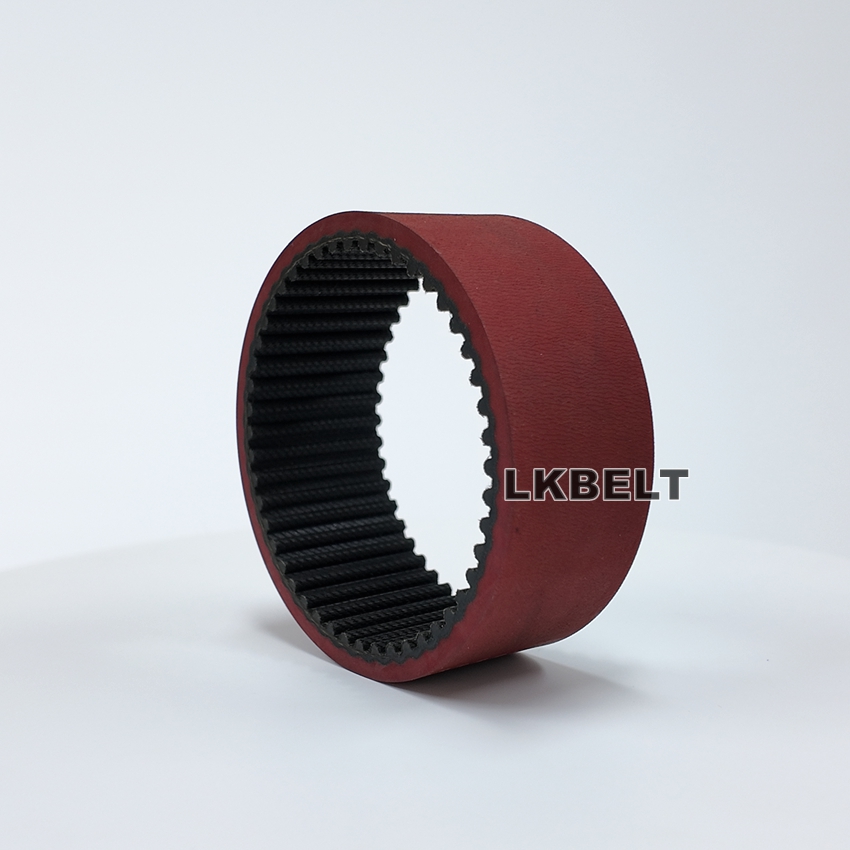

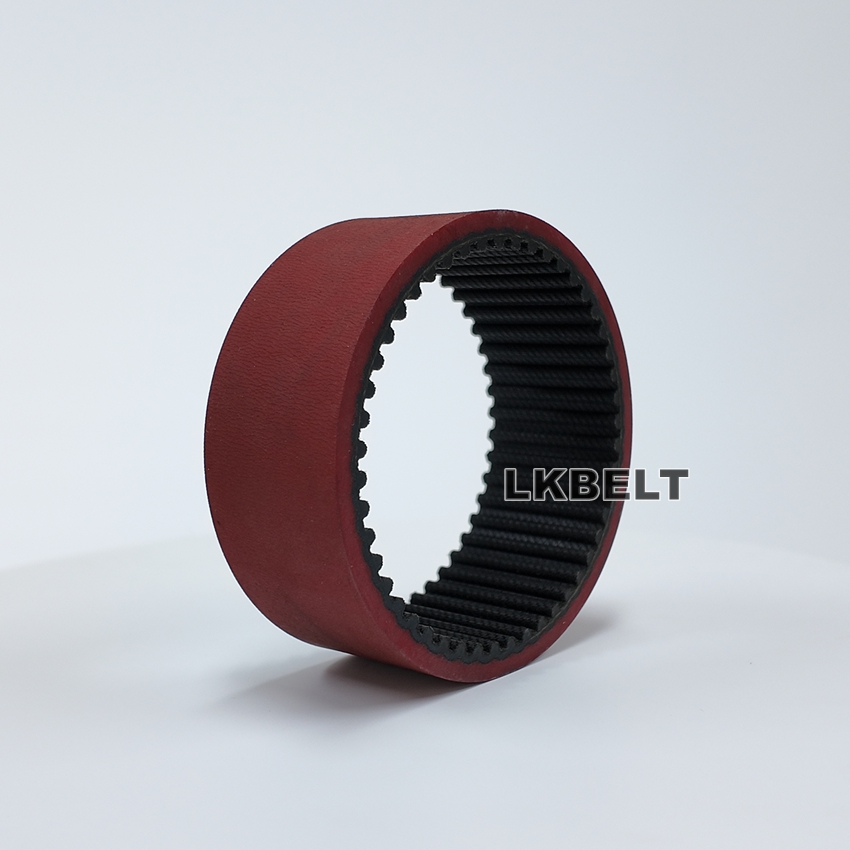

The HTD 240-5M belt shown combines an inner toothed surface with a red outer covering. For a replacement, send the full belt marking and specify width, pitch length or tooth count, covering thickness and finished overall thickness.
| Item | Product details |
|---|---|
| Designation | HTD 240-5M |
| Belt type | Rubber timing belt |
| Profile pitch | 5 mm (HTD 5M) |
| Finished dimensions | Specify width and length or tooth count |
| Outer surface shown | Red covering; specify material and thickness |
Send your drawing, required quantity and operating conditions to request a quote.
Covering and replacement dimensions

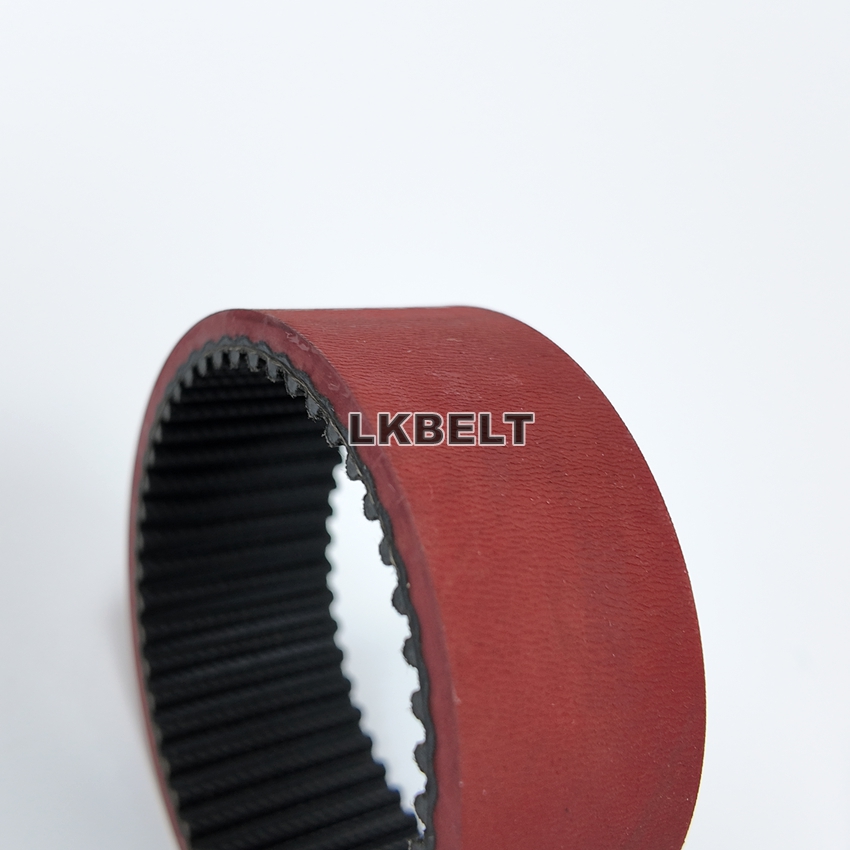

The covering adds a separate working surface to the base timing belt. Specify its material, thickness, hardness and surface finish together with the item it contacts. The red colour alone does not identify the covering compound or its performance.
| Detail | Information to provide |
|---|---|
| Belt identification | Complete printed marking, equipment model and part number |
| Dimensions | Width, finished length or tooth count, and pulley profile |
| Construction | Base-belt reinforcement, covering material and thickness, overall thickness and joint arrangement |
| Working conditions | Speed, load, temperature, bending arrangement and contact with oils or cleaning agents |

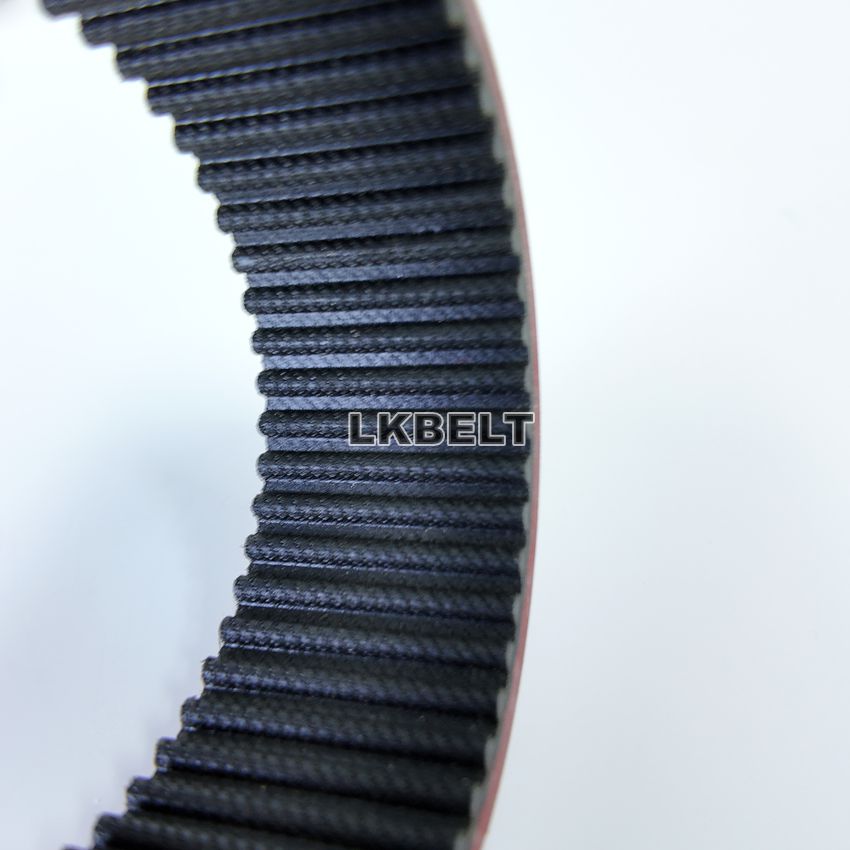

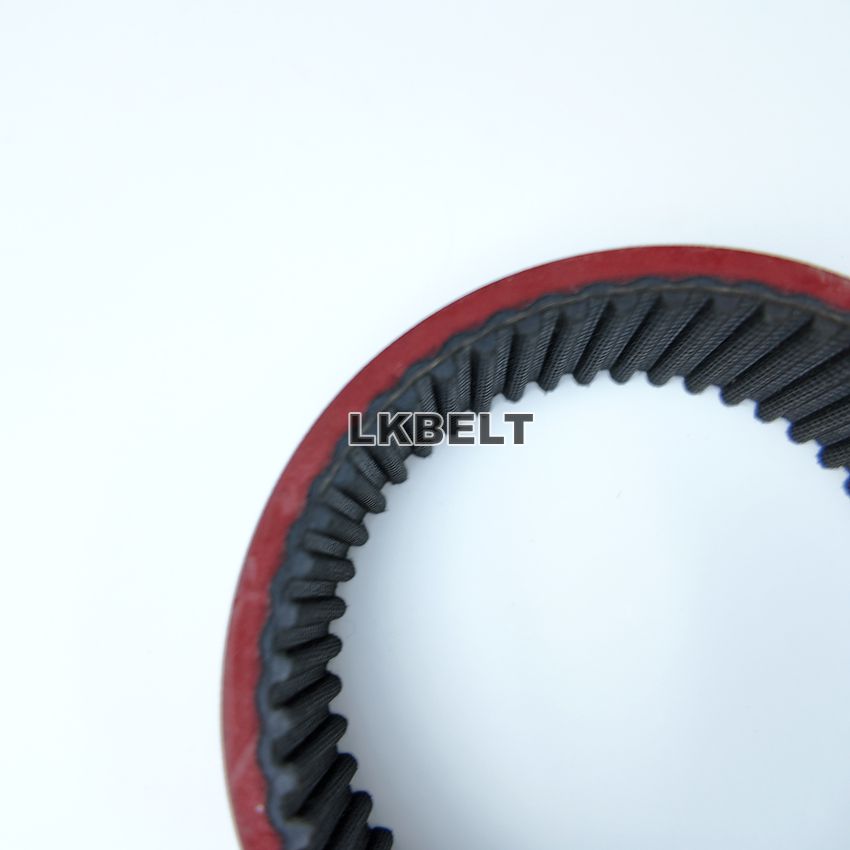

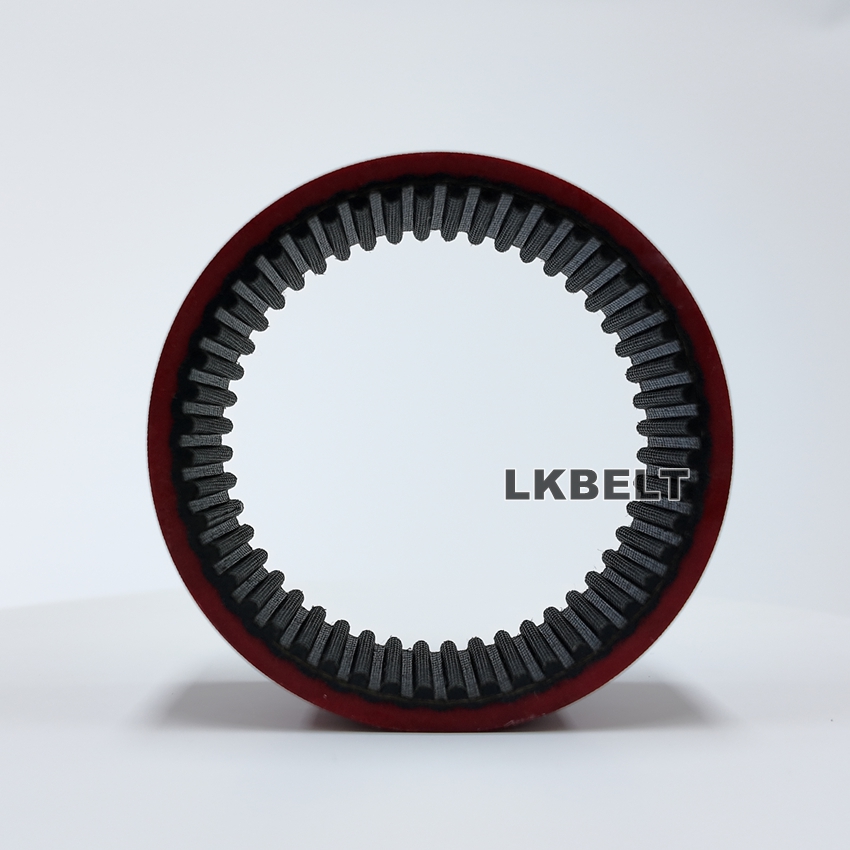

Covering and tooth detail
Rubber timing-belt profile reference
The following dimensions cover several profile families in the range. Match the complete profile designation to your pulley; a shared pitch alone does not establish interchangeability. For HTD 5M, the range reference is 5 mm pitch, 2.06 mm tooth height and 3.8 mm base-belt thickness. The covering is additional: specify the finished total thickness separately. Use the complete HTD 240-5M marking and drawing to match the replacement.
| Profile | Pitch (mm) | Tooth height (mm) | Belt thickness (mm) |
|---|---|---|---|
| MXL | 2.032 | 0.51 | 1.14 |
| XXL | 3.175 | 0.76 | 1.52 |
| XL | 5.080 | 1.27 | 2.30 |
| L | 9.525 | 1.91 | 3.60 |
| H | 12.70 | 2.29 | 4.30 |
| XH | 22.225 | 6.35 | 11.20 |
| XXH | 31.750 | 9.53 | 15.70 |
| HTD 2M | 2 | 0.75 | 1.36 |
| HTD 3M | 3 | 1.17 | 2.4 |
| HTD 5M | 5 | 2.06 | 3.8 |
| HTD 8M | 8 | 3.36 | 6.00 |
| HTD 14M | 14 | 6.02 | 10.00 |
| HTD 20M | 20 | 8.4 | 13.20 |
| STPD/STS S2M | 2 | 0.76 | 1.36 |
| STPD/STS S3M | 3 | 1.14 | 2.2 |
| STPD/STS S4.5M | 4.5 | 1.71 | 2.81 |
| STPD/STS S5M | 5 | 1.91 | 3.4 |
| STPD/STS S8M | 8 | 3.05 | 5.3 |
| STPD/STS S14M | 14 | 5.3 | 10.2 |
| RPP 8M | 8 | 3.2 | 5.5 |
| RPP 14M | 14 | 6.00 | 10 |
Custom processing
If the replacement requires a covering, holes, guides or other processing, show their dimensions and locations on the drawing. Include close-up photographs of the tooth side, back surface and any processed features so we can discuss the required arrangement.
