PVK logistics belt with a patterned carrying surface

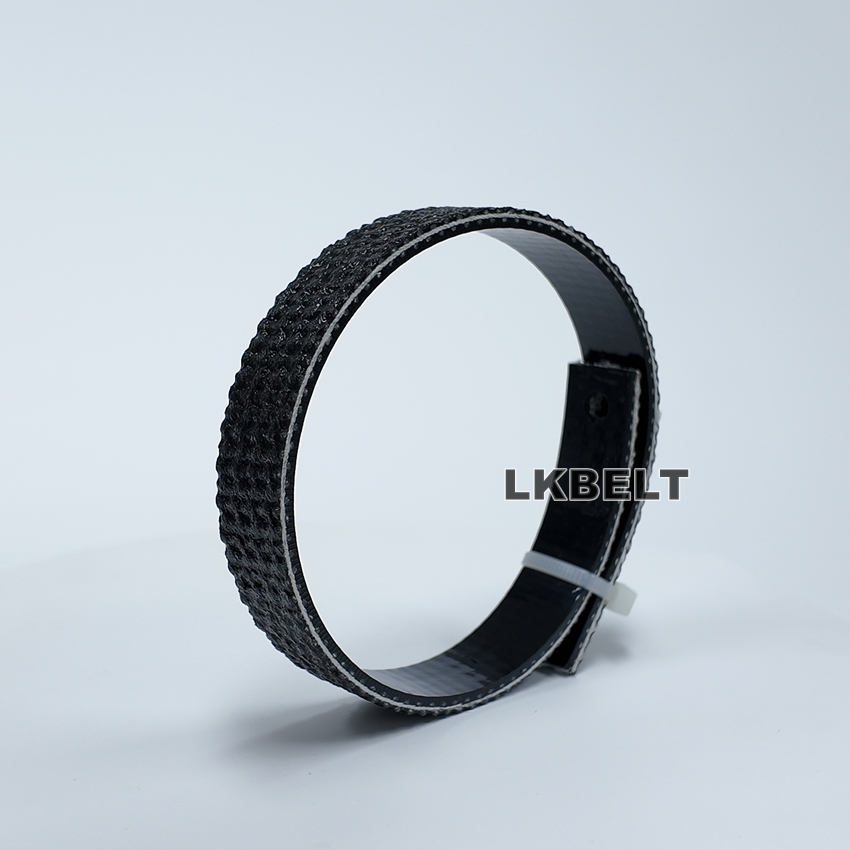

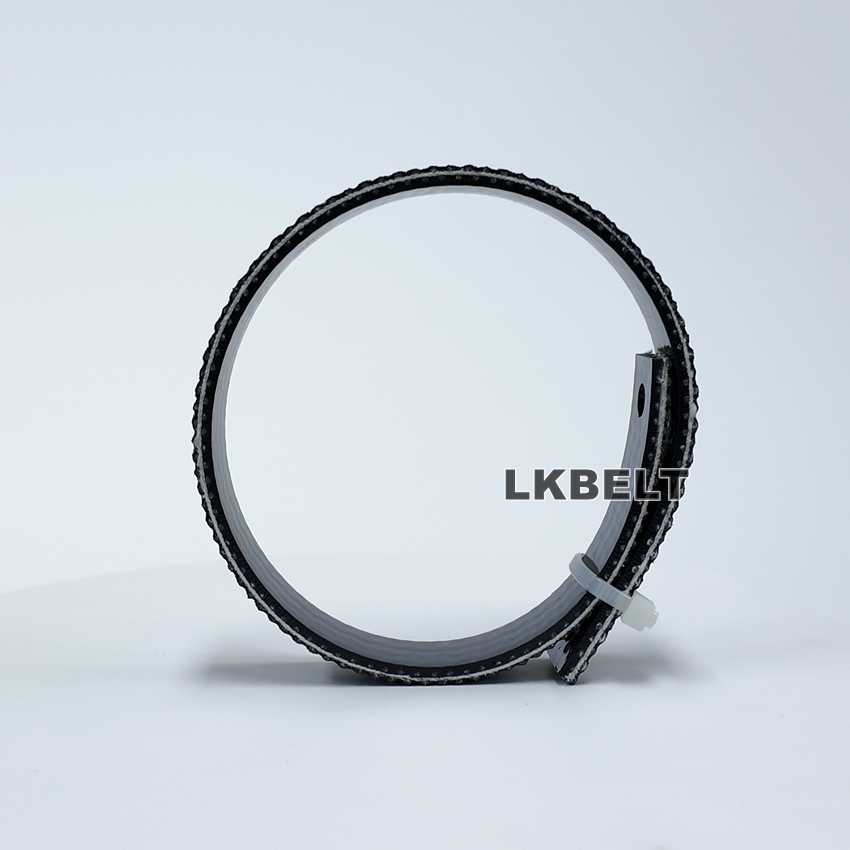

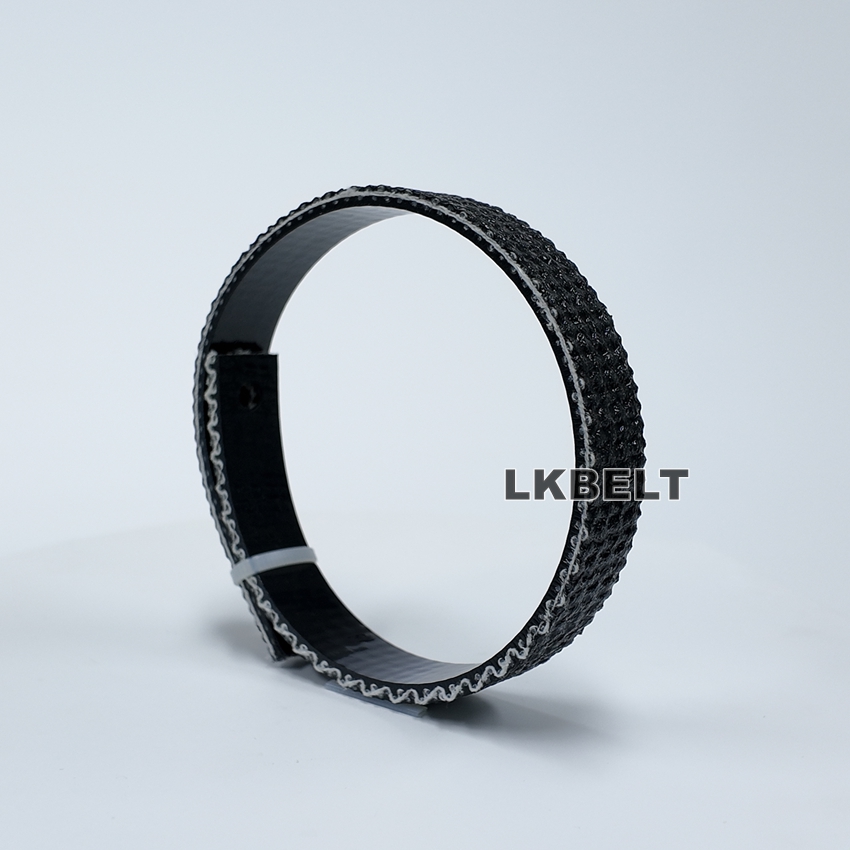

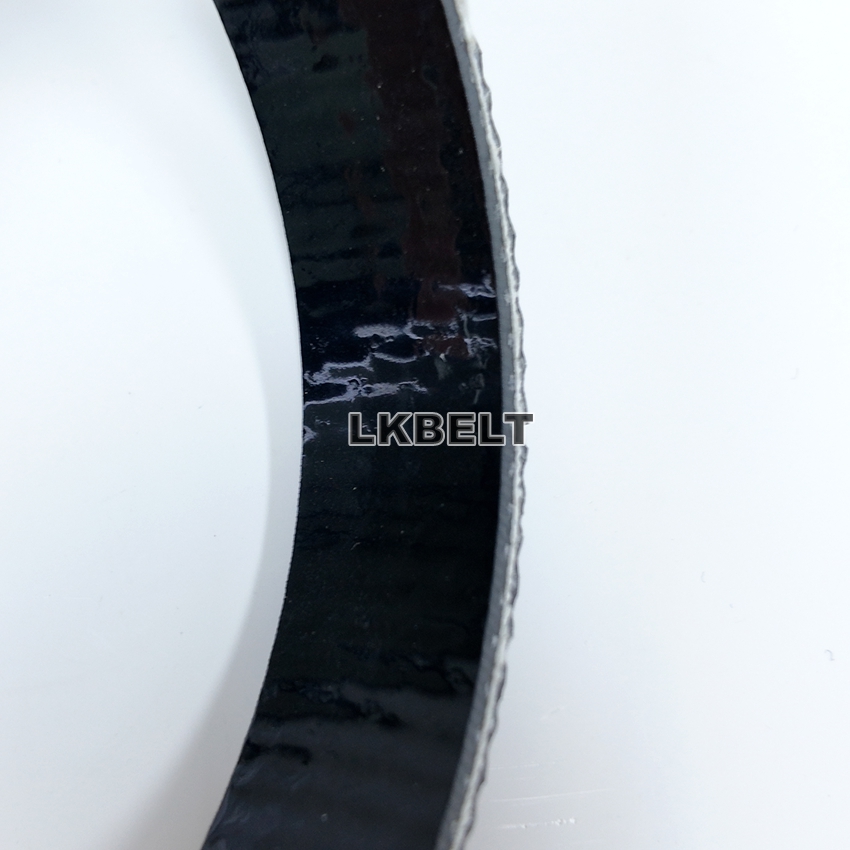

This logistics conveyor belt has a black patterned carrying surface and a fabric-reinforced construction. The product photographs show the textured face, underside and belt edge. Specify the finished dimensions and conveyor arrangement for a replacement or new installation.
| Item | Details |
|---|---|
| Product | PVK logistics conveyor belt |
| Thickness | 4.1 mm |
| Carrying surface | Black patterned face |
| Construction | Fabric-reinforced belt |
| Application | Logistics conveying |
Send the finished belt dimensions, conveyor details and quantity.

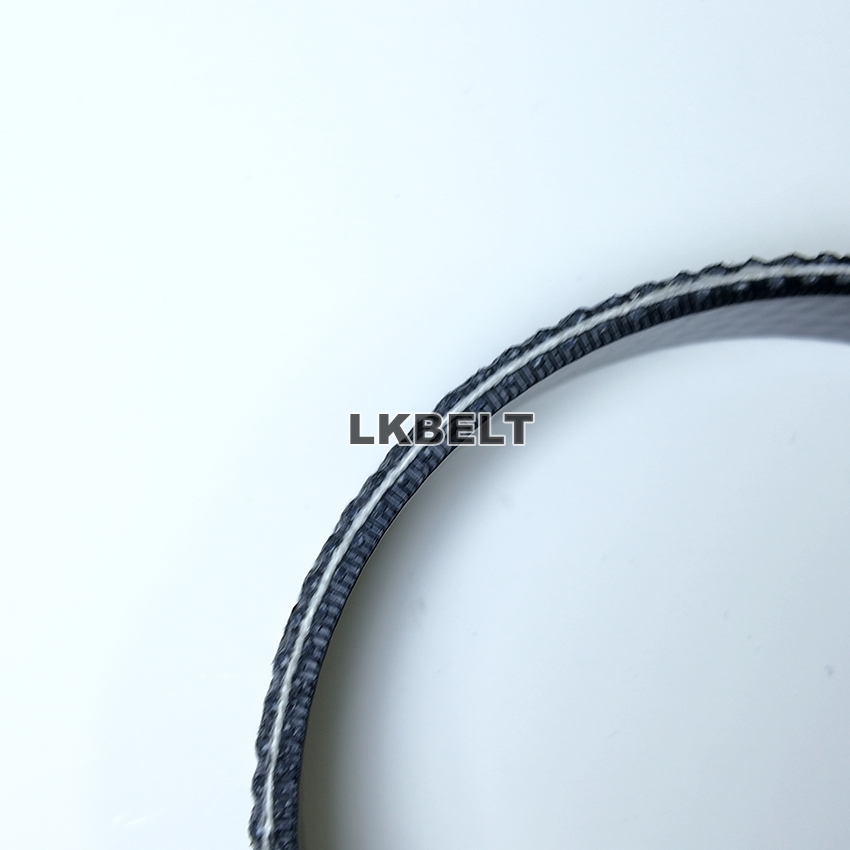

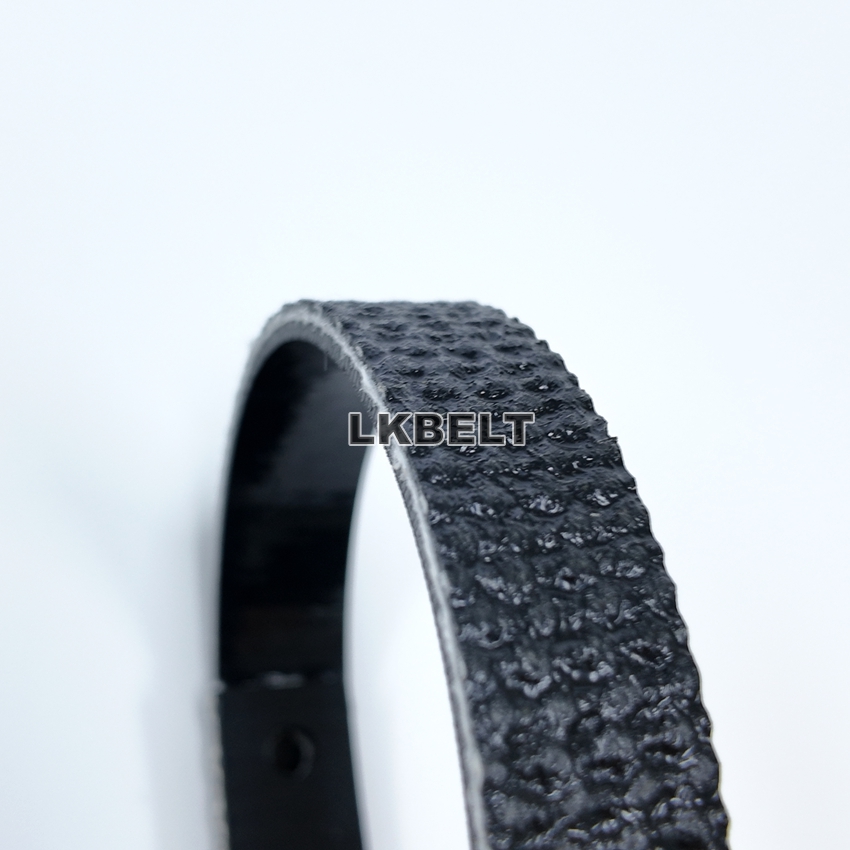

Surface and belt-edge details
Dimensions and conveyor fit
| Item | Details |
|---|---|
| Finished dimensions | Belt length, width, thickness and dimensional tolerances |
| Conveyor arrangement | Pulley diameters, support type, belt route and tensioning travel |
| Product and load | Parcel or package dimensions, individual weight and load distribution |
| Operating duty | Conveyor speed, inclination, starts and stops, and accumulation conditions |
| Environment | Working temperature, dust, moisture and cleaning method |
| Joint and tracking | Required joint, installation access and underside guide arrangement |
Processing options
Cleats, sidewalls and guides can be discussed according to the required belt construction and conveyor layout. Include the position, dimensions and spacing of any attachments in the drawing. Underside guides must match the conveyor’s groove arrangement.
The joint method should be selected with the belt construction, pulley diameters and installation access. Provide photographs of the existing joint and any edge wear or tracking issue when requesting a replacement.
Material and working conditions
Specify the operating temperature and exposure to moisture, oil or cleaning chemicals when selecting the belt construction. Include any material or performance documentation required for the application.
Request a PVK logistics conveyor belt
Send the required belt size, quantity and conveyor details. For a replacement, include photographs of both faces, the belt edge and the existing joint, together with any available belt marking.
