PVC sawtooth-pattern conveyor belt

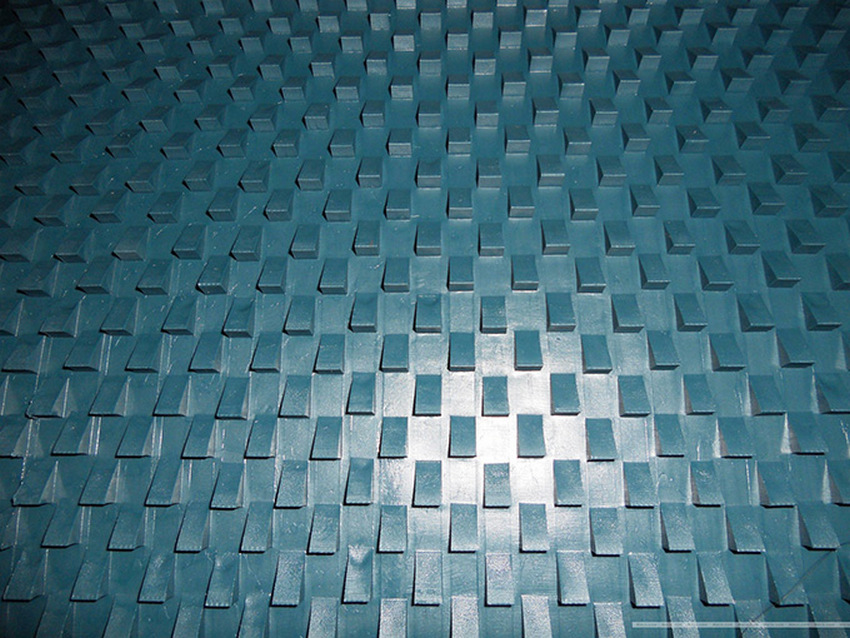

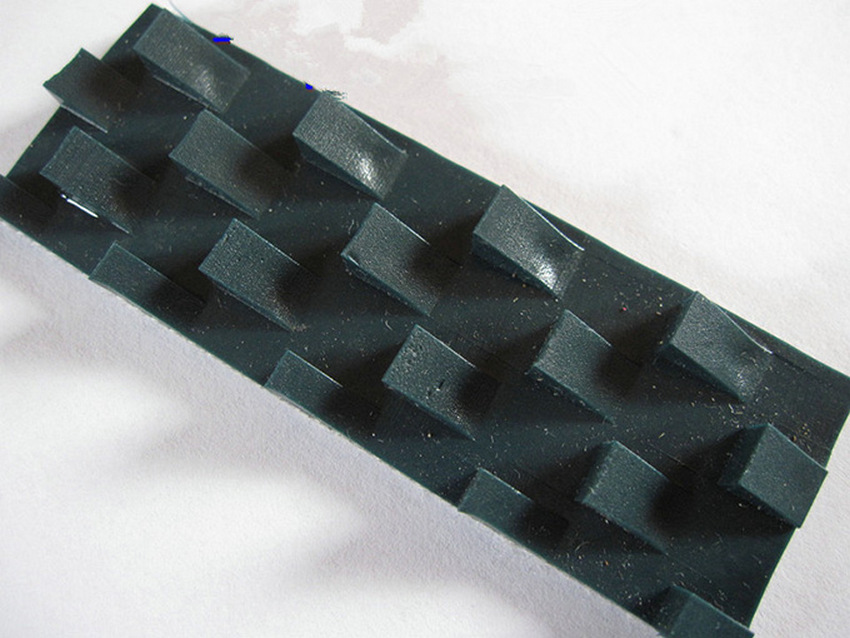

This PVC conveyor belt has a raised sawtooth-pattern carrying surface. The photographs show the repeating raised blocks and the belt edge. Match the profile height, spacing and direction together with the finished belt dimensions for your conveyor.
| Item | Product details |
|---|---|
| Product | PVC sawtooth conveyor belt |
| Material | PVC conveyor belt |
| Surface | Raised sawtooth pattern |
| Colour shown | Dark green |
| Order dimensions | Finished length, width, total thickness and pattern height |
Send the machine model, belt dimensions and quantity to request a quote.
Sawtooth surface details
Replacement-belt dimensions
| Detail | Information to provide |
|---|---|
| Machine | Manufacturer, model and conveyor arrangement |
| Belt dimensions | Finished length, width, total thickness and tolerances |
| Sawtooth profile | Pattern height, spacing and a close-up of the existing surface |
| Installation | Pulley diameters, support bed, tracking guides and joint requirements |
| Conveyed material | Product material and dimensions, belt speed, load, incline and operating temperature |
Match the surface and joint to the machine
Provide photographs of the carrying face, underside, edges and joint. Include any uneven wear, surface damage or tracking marks, along with the conveyor model. The sawtooth height, spacing and direction should be matched together with the complete belt thickness and conveyor clearances.
Specify the required joint and installation access. Finger and stepped finger joints are selected for the belt construction and pulley arrangement. If a guide is required on the underside, show its profile and position on the drawing.
PVC flat-belt range reference
The models below are separate PVC flat-belt options. Their thicknesses do not specify this sawtooth belt or its raised profile. Select the complete construction for the machine. Scroll sideways on smaller screens.
| Model | Thickness (mm) | Colour | Layers |
|---|---|---|---|
| Mahjong Belt FW-08 | 0.8 | Dark green | 1 |
| Mahjong Belt FW-16 | 1.6 | Dark green | 1 |
| PB10 | 1.0 | Green | 1 |
| N-A15 | 2.2 | White | 1 |
| F-2M0576 | 2.0 | Green | 2 |
| PB20 | 2.0 | Green | 2 |
| PB20-A0-H | 2.0 | Dark green | 2 |
| PB30-A0-H | 3.0 | Dark green | 2 |
| PB40-3M | 4.0 | Dark green | 2 |
| F-2M0090 | 2.8 | Green | 2 |
| PB30 | 3.0 | Green | 2 |
| PB22-A18 | 2.2 | Green | 2 |
| PB20-B-A0 | 2.0 | Black | 2 |
| PB30-A18 | 3.0 | Green | 2 |
| PB40-3M | 4.0 | Green | 3 |
| PB50-3M | 5.0 | Green | 3 |
| PB50-3M-A18 | 5.0 | Green | 3 |
Request a sawtooth conveyor belt
Send the machine model, belt drawing or sample, finished dimensions and required quantity. Include the conveyed-product details and any surface or joint requirements so the replacement can be matched to the conveyor.
