Pattern-coated PU timing belt

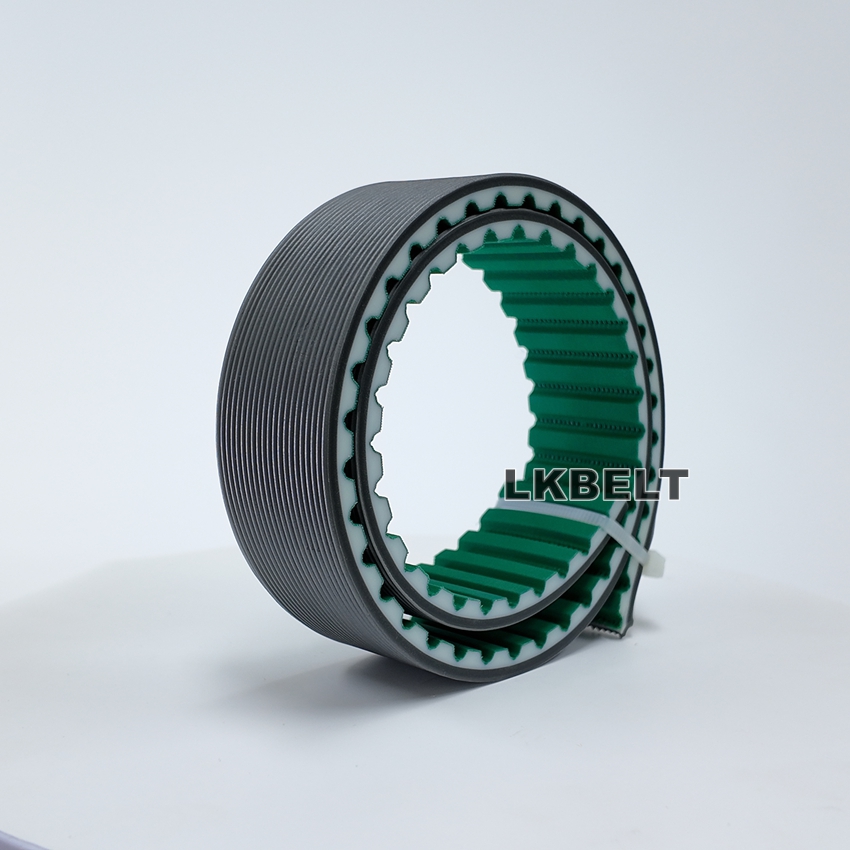

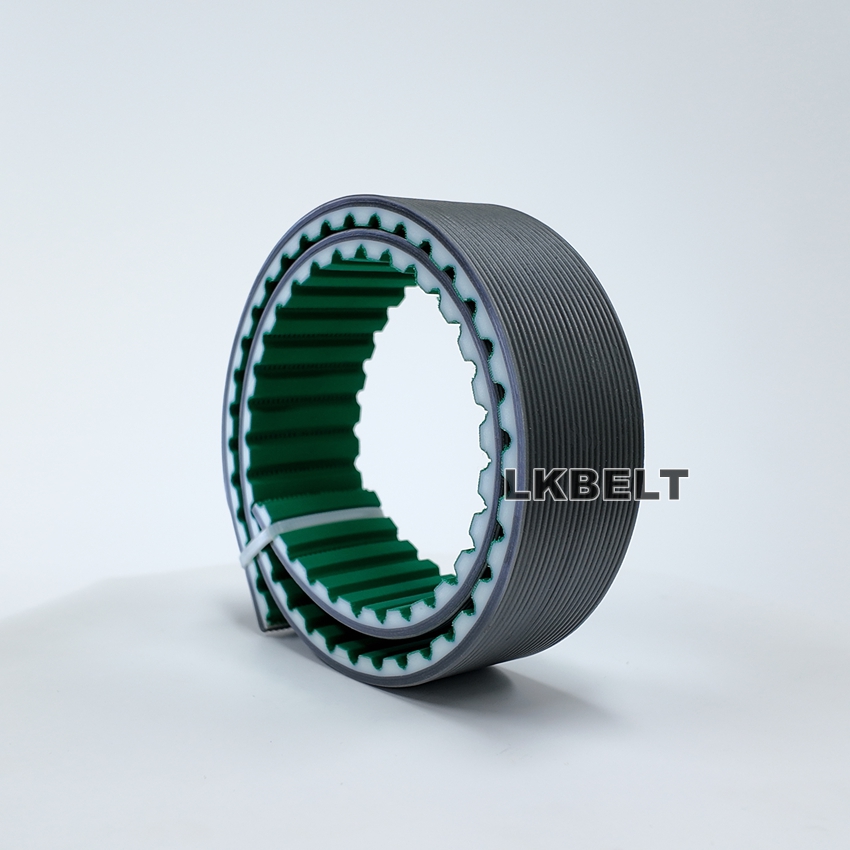

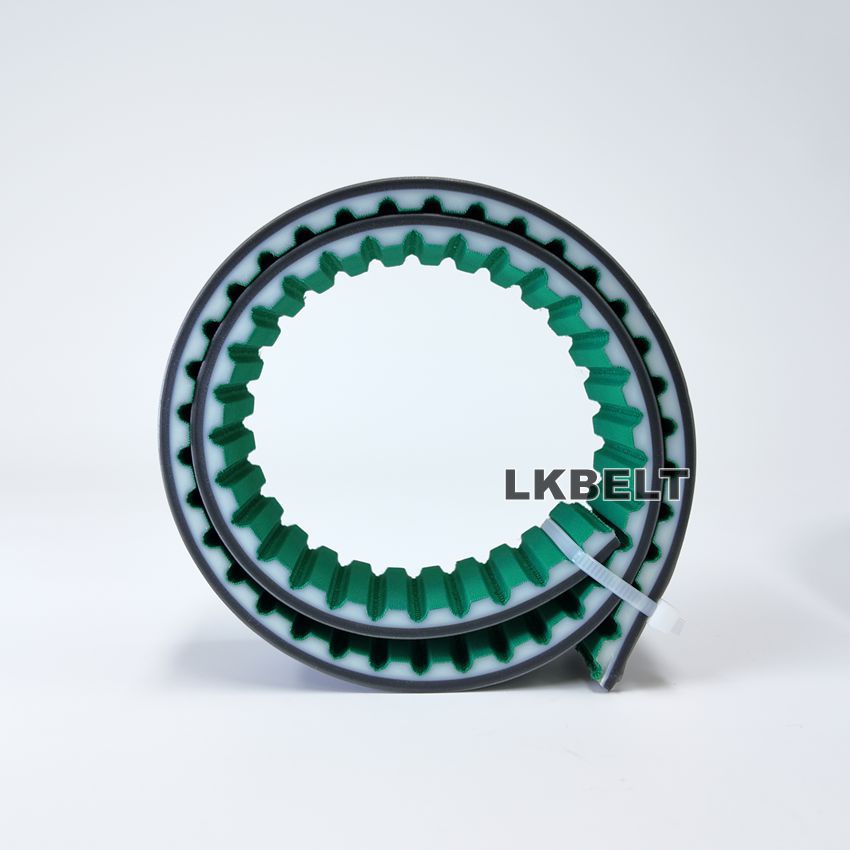

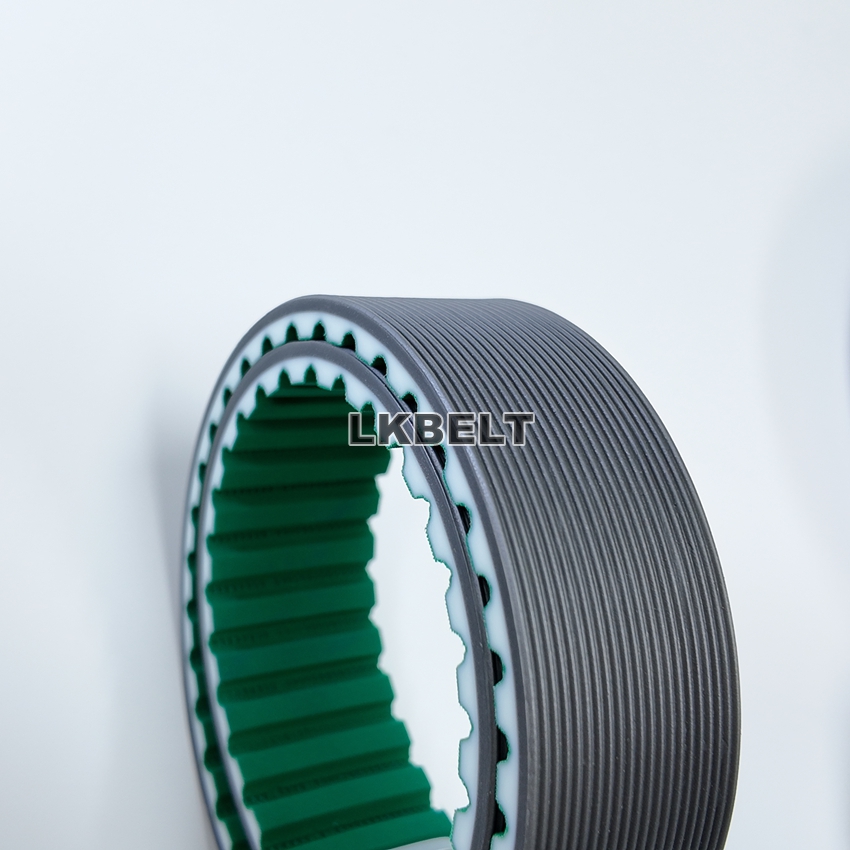

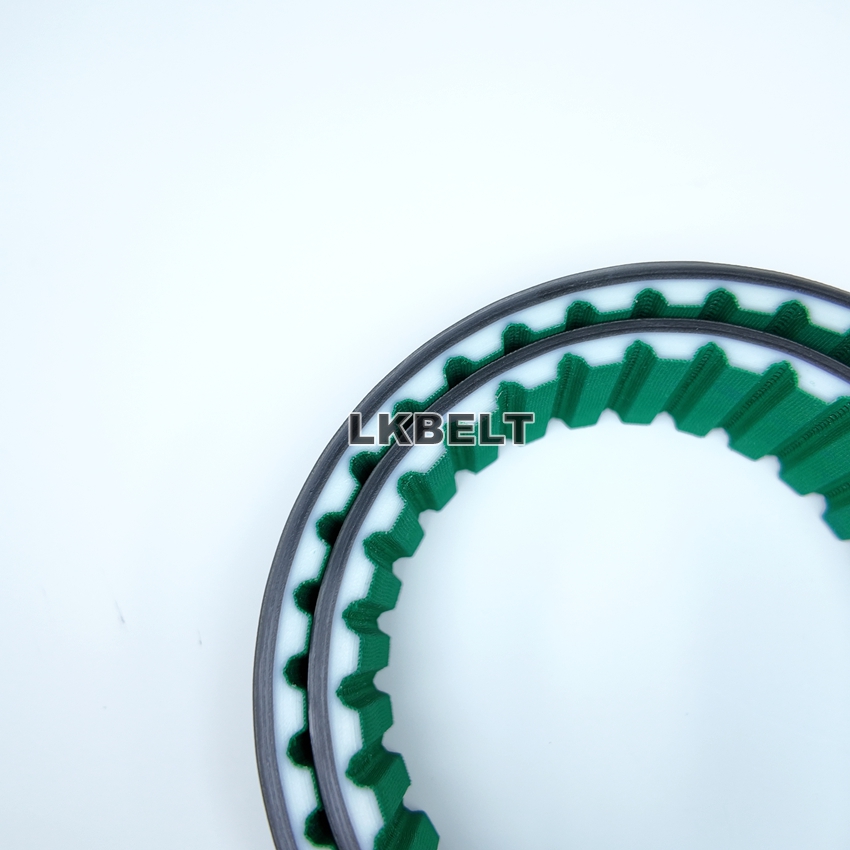

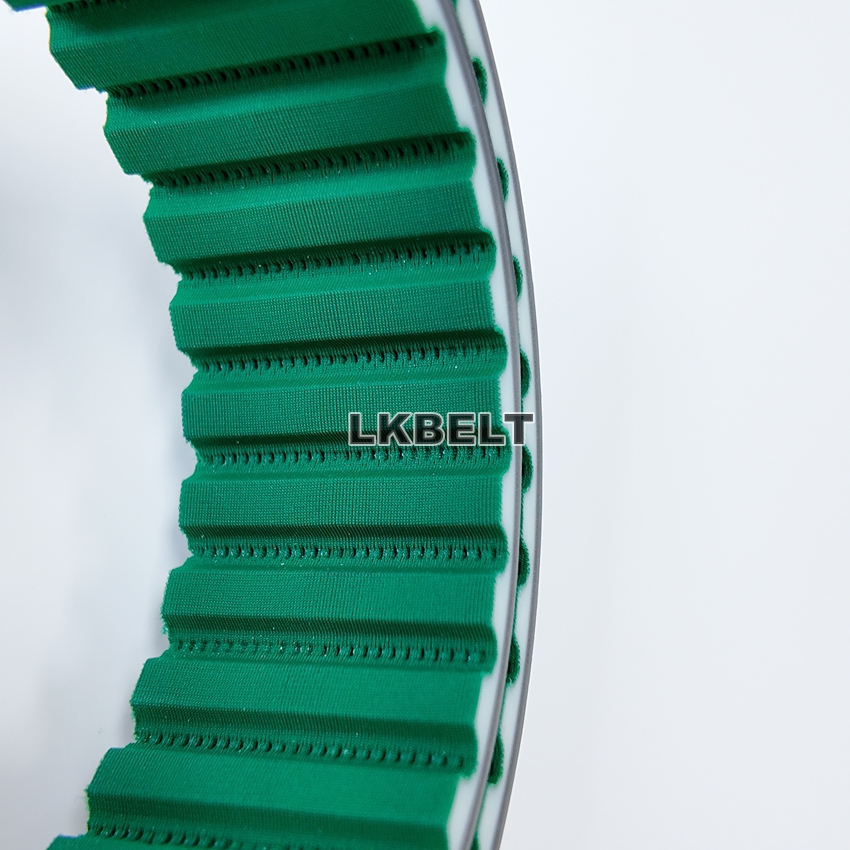

This PU timing belt has a patterned outer surface and a toothed inner surface, as shown in the product photos. Send us your belt or pulley drawing, required surface pattern, width and finished length so we can discuss a construction for your machine.
| Item | Product details |
|---|---|
| Product | PU timing belt with patterned outer surface |
| Surface pattern | Specify the finish or send a sample for matching |
| Tooth profile and pitch | Match to your existing belt or pulley drawing |
| Width and finished length | Specify in your inquiry |
Please share a sample or drawing when both the patterned surface and pulley fit need to be matched.
What to send for a quote
Share the belt marking or machine model, pulley drawing or belt sample, required width and finished length or tooth count. Include photographs of the working surface, the pattern or coating you need, and the operating conditions so we can discuss a suitable finished belt.
Timing belt profile comparison
Compare the tooth profiles below. The patterned surface does not by itself identify the pulley profile; send us your existing belt or pulley drawing to match the teeth and finished size.
| Profile | Pitch (mm) | Tooth thickness (mm) | Belt thickness including teeth (mm) |
|---|---|---|---|
| T2.5 | 2.5 | 0.7 | 1.6 |
| T5 | 5 | 1.2 | 2.2 |
| T10 | 10 | 2.5 | 4.5 |
| T20 | 20 | 5 | 8 |
| AT5 | 5 | 1.2 | 2.7 |
| AT10 | 10 | 2.5 | 4.5 |
| AT20 | 20 | 5 | 8 |
| H | 12.7 | 2.29 | 4.29 |
| XH | 22.225 | 6.35 | 11.2 |
| L | 9.525 | 1.91 | 3.61 |
| XL | 5.08 | 1.27 | 2.3 |
| 3M | 3 | 1.21 | 2.4 |
| 5M | 5 | 2.1 | 3.7 |
| 8M | 8 | 3.38 | 5.6 |
| 14M | 14 | 6.1 | 10 |
| S3M | 3 | 1.14 | 2.9 |
| S5M | 5 | 1.85 | 3.35 |
| S8M | 8 | 3.05 | 5.3 |
| S14M | 14 | 5.3 | 10.2 |
| RPP5M | 5 | 2.05 | 3.8 |
| RPP8M | 8 | 3.2 | 5.4 |
| RPP14M | 14 | 5.85 | 9.7 |
