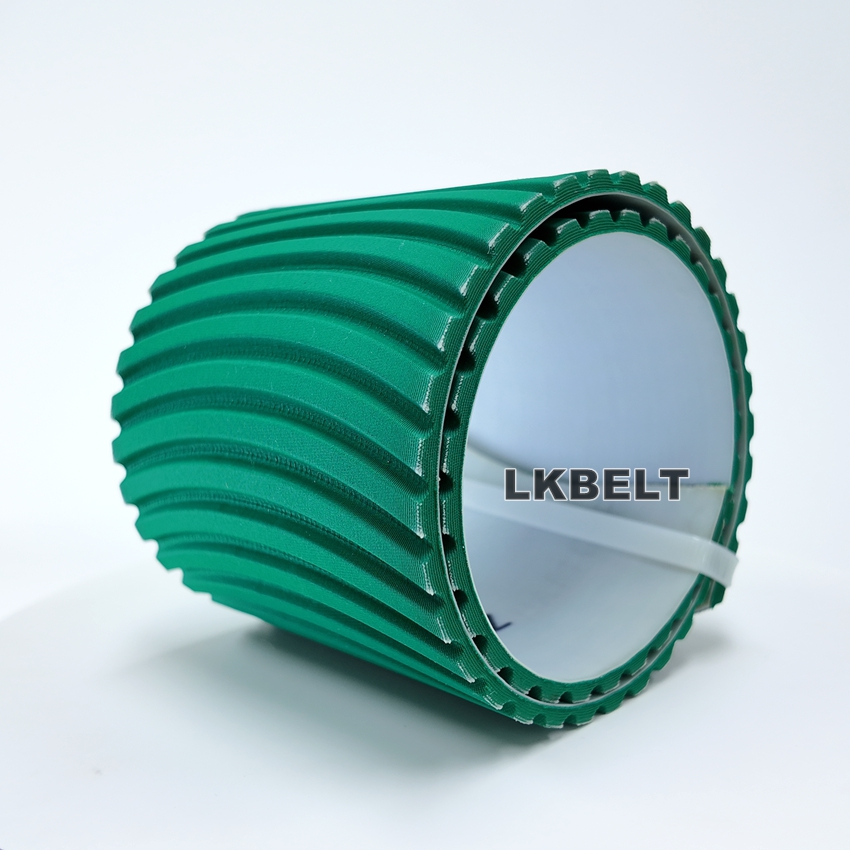

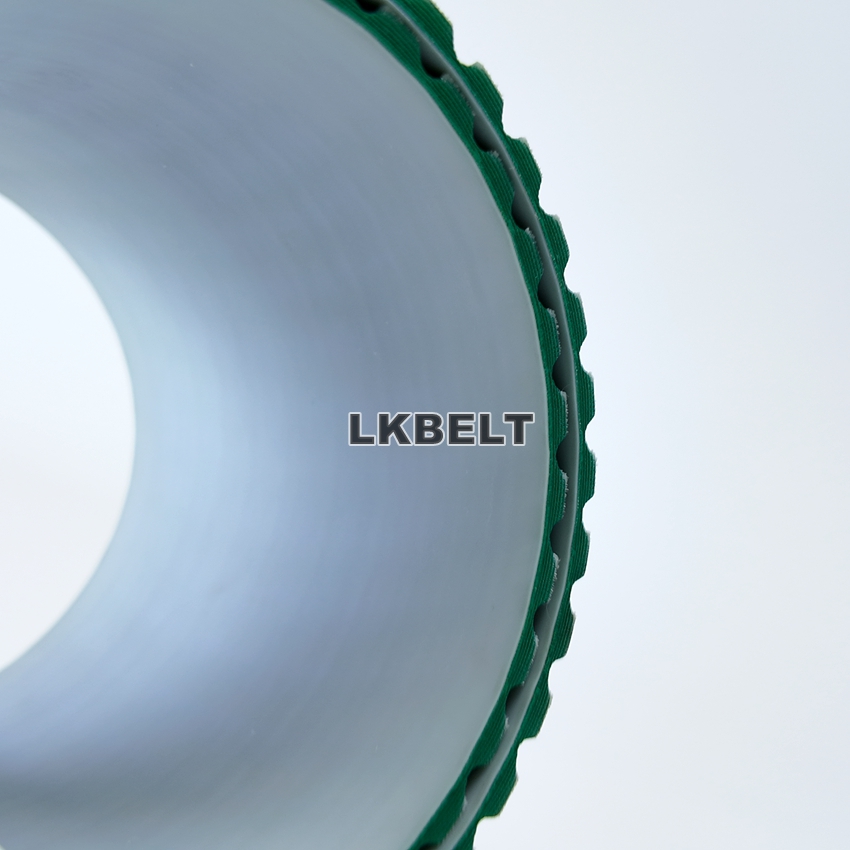

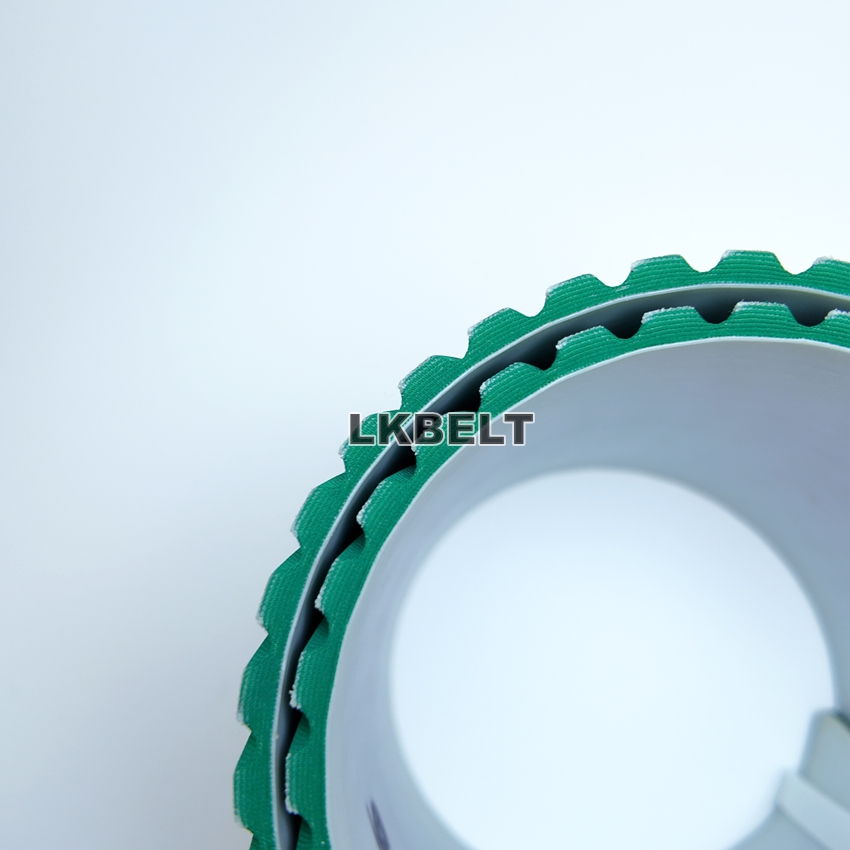

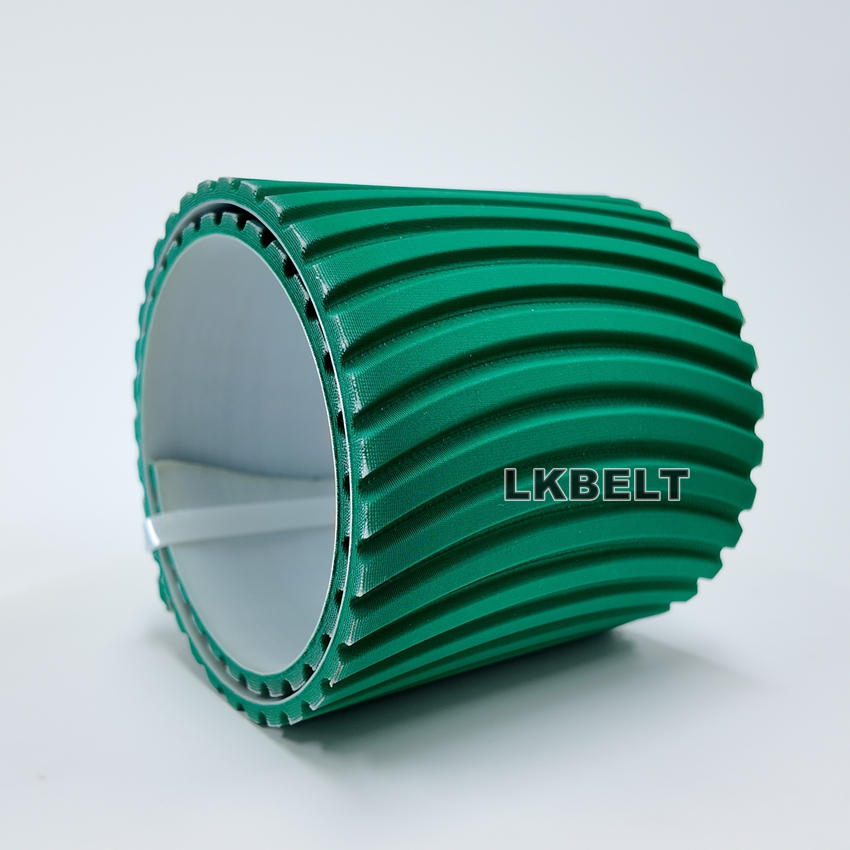

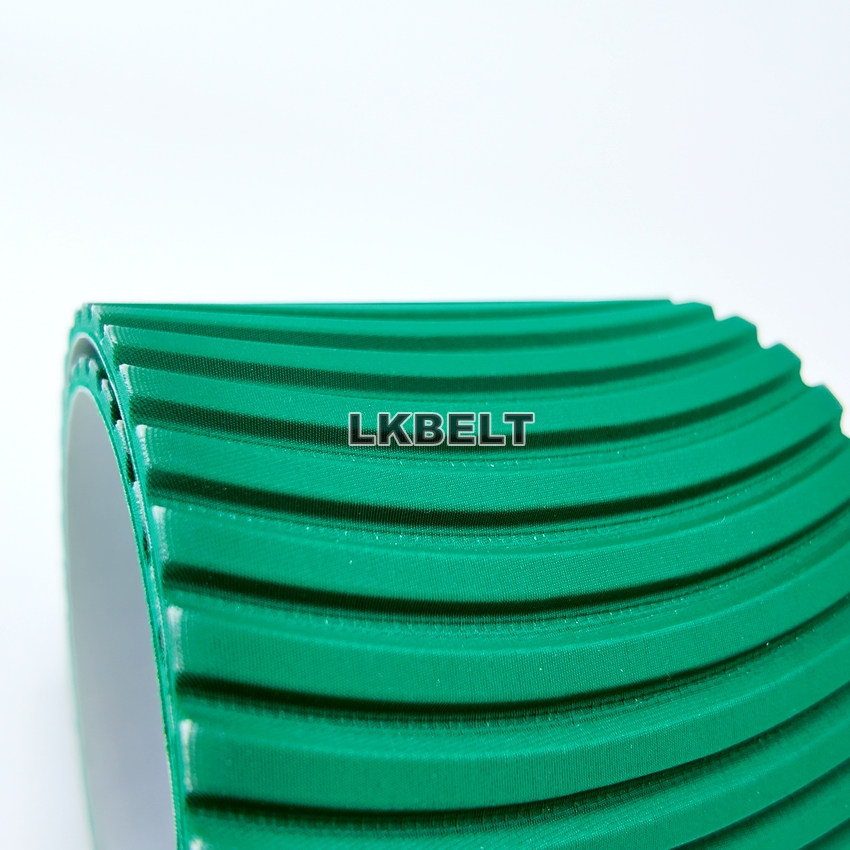

BAT10-PAZ PU timing belt
For the BAT10-PAZ PU timing belt, send a pulley drawing or an existing belt sample, together with the required width, finished length or tooth count. Matching the tooth profile to your machine helps us discuss the finished belt construction.
| Item | Product details |
|---|---|
| Designation | BAT10-PAZ |
| Product type | PU timing belt |
| Tooth profile and pitch | Match to your pulley drawing or belt sample |
| Width and finished length | Specify in your inquiry |
Please share your pulley drawing or belt sample so we can match the tooth profile for your machine.
What to send for a quote
Share the belt marking or machine model, belt width, finished length or tooth count, pulley profile, and photographs of the existing belt. State the operating conditions and any required backing or surface treatment so the final specification can be checked against the application.
Timing belt profile comparison
Compare the tooth profiles below. To choose a replacement, match the belt tooth profile to your pulley drawing or sample; dimensions for other profiles should not be used for your machine.
| Profile | Pitch (mm) | Tooth thickness (mm) | Belt thickness including teeth (mm) |
|---|---|---|---|
| T2.5 | 2.5 | 0.7 | 1.6 |
| T5 | 5 | 1.2 | 2.2 |
| T10 | 10 | 2.5 | 4.5 |
| T20 | 20 | 5 | 8 |
| AT5 | 5 | 1.2 | 2.7 |
| AT10 | 10 | 2.5 | 4.5 |
| AT20 | 20 | 5 | 8 |
| H | 12.7 | 2.29 | 4.29 |
| XH | 22.225 | 6.35 | 11.2 |
| L | 9.525 | 1.91 | 3.61 |
| XL | 5.08 | 1.27 | 2.3 |
| 3M | 3 | 1.21 | 2.4 |
| 5M | 5 | 2.1 | 3.7 |
| 8M | 8 | 3.38 | 5.6 |
| 14M | 14 | 6.1 | 10 |
| S3M | 3 | 1.14 | 2.9 |
| S5M | 5 | 1.85 | 3.35 |
| S8M | 8 | 3.05 | 5.3 |
| S14M | 14 | 5.3 | 10.2 |
| RPP5M | 5 | 2.05 | 3.8 |
| RPP8M | 8 | 3.2 | 5.4 |
| RPP14M | 14 | 5.85 | 9.7 |

Processing a BAT10-PAZ timing belt order
Send the full BAT10-PAZ marking with a pulley drawing or sample so the tooth profile is checked against your machine. Width, finished length or tooth count, and the position of any requested holes or guides should be agreed before the processing route is selected.
Our workshop footage shows material cutting, guide preparation, punching and joining across the LKBELT belt range. The operations selected for an order depend on its confirmed construction and drawing. See our workshop and processing footage.
