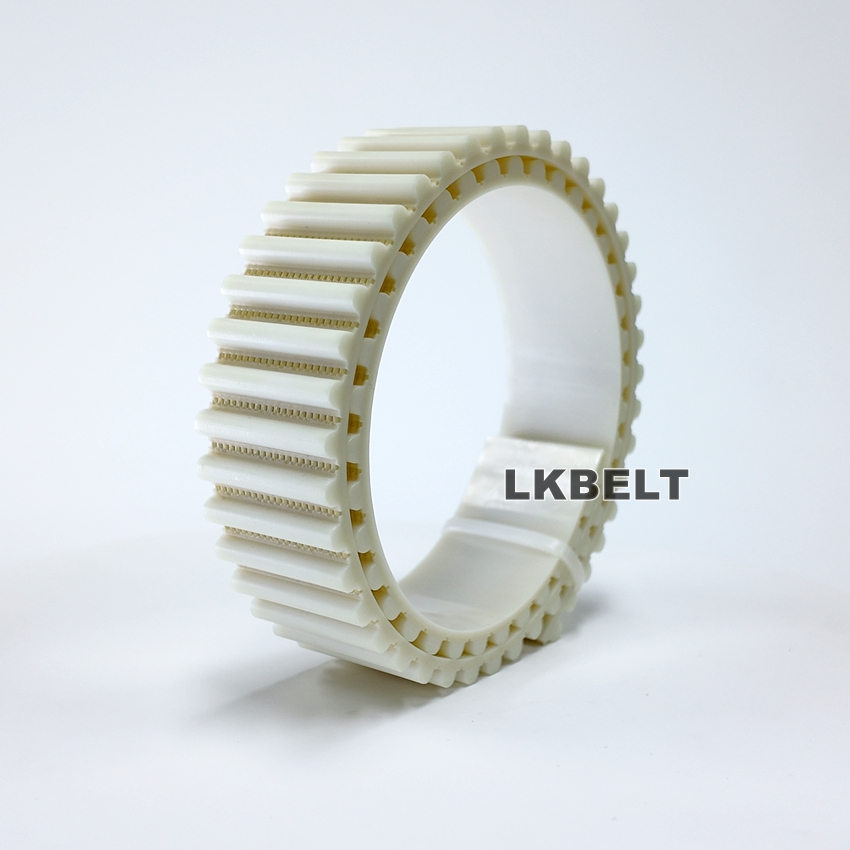

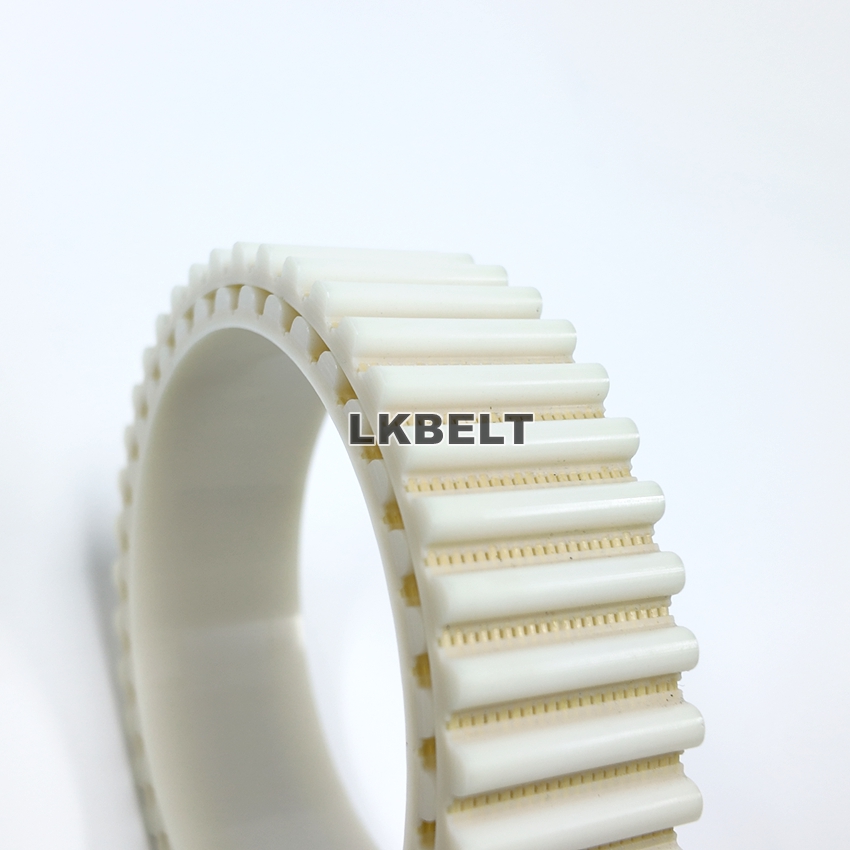

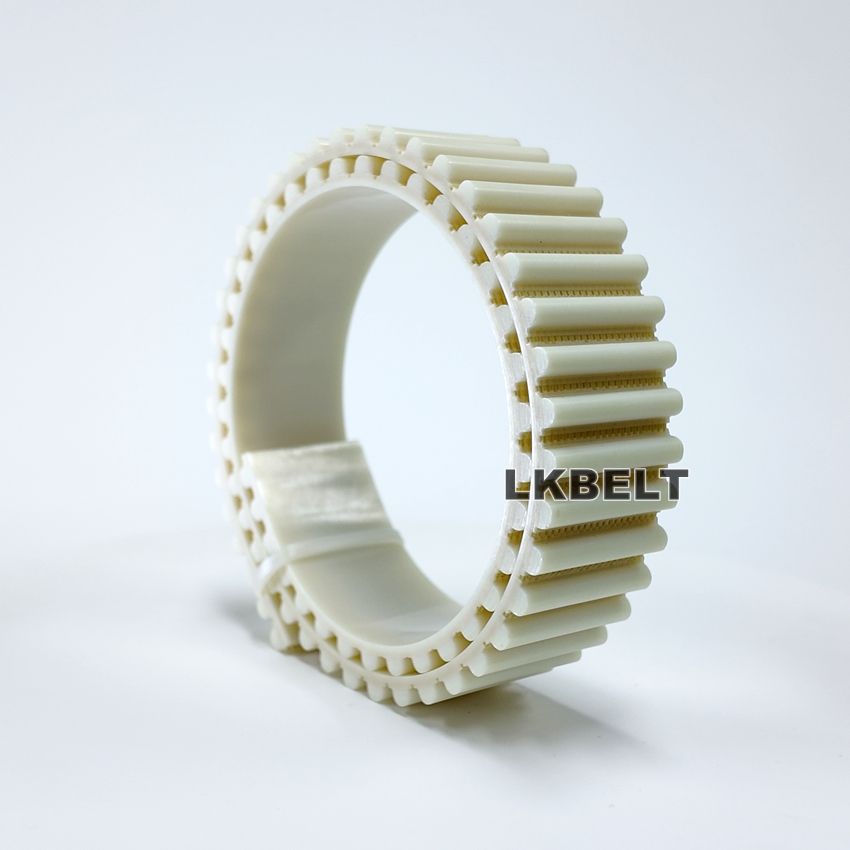

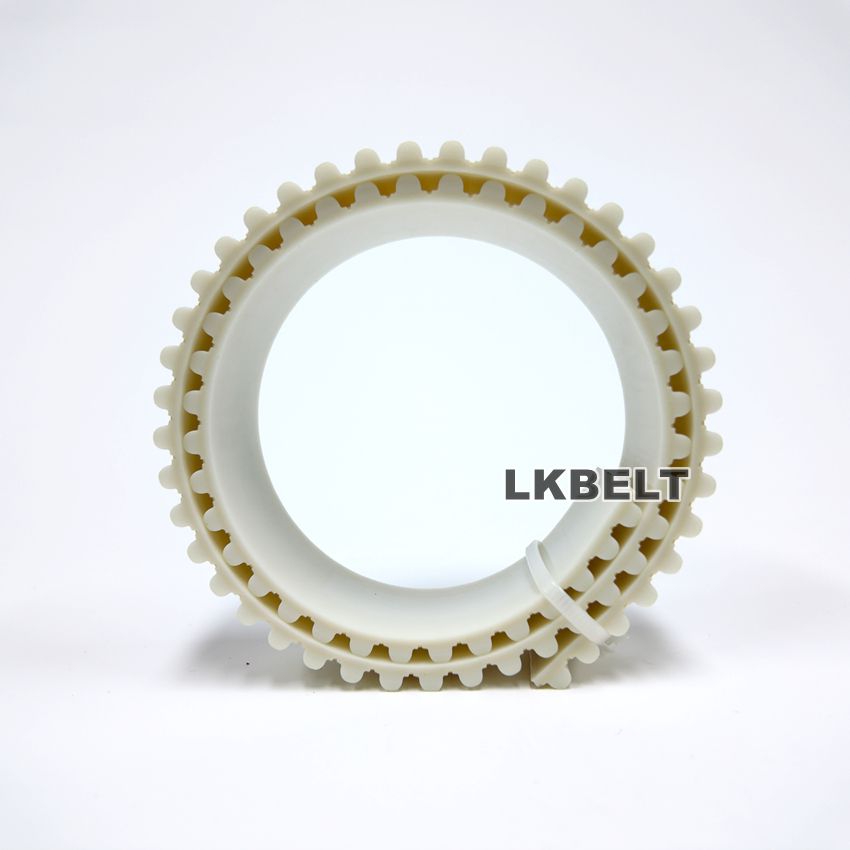

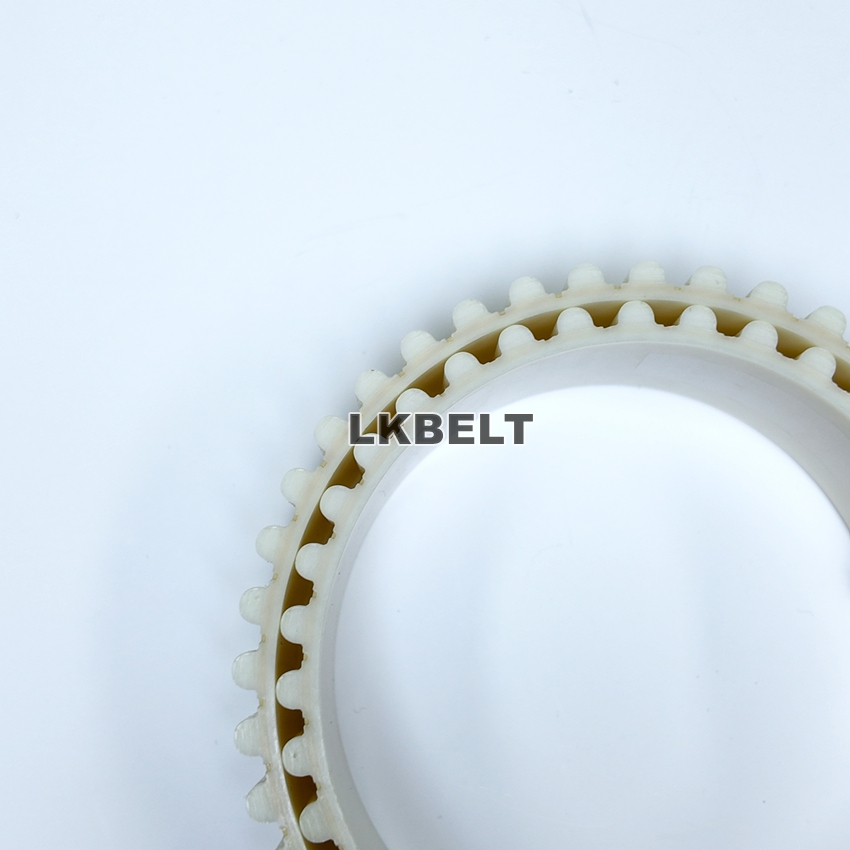

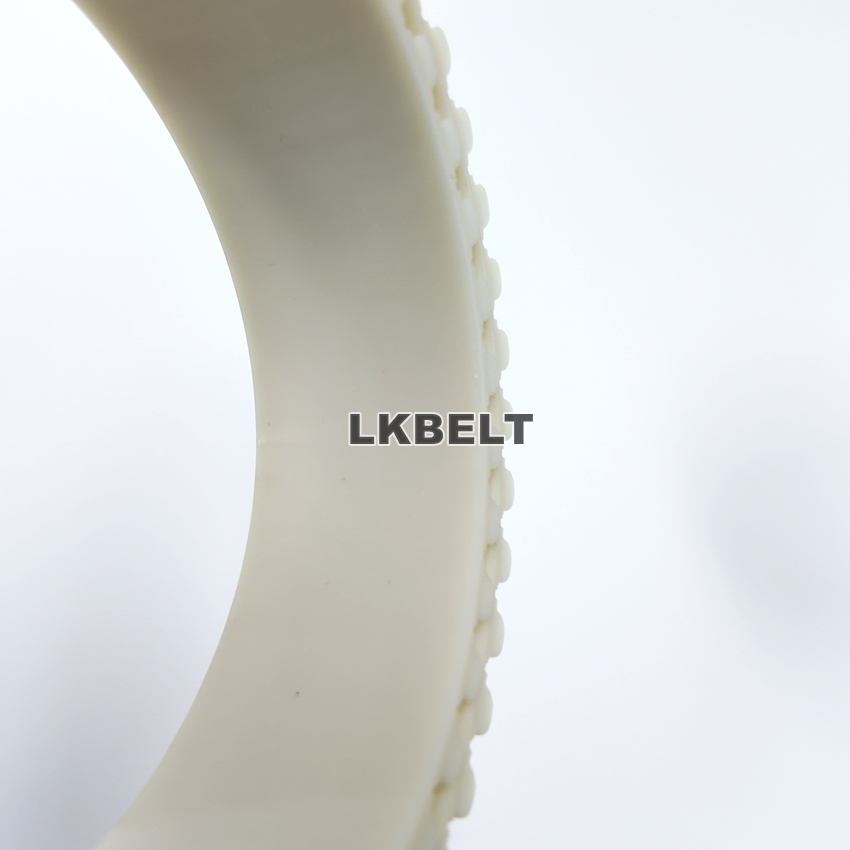

HTD8M PU timing belt
For an HTD8M PU timing belt, send us your pulley drawing or an existing belt sample, together with the required belt width, finished length or tooth count. The tooth profile should be matched to your machine before discussing the finished belt specification.
| Item | Product details |
|---|---|
| Designation | HTD8M |
| Product type | PU timing belt |
| Tooth profile and pitch | Match to your pulley drawing or belt sample |
| Width and finished length | Specify in your inquiry |
Please share your pulley drawing or belt sample so we can match the tooth profile for your machine.
What to send for a quote
Share the belt marking or machine model, belt width, finished length or tooth count, pulley profile, and photographs of the existing belt. State the operating conditions and any required backing or surface treatment so the final specification can be checked against the application.
Timing belt profile comparison
Compare the tooth profiles below. To choose a replacement, match the belt tooth profile to your pulley drawing or sample; dimensions for other profiles should not be used for your machine.
| Profile | Pitch (mm) | Tooth thickness (mm) | Belt thickness including teeth (mm) |
|---|---|---|---|
| T2.5 | 2.5 | 0.7 | 1.6 |
| T5 | 5 | 1.2 | 2.2 |
| T10 | 10 | 2.5 | 4.5 |
| T20 | 20 | 5 | 8 |
| AT5 | 5 | 1.2 | 2.7 |
| AT10 | 10 | 2.5 | 4.5 |
| AT20 | 20 | 5 | 8 |
| H | 12.7 | 2.29 | 4.29 |
| XH | 22.225 | 6.35 | 11.2 |
| L | 9.525 | 1.91 | 3.61 |
| XL | 5.08 | 1.27 | 2.3 |
| 3M | 3 | 1.21 | 2.4 |
| 5M | 5 | 2.1 | 3.7 |
| 8M | 8 | 3.38 | 5.6 |
| 14M | 14 | 6.1 | 10 |
| S3M | 3 | 1.14 | 2.9 |
| S5M | 5 | 1.85 | 3.35 |
| S8M | 8 | 3.05 | 5.3 |
| S14M | 14 | 5.3 | 10.2 |
| RPP5M | 5 | 2.05 | 3.8 |
| RPP8M | 8 | 3.2 | 5.4 |
| RPP14M | 14 | 5.85 | 9.7 |
