White Type B modular plastic conveyor belt
Type B is a white modular plastic belt with a slotted module surface, as shown in the product photograph. Match the module geometry, hinge arrangement and drive sprockets when selecting a belt for an existing conveyor.
| Item | Details |
|---|---|
| Type | B |
| Material category | Plastic |
| Colour | White |
| Surface | Slotted module surface |
| Construction | Interlocking modules |
Send a module sample or dimensioned drawing and the required belt width and length.
Match the belt to the conveyor
Compare the module pitch, overall thickness, hinge-pin dimensions and underside drive geometry with the existing belt. Specify the installed sprocket type and the required belt dimensions so the replacement can be selected as a compatible system.
Conveyor-system reference
The following figures describe a modular-belt conveying-system range. They are system-level references, not the Type B belt’s thickness, allowable tension or load rating. The final conveyor arrangement depends on the selected belt, drive and support structure.
| Item | Details |
|---|---|
| Conveyor length | 3–10 m |
| Conveyor height | 700–1000 mm |
| Effective conveying width | 600–1000 mm |
| System load reference | 50 kg/m |
| Variable conveying speed | 10–20 m/min |
| Frame options | Plastic / 304 stainless steel |

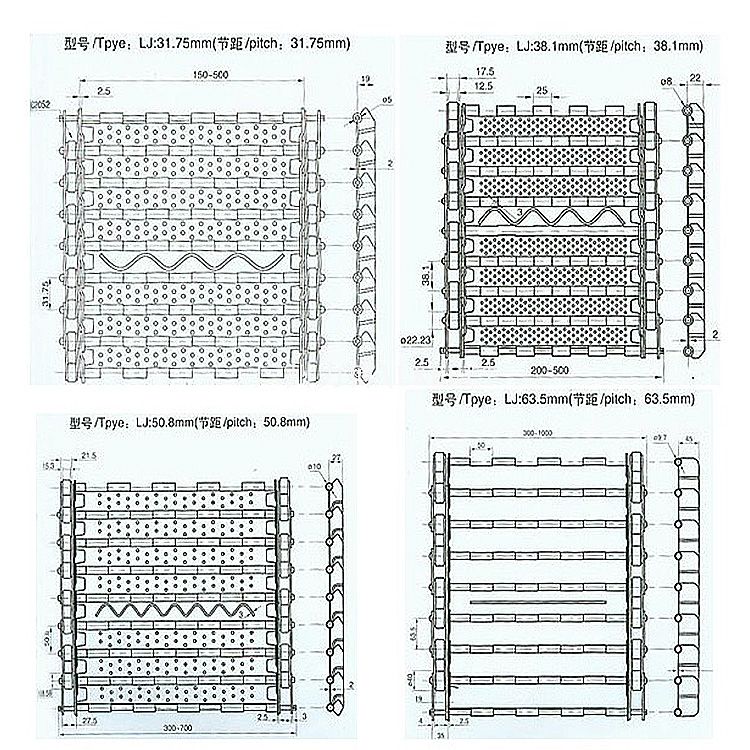

Modular-belt drawing reference
This drawing sheet shows several module geometries. Compare the dimensions and drive arrangement with the required belt; the drawing options do not identify the pitch of every Type B configuration.
Application and material selection
Modular conveying systems are used in packing, beverage and food-processing lines, as well as other production equipment. Select the belt material and arrangement for the product being carried, cleaning method, working temperature and load.
For direct food contact, specify the food type, contact temperature and destination-market requirements. Request the applicable material declaration for the selected belt configuration.
Information for a Type B enquiry
| Item | Details |
|---|---|
| Module identification | Existing belt series, module sample or photographs of both faces |
| Geometry | Pitch, thickness, hinge-pin dimensions and module width |
| Belt dimensions | Finished belt width and length |
| Drive | Sprocket details, shaft arrangement and conveyor speed |
| Operating conditions | Product size, load, temperature and cleaning chemicals |
| Material requirements | Required resin, colour and food-contact documentation where applicable |
Request a Type B modular belt
Send the existing module details, required dimensions and quantity. For a new conveyor, include the conveyor drawing and operating requirements.
