| Item | Details |
|---|---|
| Product designation | E5U18 |
| Product type | Fabric conveyor belt |
| Belt dimensions | Width, finished length and thickness |
| Electrical requirements | Specify the required resistance range and test method |
Send the belt reference, dimensions and operating requirements to request a quote.

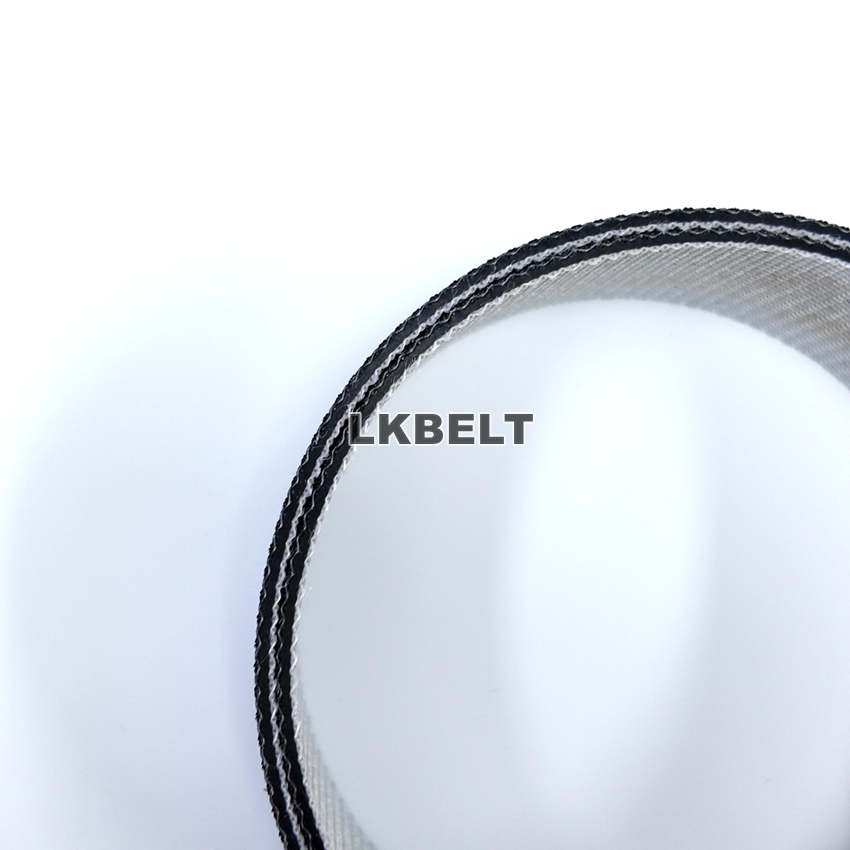

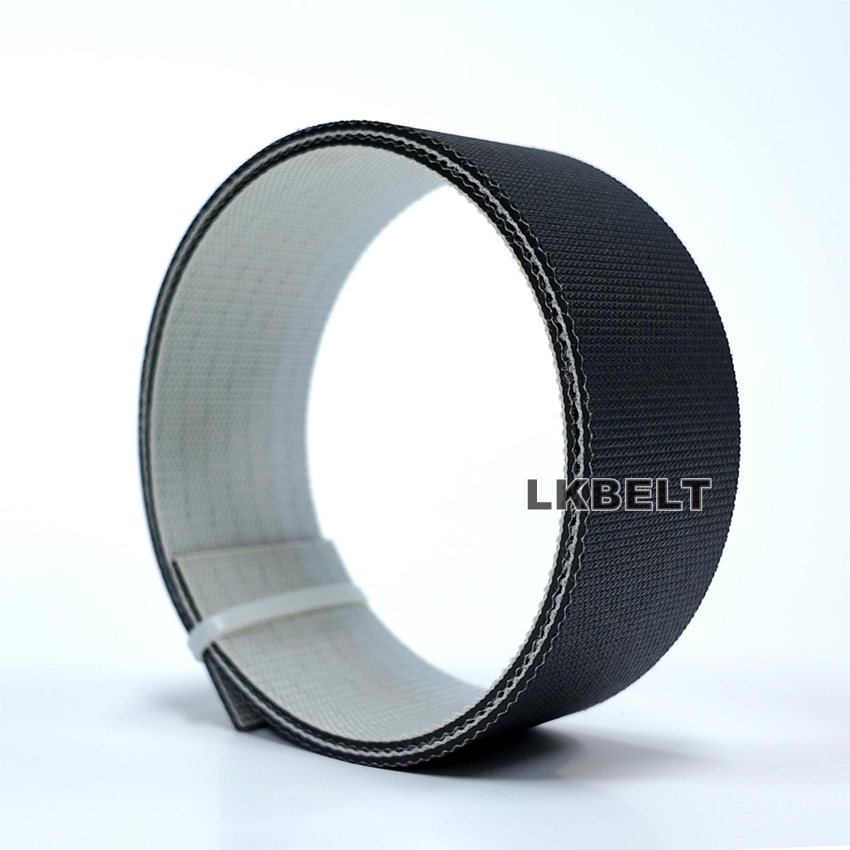

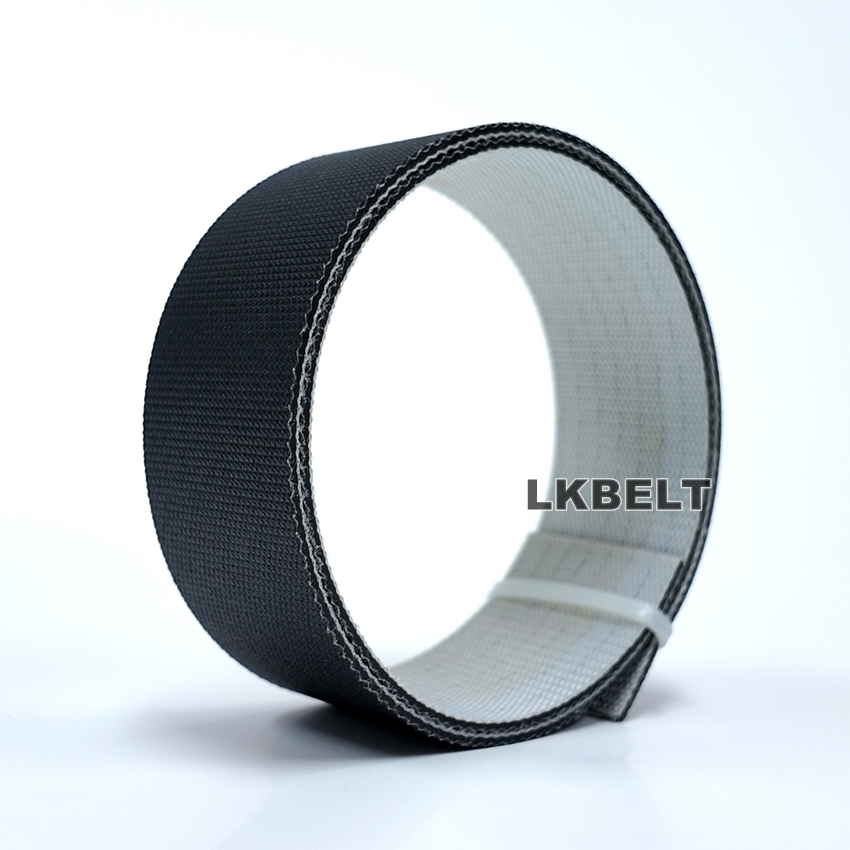

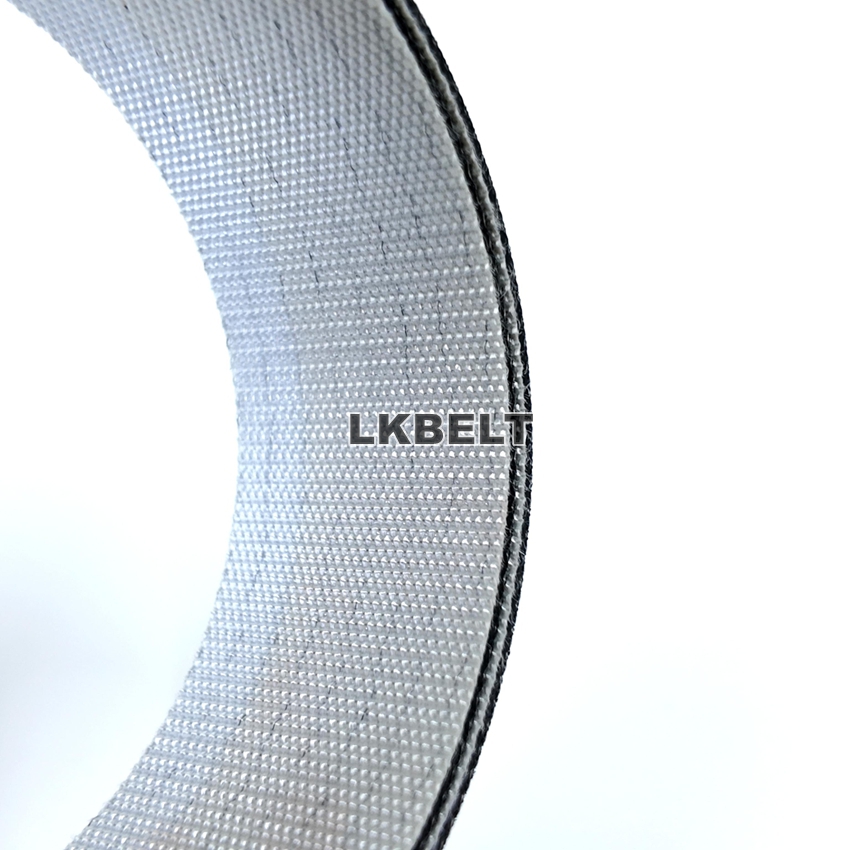

E5U18 fabric conveyor belt
For an E5U18 replacement, send the complete belt marking together with the required dimensions and the equipment details. Include the electrical requirements of the application when requesting a quotation.
Electrical requirements and installation
A belt marking alone does not describe the electrical behaviour required by a conveying system. Include the resistance specification used for the equipment, together with its grounding arrangement and working environment. For replacement orders, a drawing or labelled sample helps define the finished belt.
Details for your quotation
| Item | Details |
|---|---|
| Existing belt | Complete marking and photographs of the carrying face, underside and joint |
| Electrical specification | Required surface or volume resistance, test method and operating humidity |
| Conveyor arrangement | Pulley diameters, belt support, tensioning travel and tracking arrangement |
| Working conditions | Line speed, conveyed product, temperature and cleaning conditions |
| Finished construction | Joint type, guides, edge finishing and dimensional tolerances |
| Quantity | Number of belts and required delivery destination |
Replacement photographs
Include a full view of the existing belt, close-ups of both surfaces and edges, and a photograph of the joint and installation. Add the belt marking and a scale or dimensioned drawing where available.
