PVC conveyor belt with a white diamond pattern

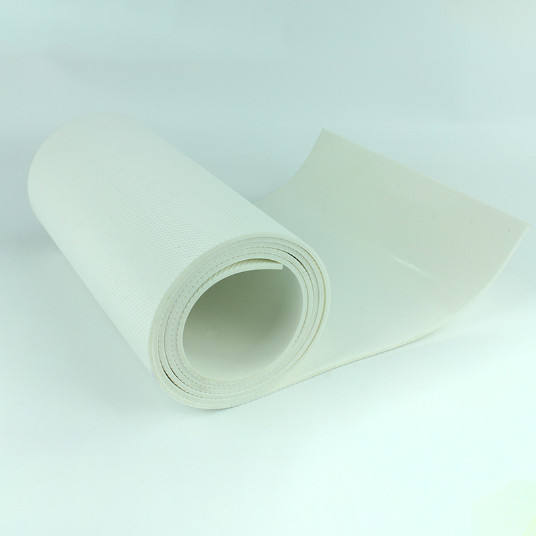

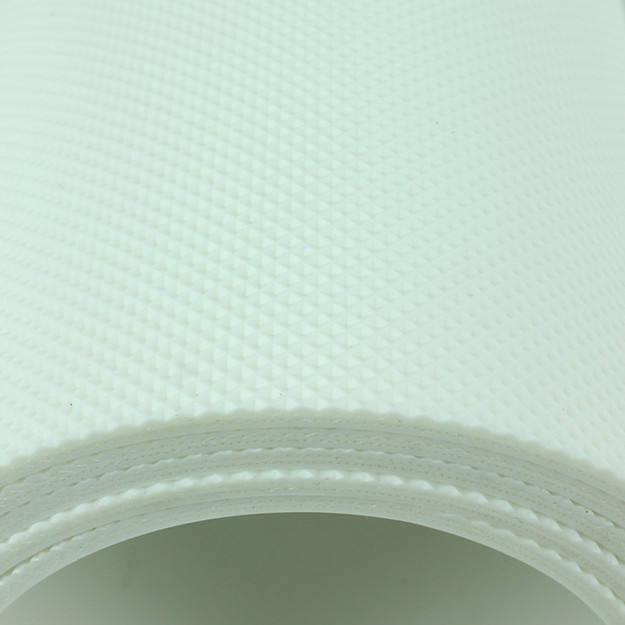

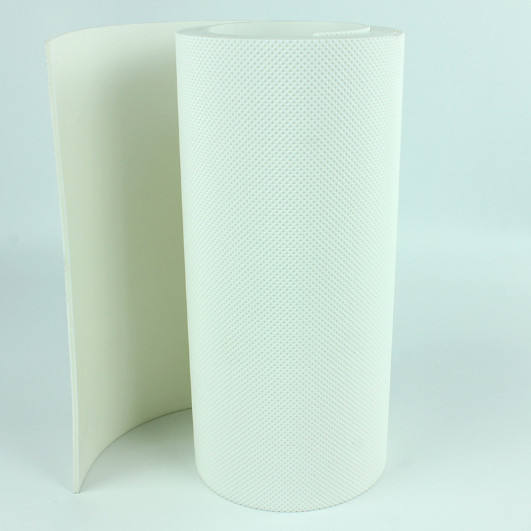

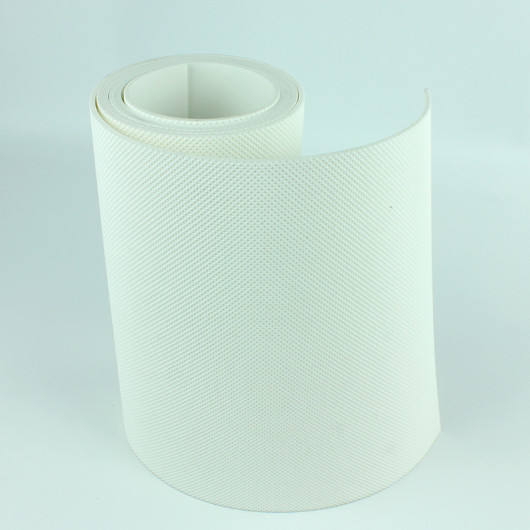

This white PVC conveyor belt has a fine diamond-pattern carrying surface, shown in the roll and close-up photographs. When ordering a white diamond pattern belt, specify the pattern dimensions together with the complete belt size and conveyor arrangement.
| Item | Product details |
|---|---|
| Product | White diamond pattern conveyor belt |
| Material | PVC conveyor belt |
| Surface | Fine diamond pattern |
| Colour shown | White |
| Order dimensions | Finished length, width, total thickness and pattern height |
Send the machine model, belt dimensions and quantity to request a quote.
Pattern and belt-edge details
Replacement-belt dimensions
| Detail | Information to provide |
|---|---|
| Machine | Manufacturer, model and conveyor arrangement |
| Belt dimensions | Finished length, width, total thickness and tolerances |
| Pattern dimensions | Diamond profile, height and spacing and a close-up of the existing surface |
| Installation | Pulley diameters, support bed, tracking guides and joint requirements |
| Conveying duty | Product material and size, speed, load, incline, temperature and cleaning method |
Match the surface and joint to the machine
Provide photographs of the carrying face, underside, edges and joint. Include any uneven wear, surface damage or tracking marks. Match the pattern height and spacing together with the complete belt thickness, conveyed product and conveyor clearances.
Specify the required joint and installation access. Finger and stepped finger joints are selected for the belt construction and pulley arrangement. If a guide is required on the underside, show its profile and position on the drawing.
Food-contact and cleaning requirements
For direct food contact, specify the food type, contact temperature, cleaning chemicals and required compliance documentation. Request documents for the selected material and finished belt, including the joint and any attachments. Describe the washdown method and cleaning frequency so the complete belt construction can be matched to the process.
PVC pattern-belt range reference
The following models are other PVC pattern-belt options. Their dimensions are separate from this white diamond pattern belt. Choose the required surface and finished construction for your machine. Scroll the table sideways on smaller screens.
| Type / range | Thickness (mm) | Colour | Layers | Pattern |
|---|---|---|---|---|
| PB22-A18 | 2.2 | Green | 2 | Diamond |
| PB50-A35 | 5.0 | Grey / white | 2 | Fishbone |
| PB60-3M-H | 6.0 | Dark green | 3 | Seaweed |
| PB52-A40 | 5.2 | Green | 2 | Grass |
| PB35-A32 | 3.5 | Green | 2 | Pinstriped |
| PB6-YDG | 6.0 | Green / white | 2 | Embossed dot |
| Golf-pattern range | 2.5 | Dark green | 2 | Golf |
| PB22-A18-W-FDA | 2.2 | White | 2 | Diamond |
Request a white diamond pattern belt
Send the machine model, belt drawing or sample, finished dimensions and required quantity. Include the conveyed product details and any surface or joint requirements so the replacement can be matched to the conveyor.
