Conveyor belt with transverse baffles

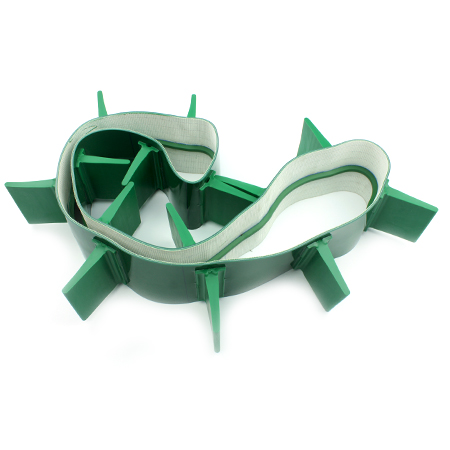

This belt has green transverse baffles and a fabric underside. Specify the baffle height and spacing together with the base-belt dimensions for packaging and other conveying applications. The finished assembly must fit the machine clearances and pulley arrangement.
| Item | Product details |
|---|---|
| Product | Conveyor belt with transverse baffles |
| Colour shown | Green carrying face |
| Attachments shown | Straight transverse cleats |
| Base belt | Specify material, thickness and finished size |
| Assembly layout | Baffle height, spacing and edge clearances |
Send your conveyor drawing, material details and quantity for a quote.
Assembly dimensions
| Component | Dimensions to specify |
|---|---|
| Base belt | Finished width, length, thickness and tolerances |
| Cleats or baffles | Profile, height, thickness, spacing and distance from the belt edges |
| Sidewalls | Required profile, height, position and clearance from the frame |
| Tracking guides | Underside guide profile and position, if required |
| Joint | Joint type, installation access and orientation relative to the attachments |
Match the belt to the conveyor
Provide the pulley diameters, incline angle, belt speed and support arrangement. Include the loading and discharge locations and the size and weight of the conveyed material. These details help define the space between attachments and their clearance around the pulleys and conveyor frame.
For a replacement, send photographs of the carrying surface, underside, cleat joints and belt joint. Include any damaged attachment, tracking marks or areas where material collects.
Operating and cleaning requirements
Specify the conveyed product, operating temperature and exposure to oils, dust or cleaning chemicals. If your machine requires electrostatic control, flame resistance or a particular contact standard, include the acceptance criteria with your enquiry.
Provide the cleaning method and any restrictions on the belt material or surface. Select the base belt, baffles and joint together for the operating conditions.
Request a custom belt assembly
Send a dimensioned sketch, machine model and required quantity. Mark all cleat positions, any sidewalls and underside guides on the drawing so the complete assembly can be matched to your installation.
