Cable shielding braid preparation equipment
The LK-sjd processes exposed shielding braid on cables. The illustrated operations loosen and brush the braid for folding back or trimming. Select the tooling and settings for the cable diameter, braid construction and required finished end.
| Item | Details |
|---|---|
| Model | LK-sjd |
| Application | Cable shielding braid brushing and cutting |
| Cable outside diameter | 3–19 mm |
| Retained shielding length | 3–20 mm, manually adjustable |
| Brush / reverse-brush length | 10–80 mm, CNC adjustment |
| Power supply | 220 V |
Send a cable sample or drawing and the required finished-end dimensions with your enquiry.

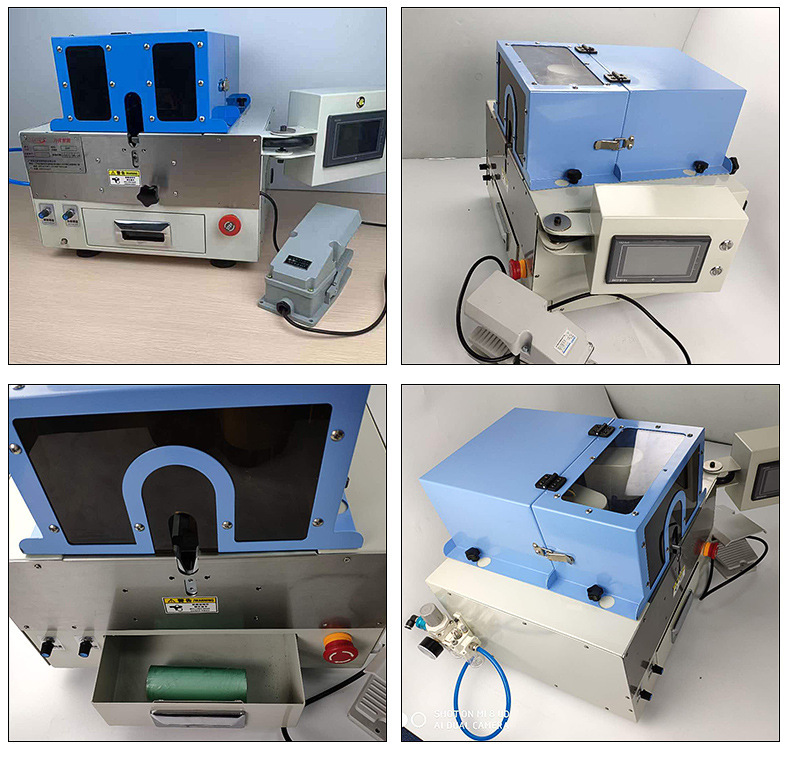

Machine arrangement
Processing options

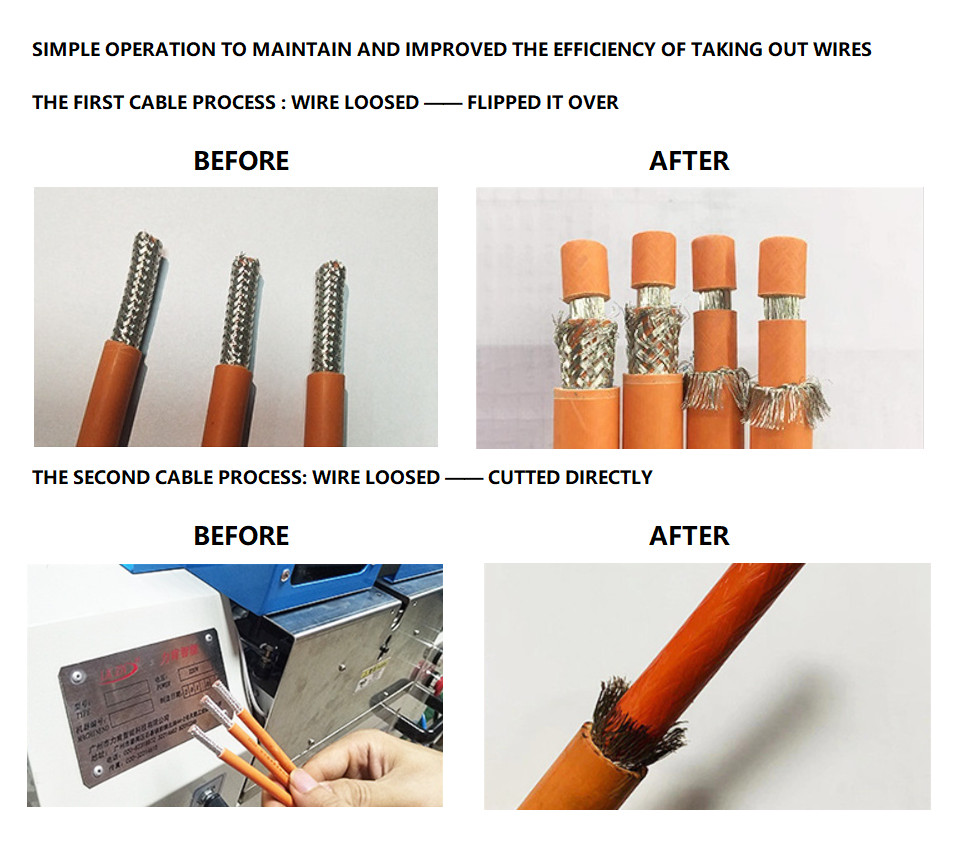

For a folded-back shielding end, the exposed braid is loosened and prepared for folding over the cable jacket. For a trimmed end, the braid is loosened before cutting to the required length. The sample photographs illustrate these two end-preparation routes.
View the original before-and-after cable samples
Controls and operating range
| Item | Details |
|---|---|
| Operator interface | 4.3-inch touchscreen with digital input |
| Retained shielding length | Manual adjustment from 3 to 20 mm |
| Brush / reverse-brush length | CNC adjustment from 10 to 80 mm |
| Cable outside diameter setting | CNC adjustment from 3 to 19 mm |
| Processing cycle | 5–13 seconds, depending on braid density and shielding length |
| Electrical supply | 220 V; specify the site supply configuration |
Processing time depends on the cable construction and the selected operation. Provide a representative cable sample when discussing the required output and finished-end quality.

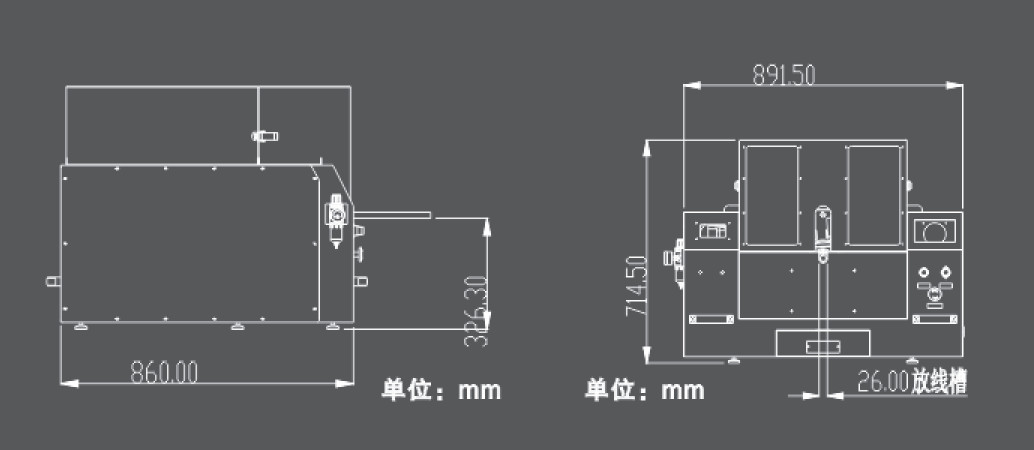

Installation drawing
Information for equipment selection
| Item | Details |
|---|---|
| Cable construction | Cable type, outside diameter, jacket material and shielding-braid construction |
| Finished end | Retained shield length, brushing length and whether the braid will be folded back or trimmed |
| Samples | Photographs of the original cable and required finished end, plus representative cable samples |
| Production requirement | Required output, product mix and expected changeover frequency |
| Site services | Electrical supply, available compressed-air supply and installation space |
| Tooling | Required cutting and brushing tooling, spare parts and maintenance needs |
Request LK-sjd equipment details
Send the cable specifications, finished-end drawing and production requirements. Include the installation location and available utilities so the equipment configuration can be discussed for your application.
