PE26-2M conveyor belt
This PE conveyor belt is identified as PE26-2M. The photographs show a white carrying face, a fabric underside and the belt edge. Use the full belt marking and finished dimensions when discussing a replacement.
| Item | Details |
|---|---|
| Model | PE26-2M |
| Belt type | PE conveyor belt |
| Colour | White |
| Underside | Fabric |
| Order dimensions | Finished length, width and thickness |
Send the full belt marking, dimensions and operating conditions with your enquiry.

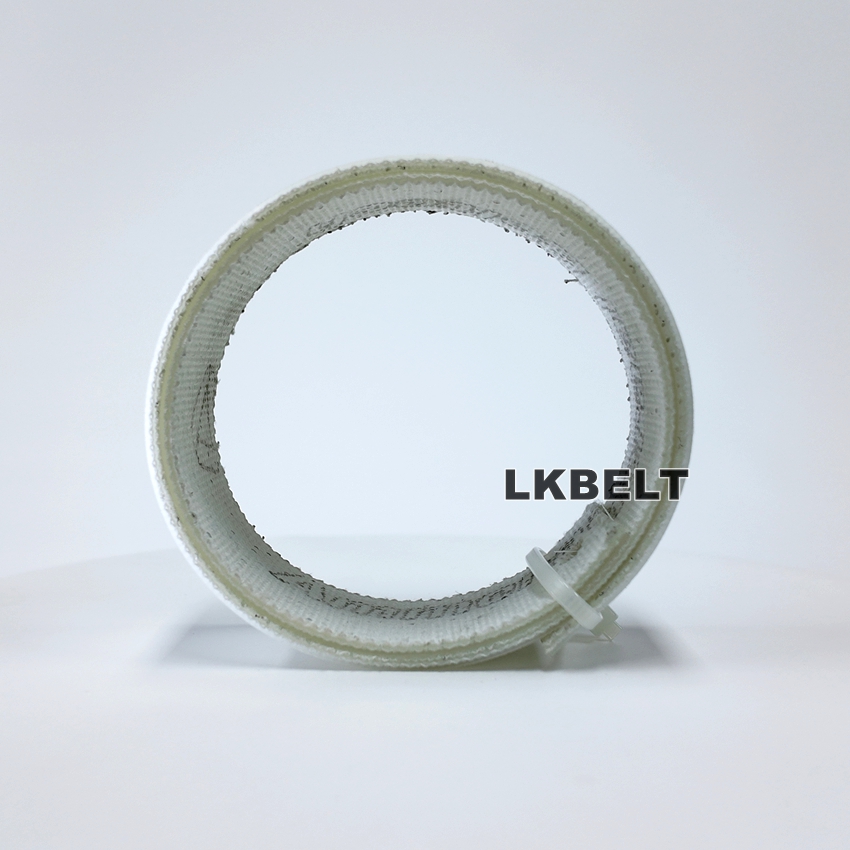

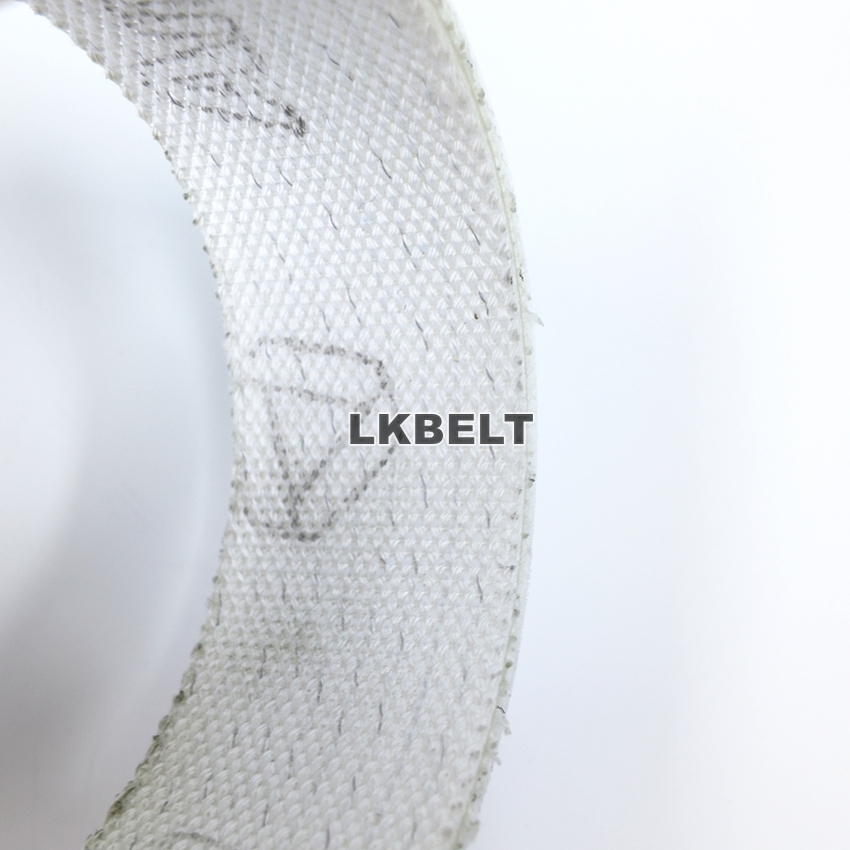

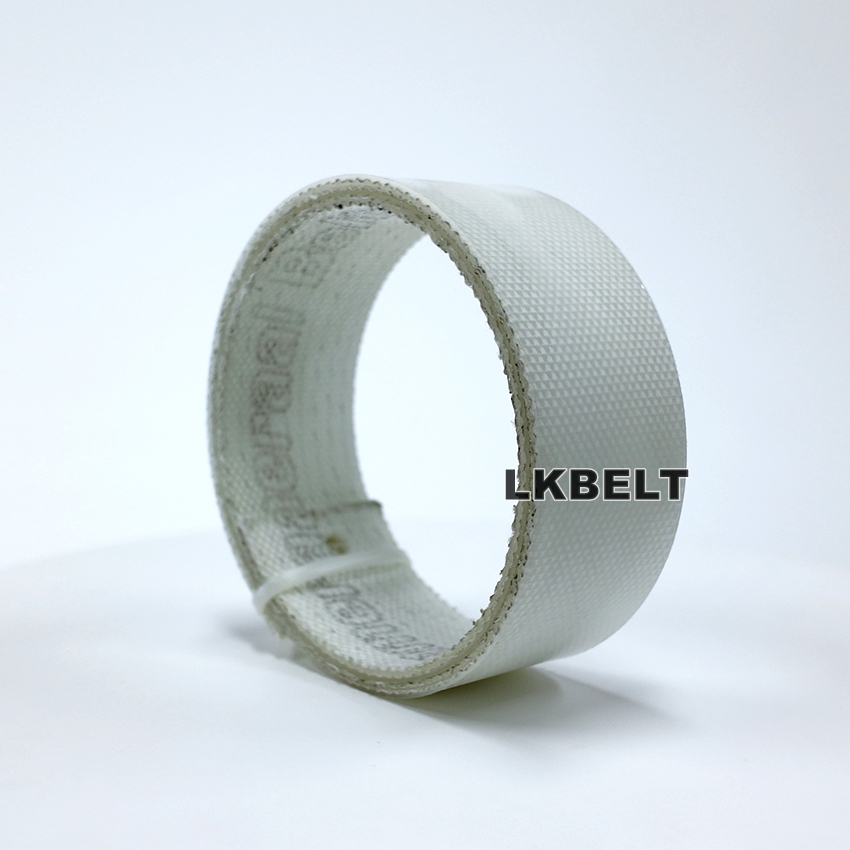

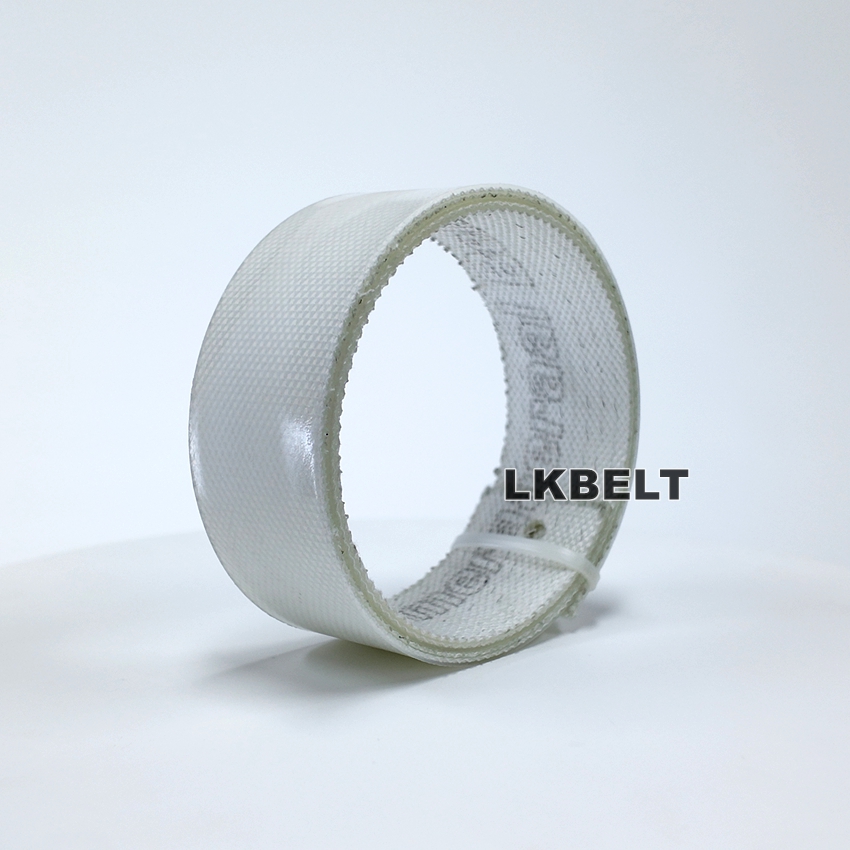

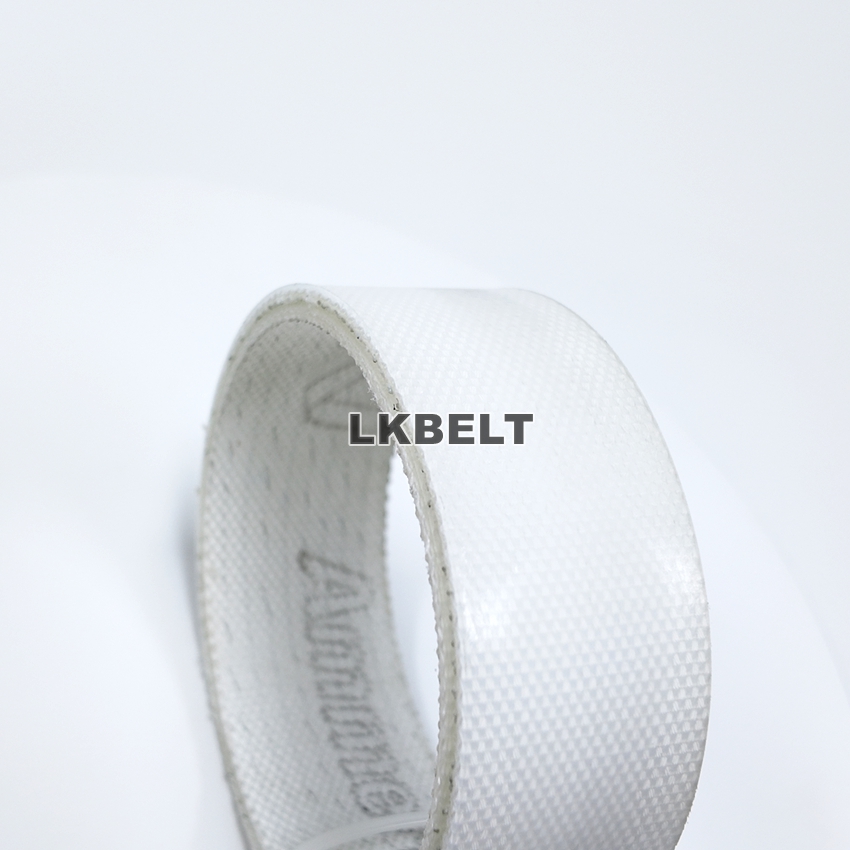

Product surface, underside and edge
Replacement dimensions and duty
| Item | Details |
|---|---|
| Identification | Full belt marking, supplier reference and any available technical sheet |
| Dimensions | Finished length, width, thickness and tolerances |
| Conveyor arrangement | Pulley diameters, support surface, belt route and tensioning travel |
| Product contact | Material being conveyed, contact temperature and any sticking or release requirements |
| Working conditions | Continuous and peak temperatures, exposure duration, moisture and cleaning agents |
| Joint and processing | Existing joint, installation access, guides or other attachments |
Surface and temperature requirements
Describe the conveyed material and the required release behaviour, together with the actual contact temperature and exposure time. These conditions should be considered with the selected belt construction and joint when discussing suitability.
Installation and processing
Include the existing joint method and pulley arrangement. If guides, cleats or other processing are needed, provide their dimensions and positions so the processing method can be selected for this belt construction.
Request PE26-2M belt details
Send the equipment details, full belt marking, required dimensions and quantity. For a replacement, include clear photographs of both faces, the edge and the installed belt.
