Black A40 grass-pattern PVC conveyor belt
This A40 PVC conveyor belt has a black raised grass-pattern carrying face. The photographs show the surface texture and sample edge. Specify the finished width, length, pattern dimensions and joint for the conveyor layout.
| Item | Product details |
|---|---|
| Belt type | A40 grass-pattern conveyor belt |
| Material | PVC conveyor belt |
| Carrying surface | Raised grass pattern |
| Colour | Black |
| Order dimensions | Finished length, width, total thickness and pattern height |
Send the model, belt dimensions and quantity to request a quote.

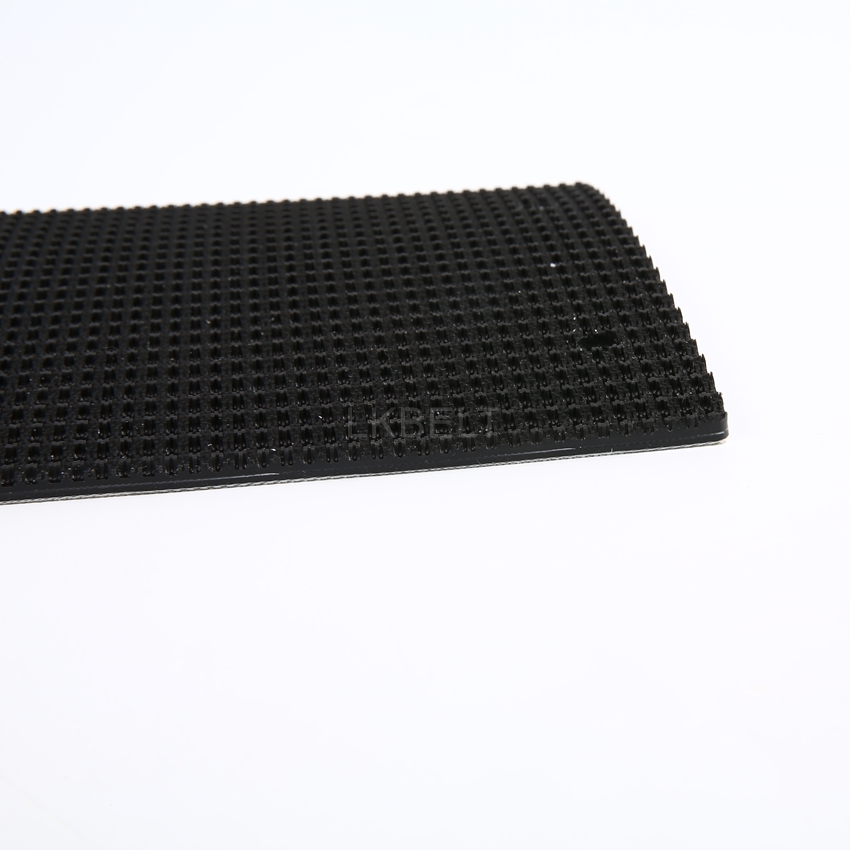

Surface and edge details
Dimensions for a replacement belt
| Detail | Information to provide |
|---|---|
| Finished belt size | Length, width, total thickness and dimensional tolerances |
| Pattern profile | Pattern height, spacing and orientation, with a close-up photograph or sample |
| Conveyor arrangement | Pulley diameters, support bed, belt speed and conveyor incline |
| Conveyed material | Product size, weight, temperature and cleaning conditions |
| Joint and tracking | Joint type, installation access and any underside guide dimensions |
Pattern selection and custom processing
Include the conveyed material, contact surface, load and conveyor incline when comparing textures. Send a sample or close-up of the existing pattern, particularly where slipping, product marking or cleaning access affects the application.
Guide bars, cleats and sidewalls can be discussed for custom assemblies. Include their dimensions, positions and clearance from the conveyor frame on your drawing. The base belt, joint and attachments need to be selected together for the pulley arrangement and conveying duty.
For an existing belt, send photographs of the top face, underside, joint and worn areas. Include the machine model and any tracking or conveying issues so the replacement specification can address the installation.
PVC pattern-belt range
Compare other pattern-belt options below. These are separate series models; their specifications do not define this black A40 grass-pattern belt. For this product, include the required finished dimensions with your enquiry. The table scrolls horizontally on small screens.
| Type / range | Surface material | Colour | Layers | Pattern |
|---|---|---|---|---|
| PB22-A18 | PVC | Green | 2 | Diamond |
| PB50-A35 | PVC | Grey / white | 2 | Fishbone |
| PB60-3M-H | PVC | Dark green | 3 | Seaweed |
| PB52-A40 | PVC | Green | 2 | Grass |
| PB35-A32 | PVC | Green | 2 | Pinstriped |
| PB6-YDG | PVC | Green / white | 2 | Embossed dot |
| Golf-pattern range | PVC | Dark green | 2 | Golf |
| PB22-A18-W-FDA | PVC | White | 2 | Diamond |
Request an A40 grass-pattern belt for your conveyor
Send your drawing or belt sample details, quantity and conveyor operating conditions. Specify whether you need an endless belt or an open length, together with any joint or guide requirements.
