PU Timing Belts ATP10

Category

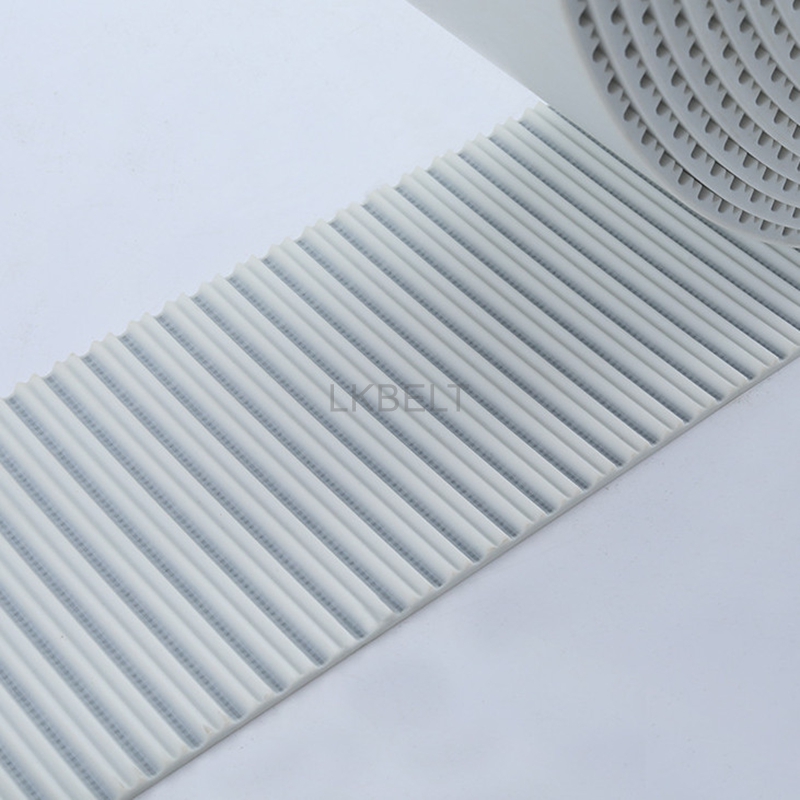

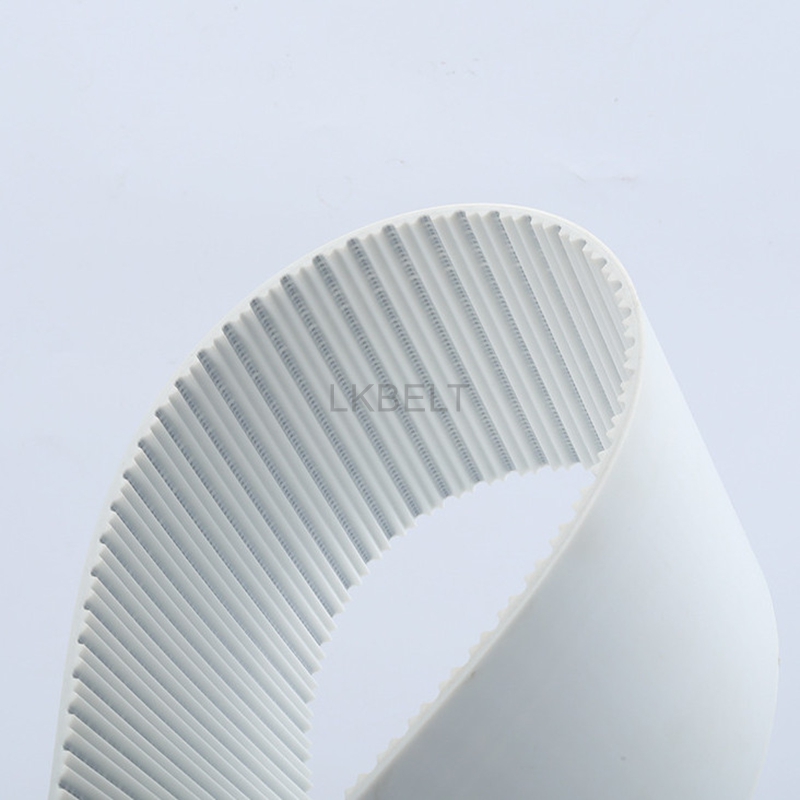

ATP10 PU timing belt

For the ATP10 PU timing belt, send a pulley drawing or an existing belt sample, together with the required width, finished length or tooth count. Matching the tooth profile to your machine helps us discuss the finished belt construction.

Item Product details
Designation ATP10
Product type PU timing belt
Tooth profile and pitch Match to your pulley drawing or belt sample
Width and finished length Specify in your inquiry

Please share your pulley drawing or belt sample so we can match the tooth profile for your machine.

What to send for a quote

Share the belt marking or machine model, belt width, finished length or tooth count, pulley profile, and photographs of the existing belt. State the operating conditions and any required backing or surface treatment so the final specification can be checked against the application.

Timing belt profile comparison

Compare the tooth profiles below. To choose a replacement, match the belt tooth profile to your pulley drawing or sample; dimensions for other profiles should not be used for your machine.

Profile Pitch (mm) Tooth thickness (mm) Belt thickness including teeth (mm)
T2.5 2.5 0.7 1.6
T5 5 1.2 2.2
T10 10 2.5 4.5
T20 20 5 8
AT5 5 1.2 2.7
AT10 10 2.5 4.5
AT20 20 5 8
H 12.7 2.29 4.29
XH 22.225 6.35 11.2
L 9.525 1.91 3.61
XL 5.08 1.27 2.3
3M 3 1.21 2.4
5M 5 2.1 3.7
8M 8 3.38 5.6
14M 14 6.1 10
S3M 3 1.14 2.9
S5M 5 1.85 3.35
S8M 8 3.05 5.3
S14M 14 5.3 10.2
RPP5M 5 2.05 3.8
RPP8M 8 3.2 5.4
RPP14M 14 5.85 9.7
Timing belt profile chart; open for larger view
Timing belt profile illustration. Click the image for a larger view.

Preparing an ATP10 timing belt order

A pulley drawing or marked belt sample is the starting point for an ATP10 request. Confirm the required profile, width, finished length or tooth count, then show any requested backing, holes or guides on the drawing. A general profile chart cannot replace the dimensions of your actual belt.

Our workshop footage shows material cutting, guide preparation, punching and joining across the LKBELT belt range. The operations selected for an order depend on its confirmed construction and drawing. See our workshop and processing footage.
