Seat-pattern PVC conveyor belt

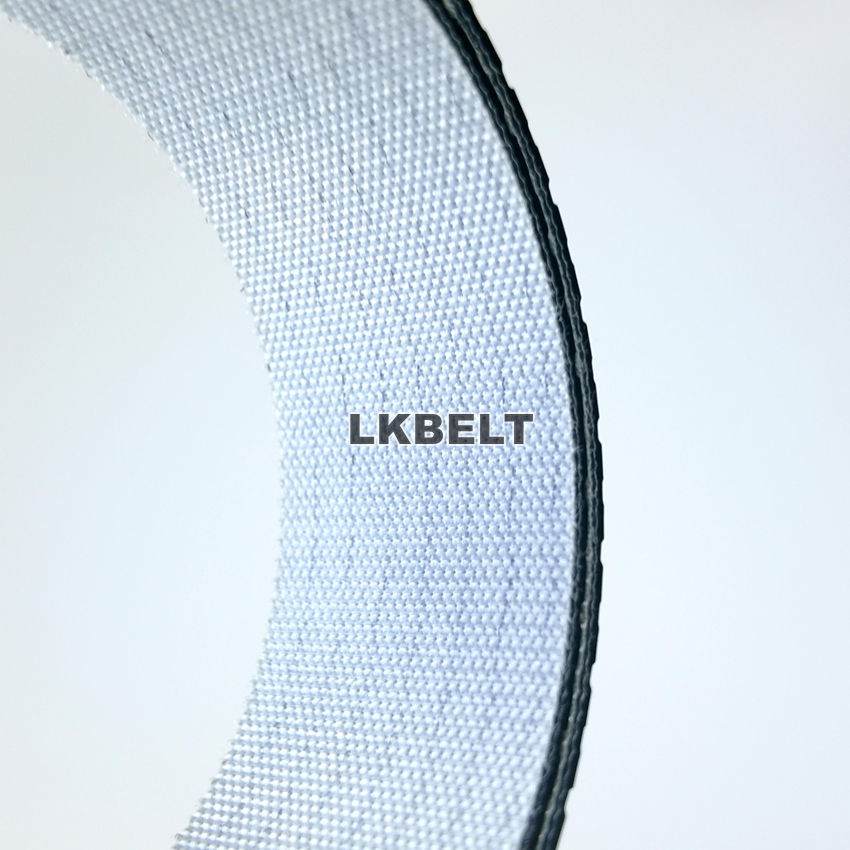

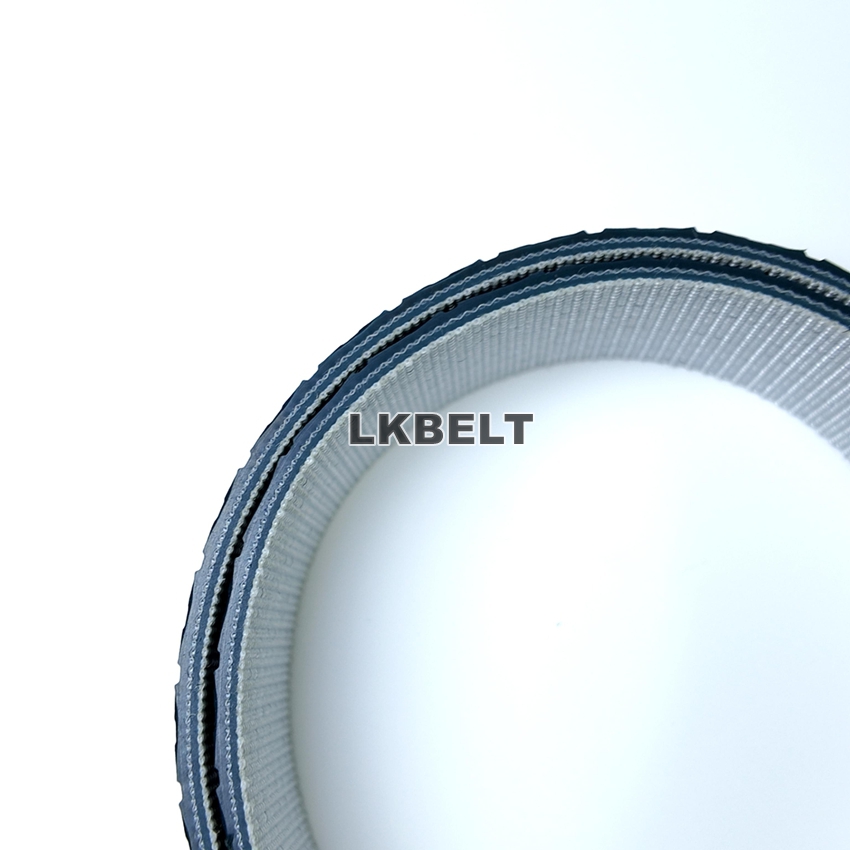

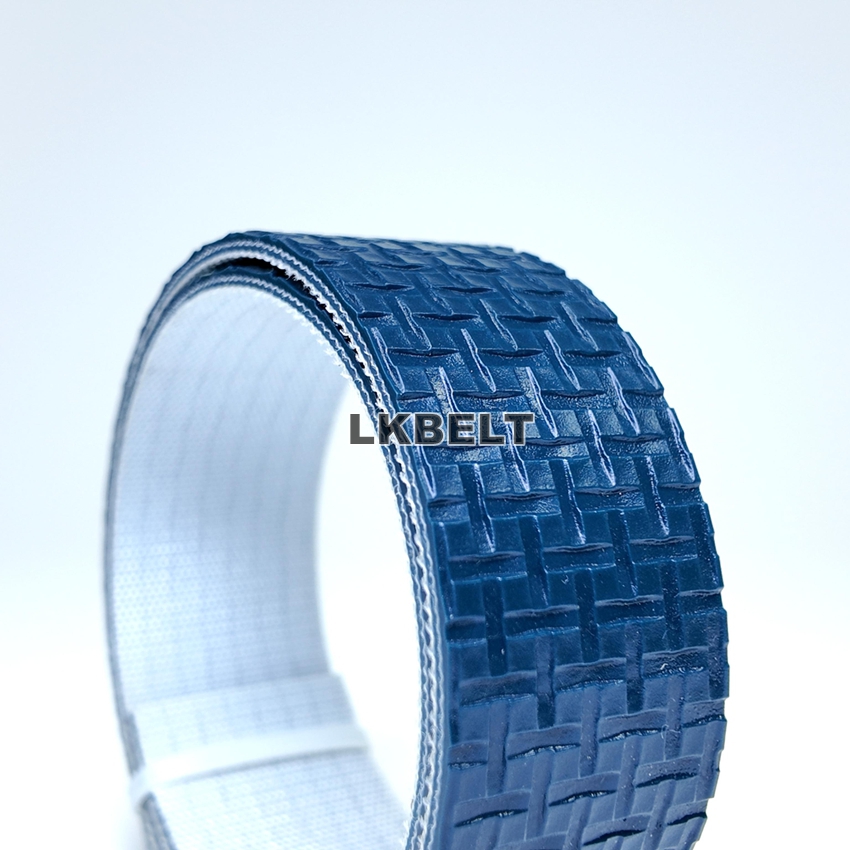

This PVC conveyor belt has a raised, interlocking seat pattern on the carrying face and a white fabric underside. The close-up photographs show the rectangular surface pattern and layered edge. Match the pattern dimensions, finished belt size and joint to your conveyor.
| Item | Product details |
|---|---|
| Belt type | Seat-pattern conveyor belt |
| 材料 | PVC conveyor belt |
| Carrying surface | Raised interlocking seat pattern |
| Underside | Fabric surface |
| Order dimensions | Finished length, width, total thickness and pattern height |
Send the model, belt dimensions and quantity to request a quote.
Surface, underside and edge details
Dimensions for a replacement belt
| Detail | Information to provide |
|---|---|
| Finished belt size | Length, width, total thickness and dimensional tolerances |
| Pattern profile | Pattern height, spacing and orientation, with a close-up photograph or sample |
| Conveyor arrangement | Pulley diameters, support bed, belt speed and conveyor incline |
| Conveyed material | Product size, weight, temperature and cleaning conditions |
| Joint and tracking | Joint type, installation access and any underside guide dimensions |
Joint and custom processing
Guide bars, cleats and sidewalls can be discussed for custom assemblies. Include their dimensions, positions and clearance from the conveyor frame on your drawing. The base belt, joint and attachments need to be selected together for the pulley arrangement and conveying duty.
For an existing belt, send photographs of the top face, underside, joint and worn areas. Include the machine model and any tracking or conveying issues so the replacement specification can address the installation.
PVC pattern-belt range
Compare other pattern-belt options below. These are separate series models; their specifications do not define this seat-pattern belt. For this product, include the required finished dimensions with your enquiry. The table scrolls horizontally on small screens.
| Type / range | Surface material | Colour | Layers | Pattern |
|---|---|---|---|---|
| PB22-A18 | PVC | Green | 2 | Diamond |
| PB50-A35 | PVC | Grey / white | 2 | Fishbone |
| PB60-3M-H | PVC | Dark green | 3 | Seaweed |
| PB52-A40 | PVC | Green | 2 | Grass |
| PB35-A32 | PVC | Green | 2 | Pinstriped |
| PB6-YDG | PVC | Green / white | 2 | Embossed dot |
| Golf-pattern range | PVC | Dark green | 2 | Golf |
| PB22-A18-W-FDA | PVC | White | 2 | Diamond |
Request a seat-pattern belt for your conveyor
Send your drawing or belt sample details, quantity and conveyor operating conditions. Specify whether you need an endless belt or an open length, together with any joint or guide requirements.
