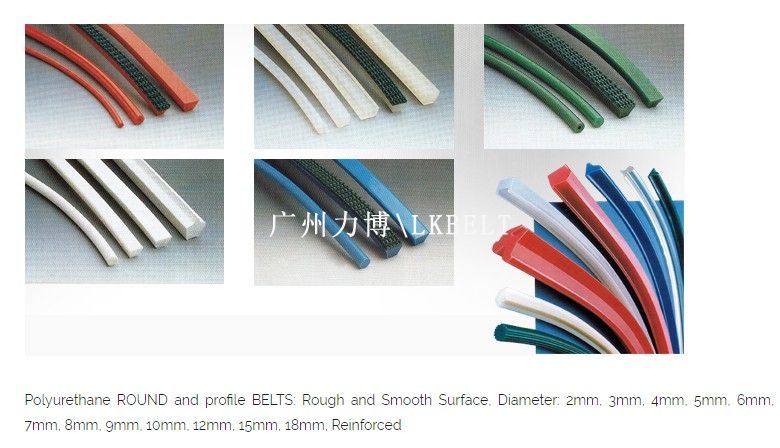

Polycord round belts made of high quality TPU are highly flexible, elastic, and able to flex in any direction. They offer a variety of surface structures. Polycord round belts can be made endless on the machine by butt-end welding of their ends. This permits easy installation and maintenance, with minimum downtimes. Polycord round belts have low creep and a long service life.
Specification:
| Items NO.Φ | Least radius of gyration | Stretching rate | Maximum tensile rate | Hardness | Length of rolled | ||
| DIA(mm) | In | mm | % | Kg | Lbs | Shore( A) | Length of rolled |
| 2mm | 0.79 | 20 | 1.5-3% | 0.3 | 0.7 | 95 | 400 |
| 2.5mm | 0.87 | 22 | 1.5-3% | 0.4 | 0.9 | 95 | 400 |
| 3mm | 0.98 | 25 | 1.5-3% | 0.7 | 1.6 | 90 | 400 |
| 3.5mm | 1.18 | 30 | 1.5-3% | 0.95 | 2.1 | 90 | 400 |
| 4mm | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 90 | 200 |
| 5mm | 1.57 | 40 | 1.5-3% | 2.0 | 4.3 | 90 | 100 |
| 6mm | 1.97 | 50 | 1.5-3% | 3.2 | 7.0 | 90 | 100 |
| 7mm | 2.17 | 55 | 1.5-3% | 4.1 | 9.0 | 90 | 100 |
| 8mm | 2.56 | 65 | 1.5-3% | 5.0 | 11.0 | 90 | 100 |
| 9mm | 2.95 | 75 | 1.5-3% | 6.8 | 15.0 | 90 | 50 |
| 10mm | 2.95 | 75 | 1.5-3% | 7.7 | 17.0 | 90 | 50 |
| 12mm | 3.94 | 100 | 1.5-3% | 12.2 | 27.0 | 90 | 30 |
| 15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39.0 | 90 | 30 |
| 18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56.0 | 90 | 30 |
| 20mm | 6.30 | 160 | 1.5-3% | 31.3 | 69.0 | 90 | 30 |
-
Type: round
-
Material: polyurethane
-
Application: hose
-
Other characteristics: elastic
